Driver Side Window Control Switch

Inspect the switch continuity between terminals. See Fig 1. If continuity is not as specified, replace the switch.

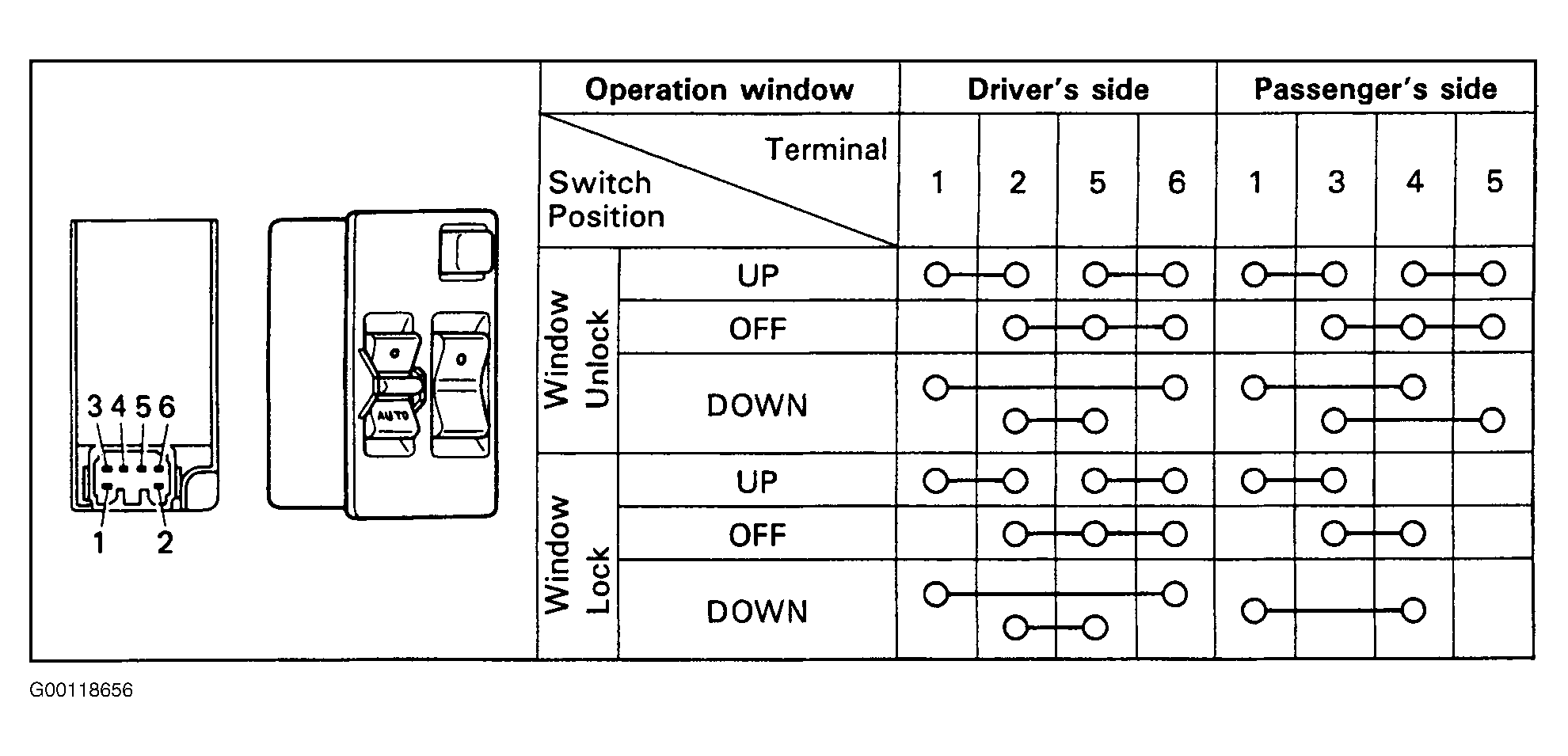

Fig 1: Testing Driver Side Power Window Switch Continuity
G00118656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
