Accelerator Pump Stroke Adjustment

Measure length of pump stroke. A standard stroke is 0.197-0.236" (5.0-6.0 mm). See Fig 1.

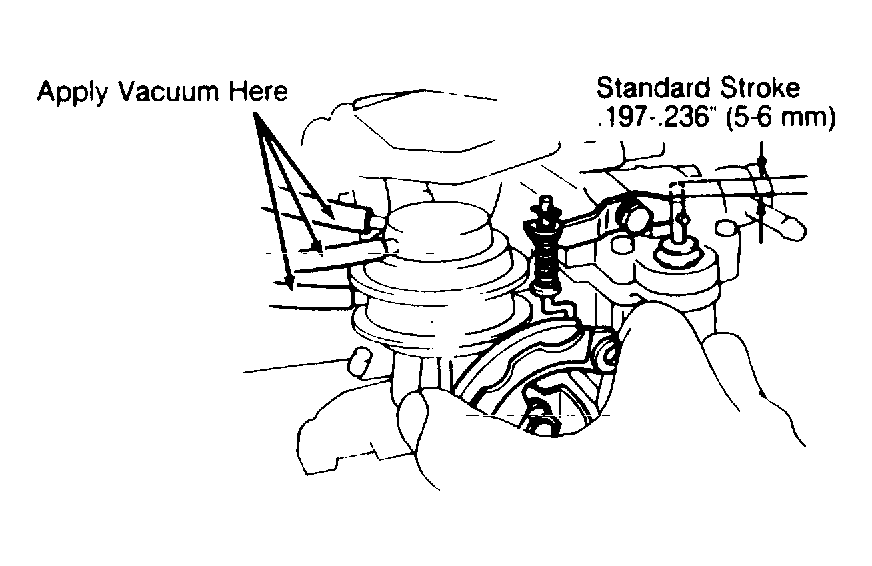

Fig 1: Checking Pump Stoke (Tercel)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Checking Throttle Position Switch Continuity (Tercel)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
