Engine Controls - System/Component Tests - 4-CYL CARBURETED: Testing: RESTRICTOR: Corolla

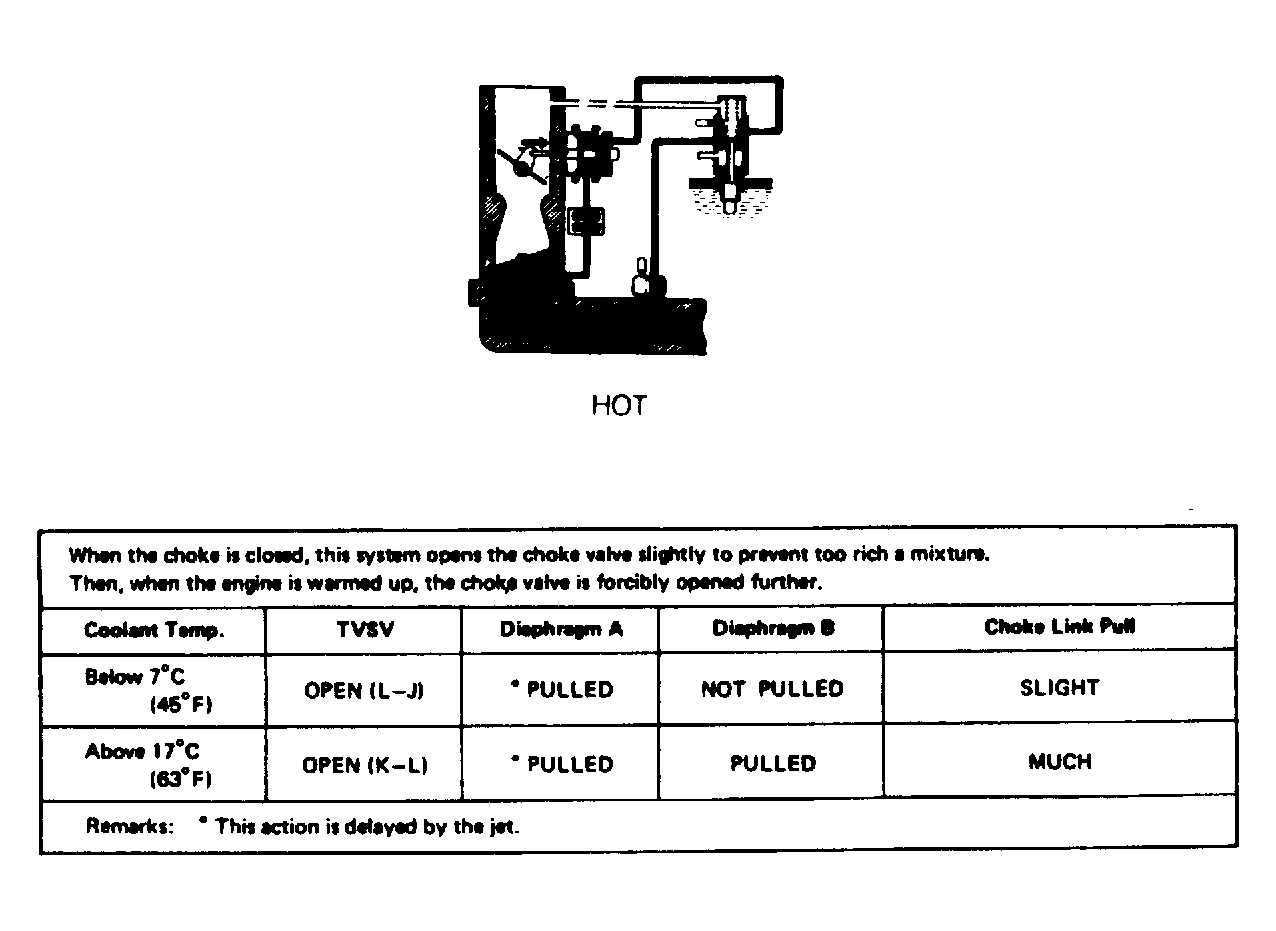

Check restrictor by applying air to each side of diaphragm. See Figure. Restrictor is located in vacuum hose going to choke breaker diaphragm "A". Check restrictor for blockage. If blockage is found replace restrictor.
