Code 14/Test 3 - Ignition Signal

NOTE: To check ignition system components, see IGNITION SYSTEMS in the I - SYS/COMP TESTING article in this section.
Fig 1: Test 3 or Code 14 - Ignition Signal Wiring Diagram
G90J22227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

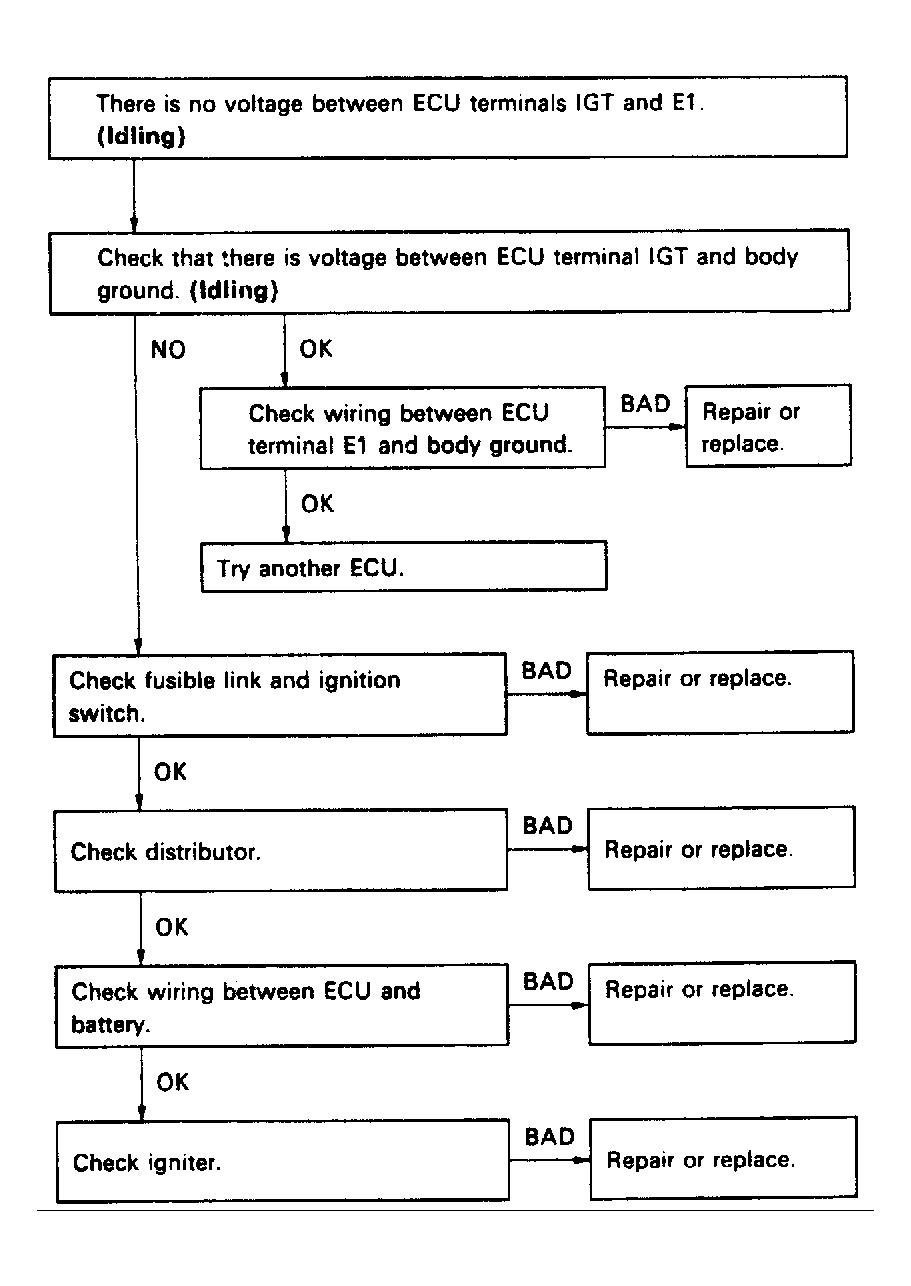

Fig 2: Test 3 or Code 14 - Ignition Signal Flow Chart
G90I18414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
