Code 21 - Oxygen (O2) Sensor Signal

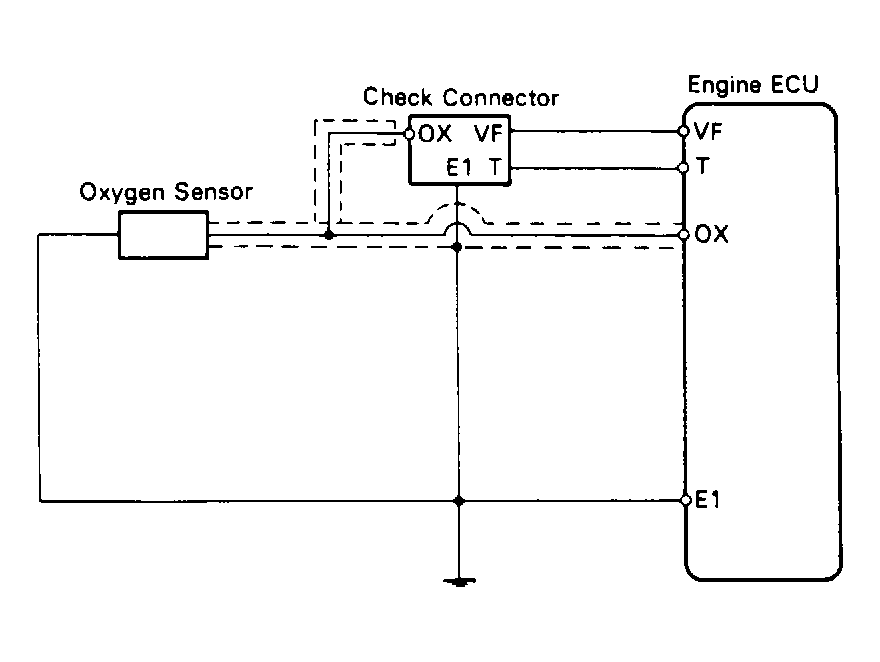

Fig 1: Code 21 - O2 Sensor Signal Wiring Diagram
G90A22228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

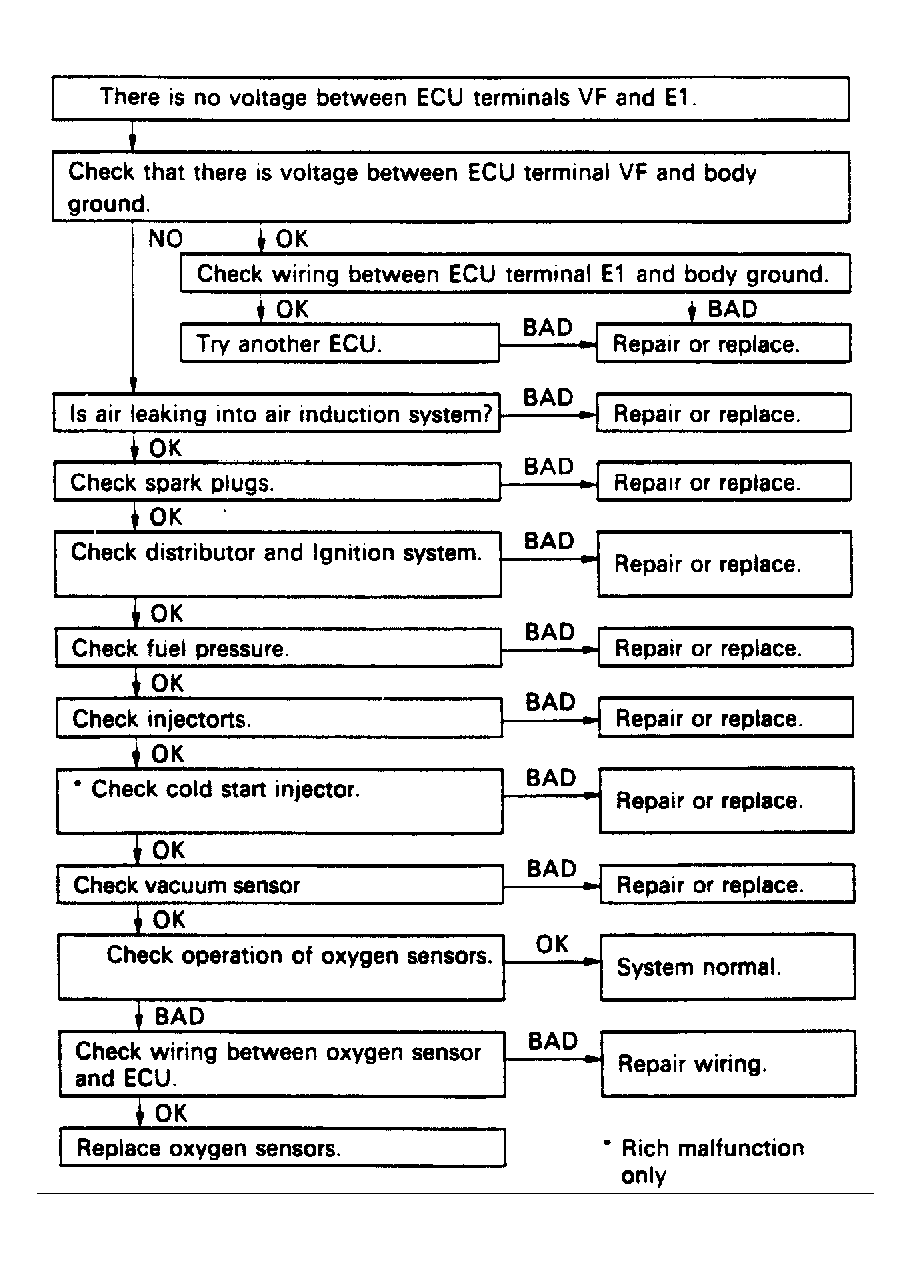

Fig 2: Code 21 - O2 Sensor Signal Flow Chart
G90D18419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
