Tercel DX, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes - CARBURETED
>>
Circuit Tests
>>
Test 11 - Charging System Circuit
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Test 11 - Charging System Circuit

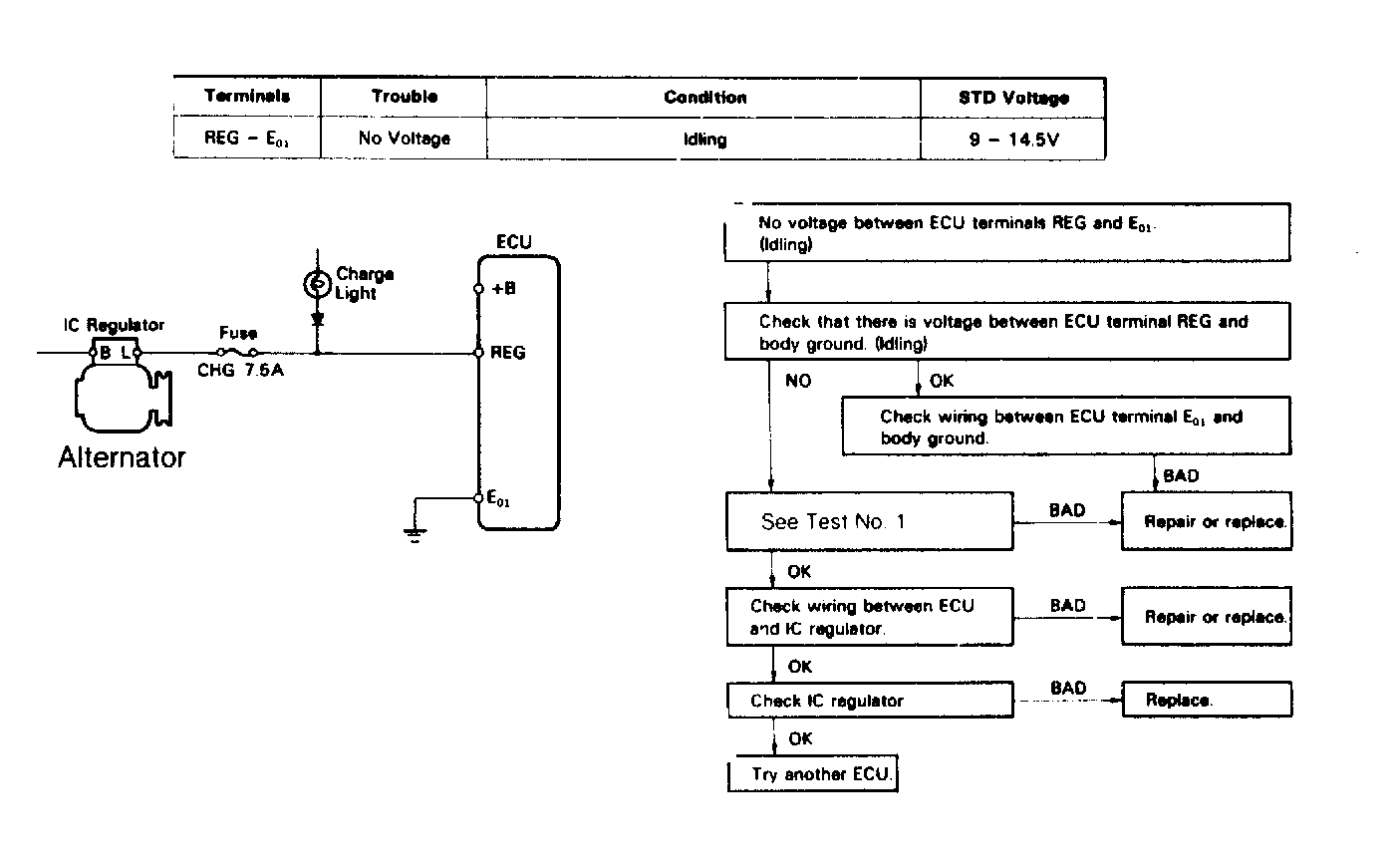

Fig 1: Test 11 Diagram & Flow Chart
