Test No. 14 - Check Engine Light Circuit

TEST NO. 14-CHECK ENGINE LIGHT CIRCUIT TROUBLE

Terminal Trouble Condition STD Voltage
W-E1 No Voltage No Trouble (Check Engine Light OFF) and Engine Running 10-14V
Fig 1: Test No. 14 Schematic Check Engine Light Circuit
G91J17706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

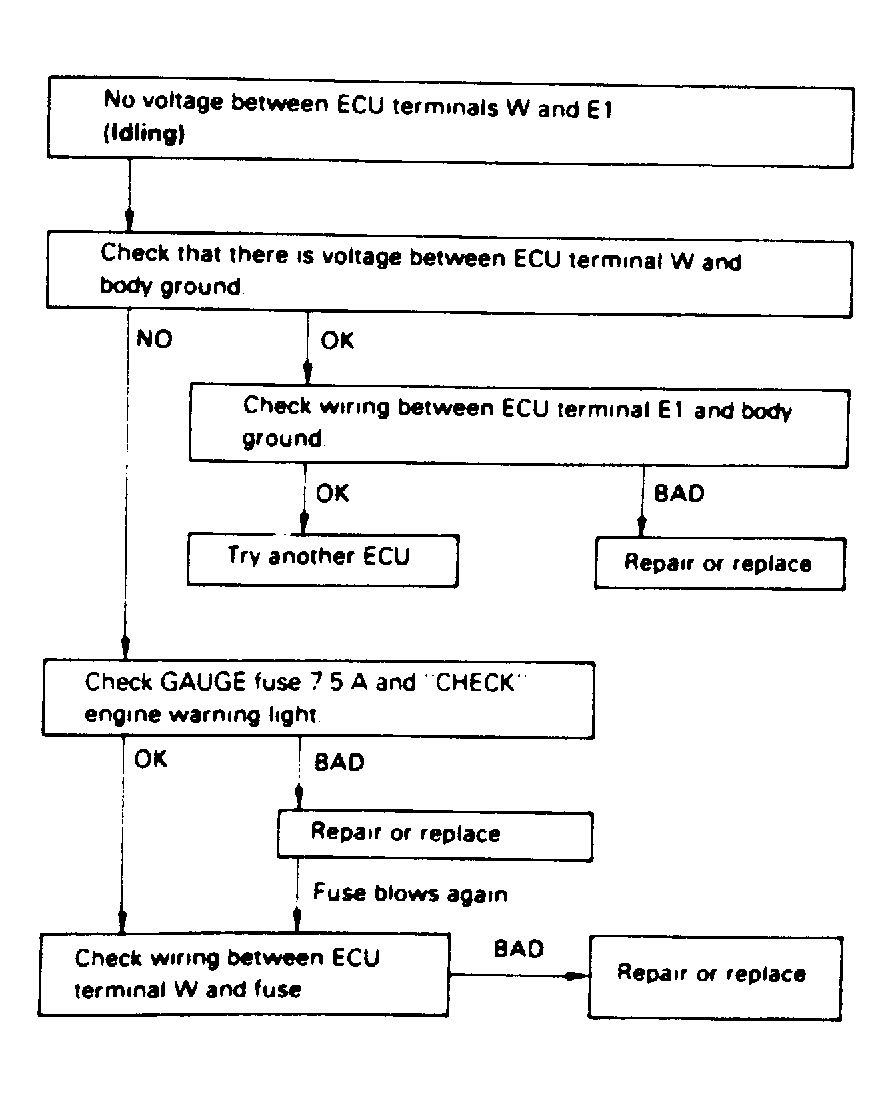

Fig 2: Test No. 14 Flow Chart Check Engine Light Circuit
G91A17707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
