Power Window Rear Window Switch

On convertible models, there is a switch on the center console to operate the rear side windows. This switch may be locked out of operation by the lockout button on the driver door. See Fig 1.

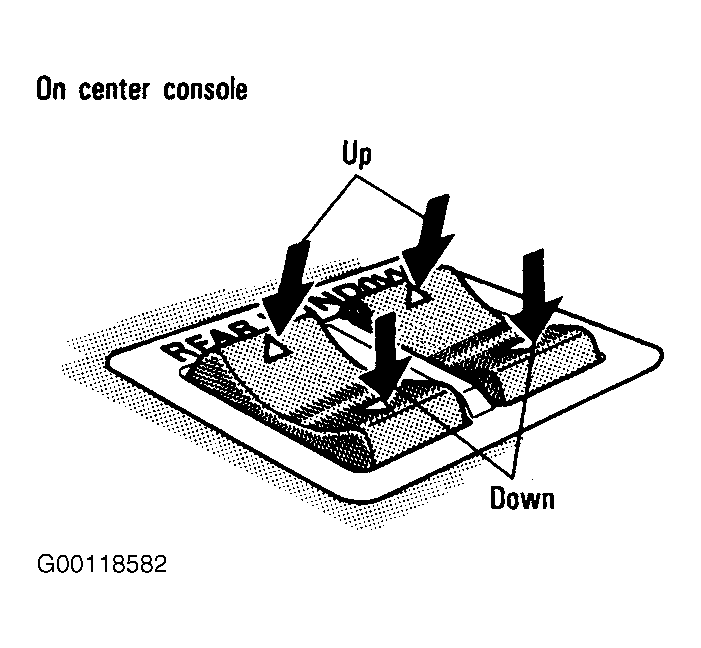

Fig 1: Operating Rear Side Windows (Convertible Only)
G00118582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
