Ecu Terminal Identification
CAUTION:
Perform all voltage measurements with ECU harness connector installed. Use a high-impedance DVOM (10,000-ohm minimum). Verify battery voltage is greater than 11 volts.

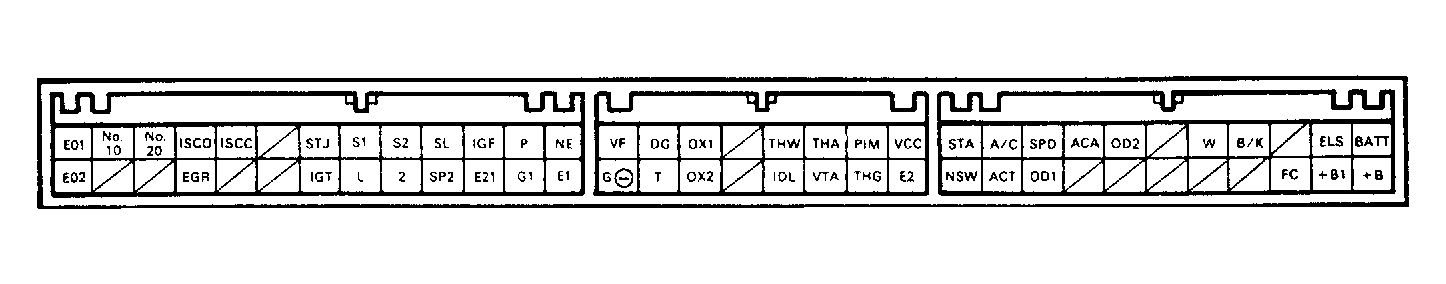

Fig 1: ECU Terminal ID (3S-GTE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

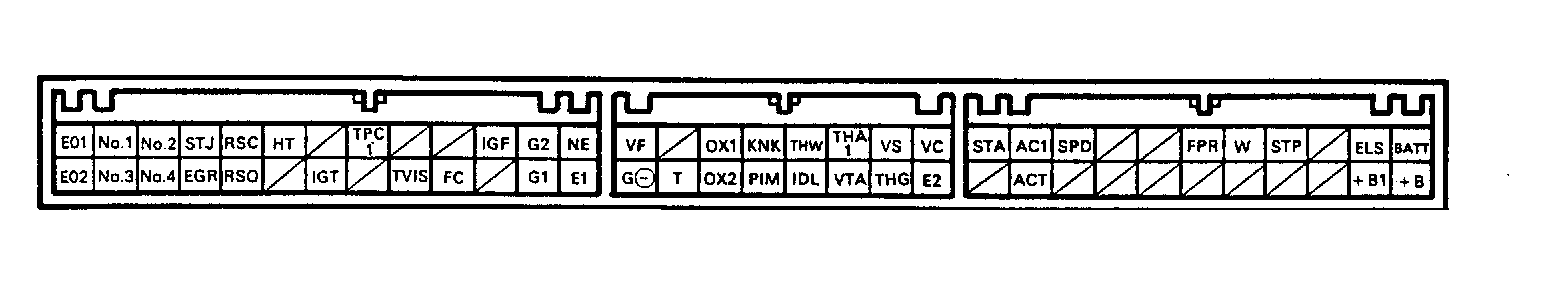

Fig 2: ECU Terminal ID (4A-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

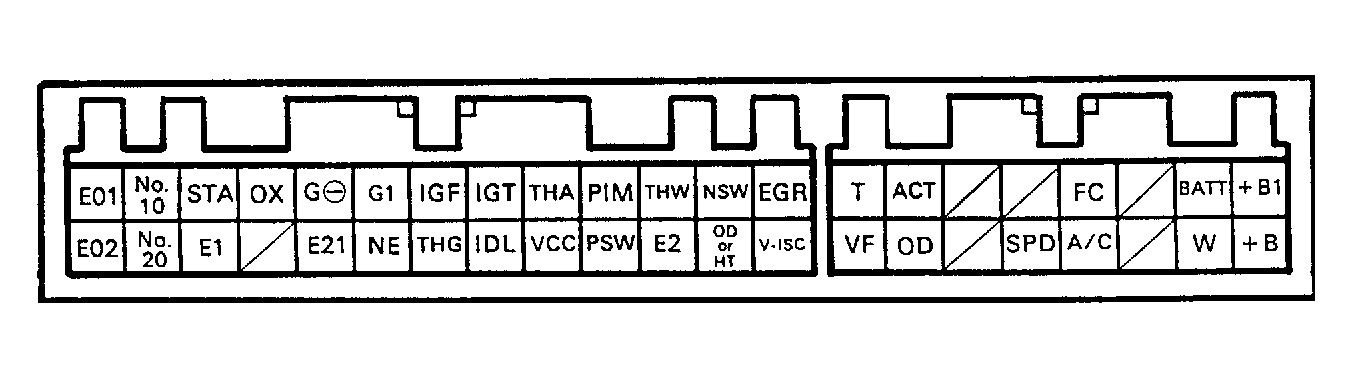

Fig 3: ECU Terminal ID (5S-FE W/ECT)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

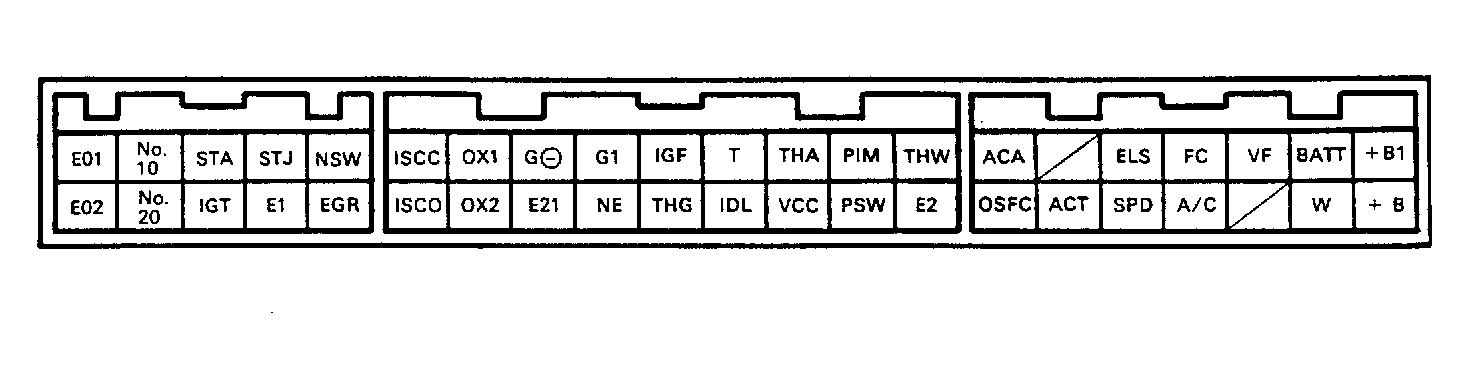

Fig 4: ECU Terminal ID (5S-FE W/O ECT)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
