Test No. 14 - Idle Speed Control Circuit

TEST NO. 14-IDLE SPEED CONTROL CIRCUIT TROUBLE

Terminal Trouble Condition STD Voltage
RSC-E1, RSO-E1 No Voltage Ignition Switch ON 8-14V

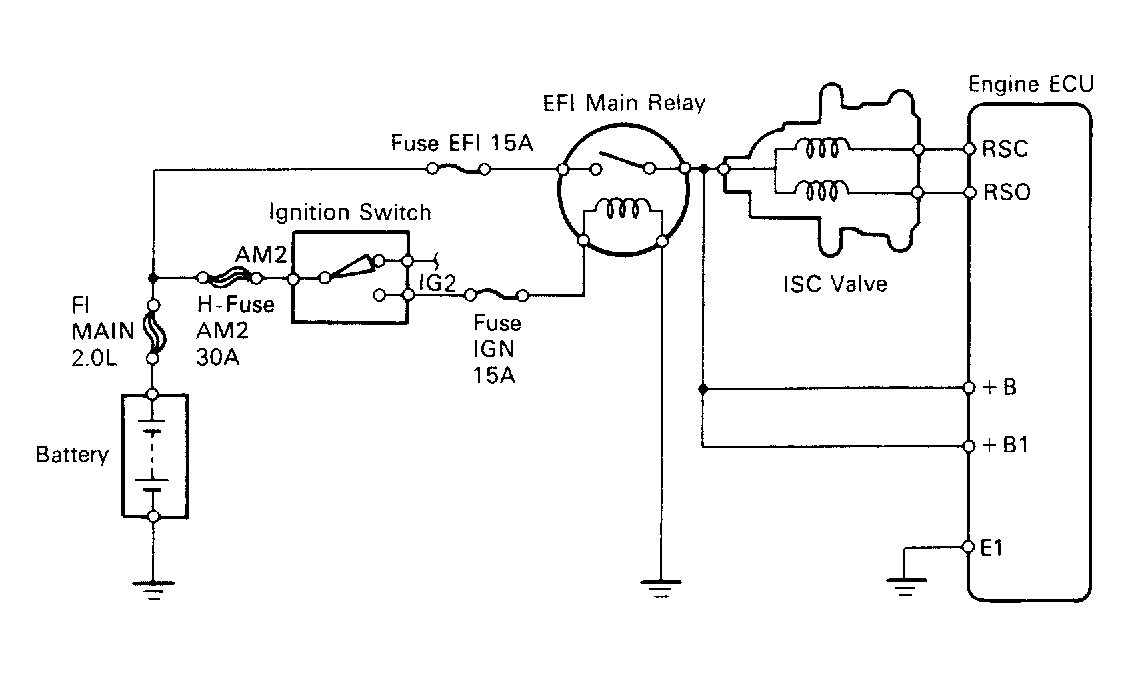

Fig 1: Test No. 14 Schematic (3S-GTE) Idle Speed Control Circuit
G91I17754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

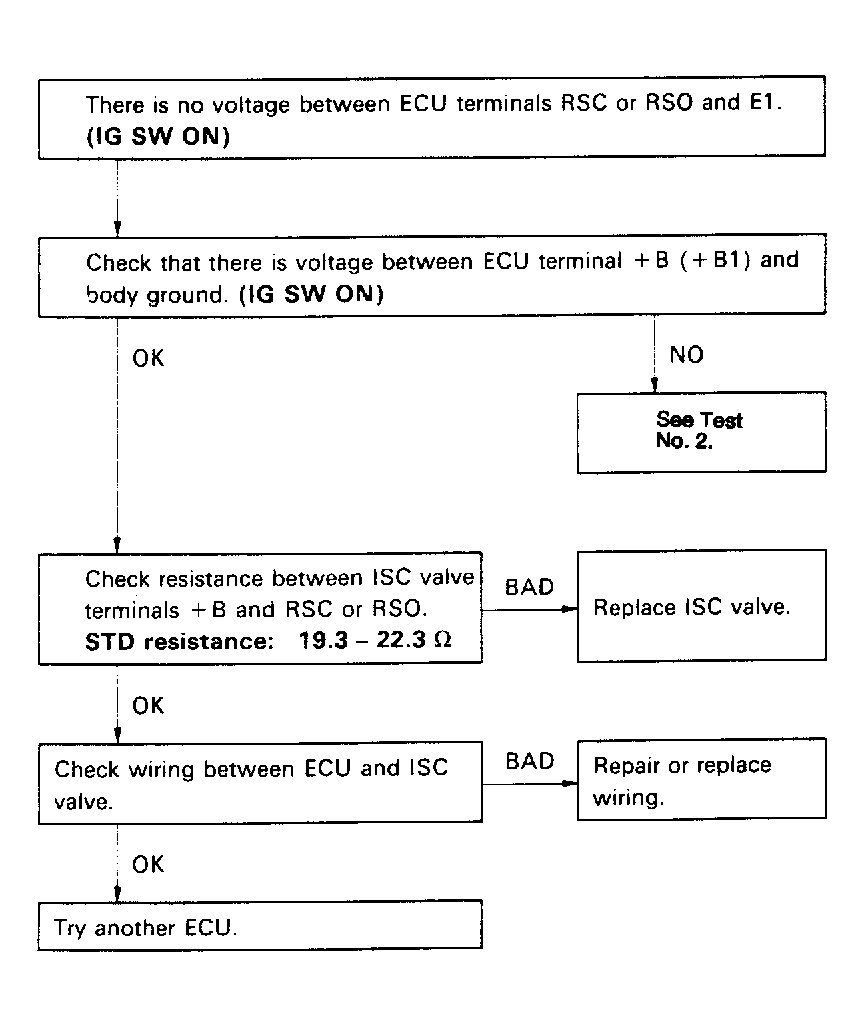

Fig 2: Test No. 14 Component Diagram (3S-GTE) Idle Speed Control Circuit
G91I18091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Test No. 14 Flow Chart (3S-GTE) Idle Speed Control Circuit
G91J17755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEST NO. 14-IDLE SPEED CONTROL CIRCUIT TROUBLE

Terminal Trouble Condition STD Voltage
ISCC-E1, ISCO-E1 No Voltage Ignition Switch ON 8-14V

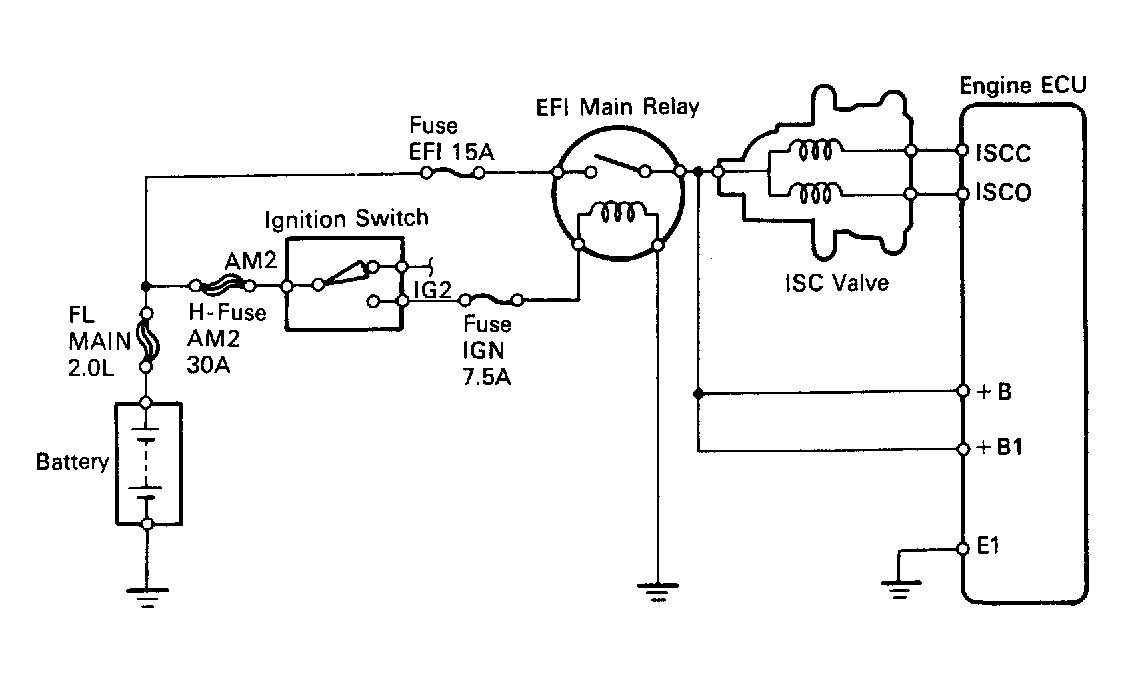

Fig 4: Test No. 14 Schematic (5S-FE) Idle Speed Control Circuit
G91A17756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

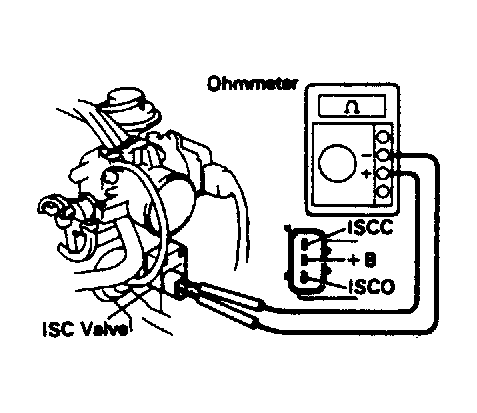

Fig 5: Test No. 14 Component Diagram (5S-FE) Idle Speed Control Circuit
G91C17758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

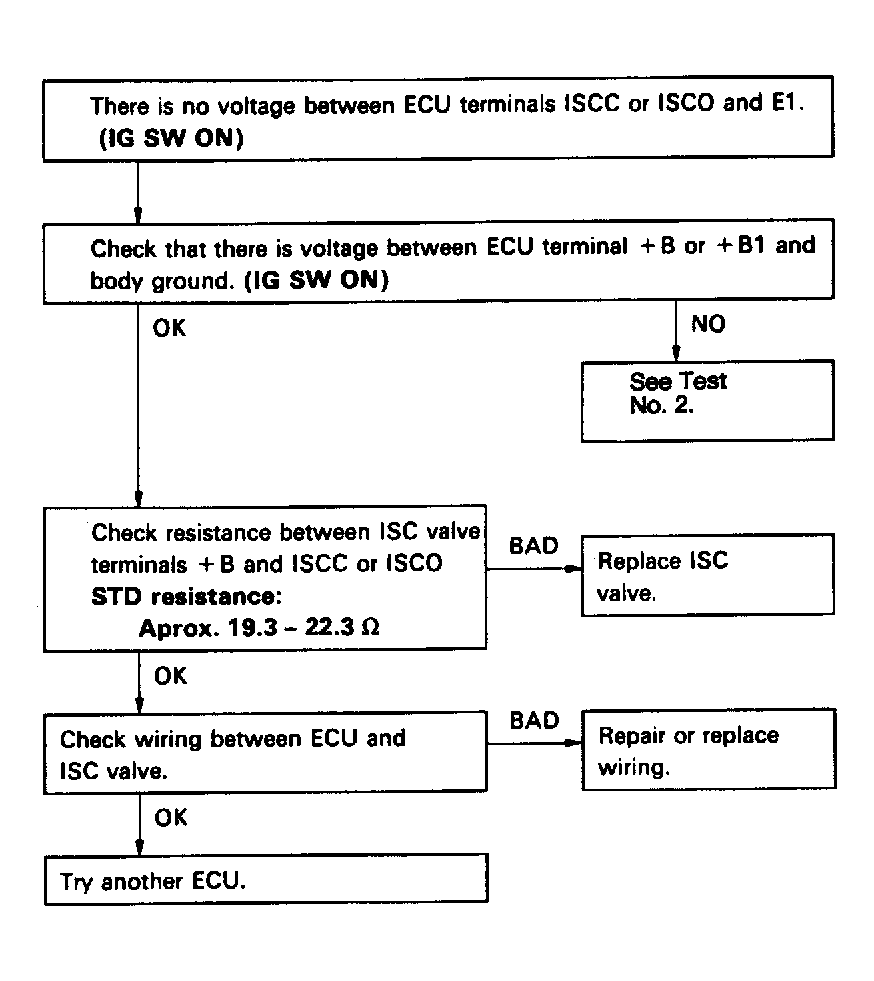

Fig 6: Test No. 14 Flow Chart (5S-FE) Idle Speed Control Circuit
G91B17757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
