Code 41/Test No. 8 - Throttle Position Sensor Signal

CODE 41/TEST NO. 8-TPS SENSOR SIGNAL TROUBLE

Terminal	Trouble	Condition	STD Voltage
IDL-E2	No Voltage	IG SW ON - Throttle Valve OPEN	4.5-5.5V
PSW-E2	"	IG SW ON - Throttle Valve CLOSED	4.5-5.5V

CODE 41/TEST NO. 8-TPS SENSOR SIGNAL TROUBLE

Terminal	Trouble	Condition	STD Voltage
IDL-E2	No Voltage	IG SW ON - Throttle Valve OPEN	10-14V
VTA-E2	"	IG SW ON - Throttle Valve CLOSED	0.1-1.0V
"	"	IG SW ON - Throttle Valve OPEN	4-5V
VCC-E2	"	All	4-6V

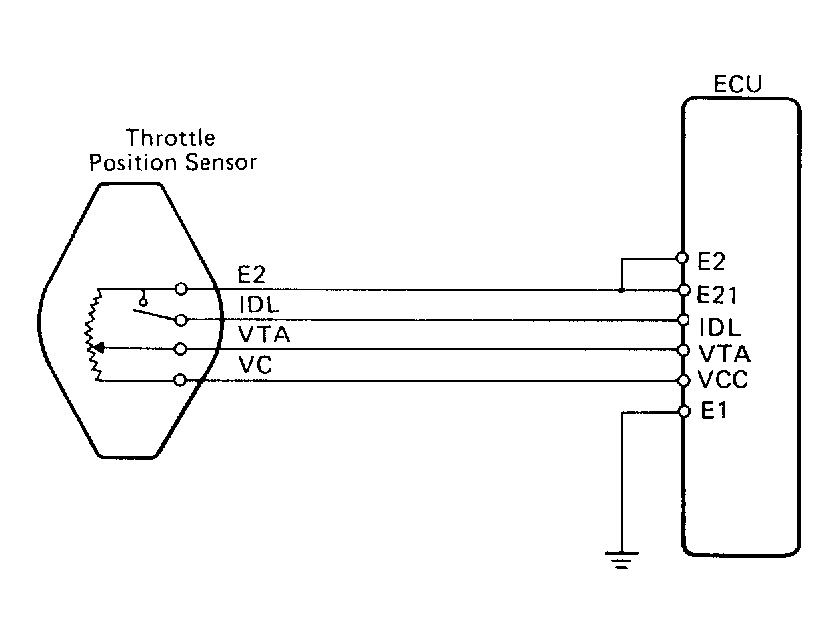

Fig 1: Code 41/Test No. 8 Schematic (4A-FE) Throttle Position Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

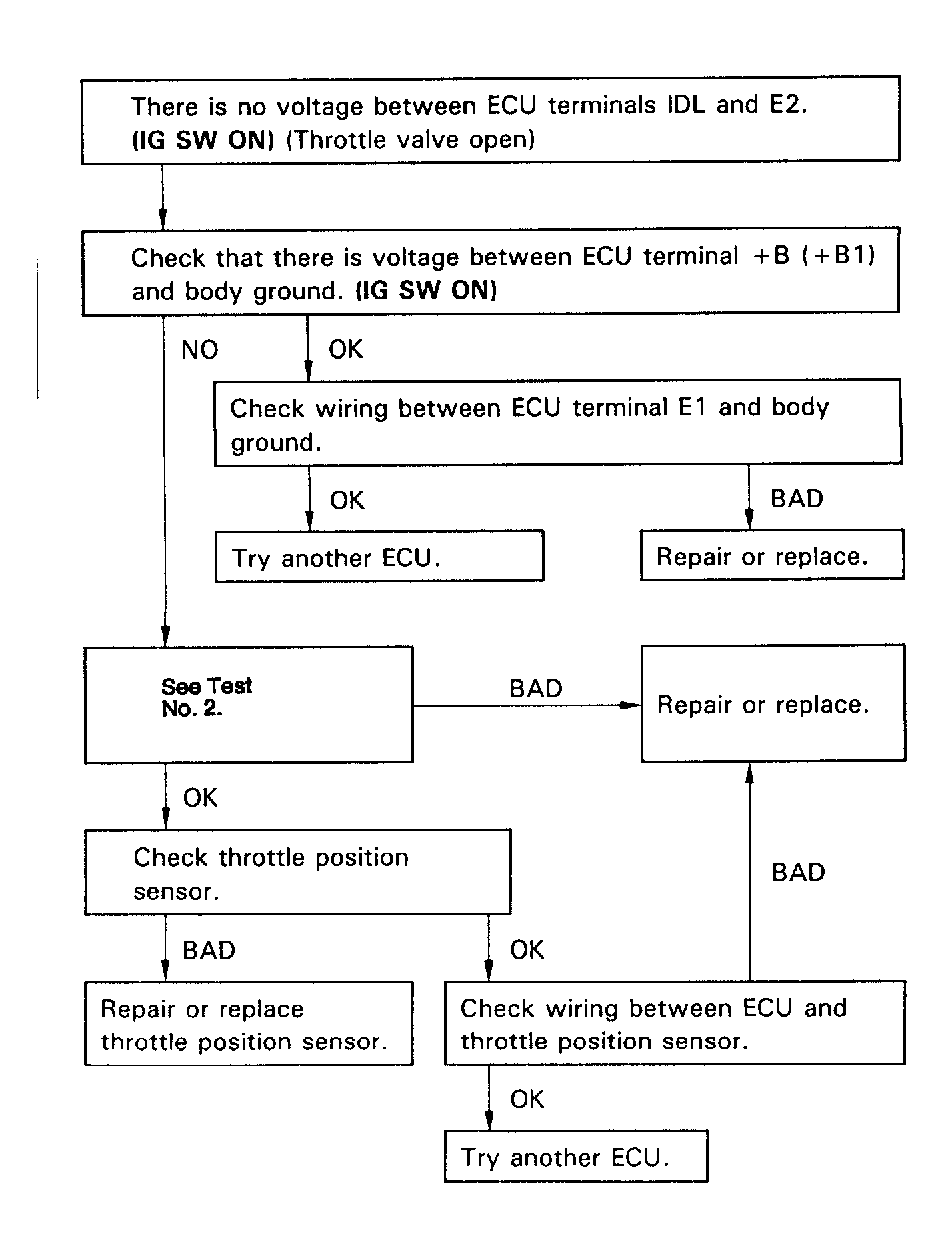

Fig 2: Code 41/Test No. 8 Flow Chart (4A-FE) Throttle Position Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Code 41/Test No. 8 Schematic (4A-GE) Throttle Position Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Code 41/Test No. 8 Flow Chart, Terminals IDL - E2 (4A-GE) Throttle Position Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

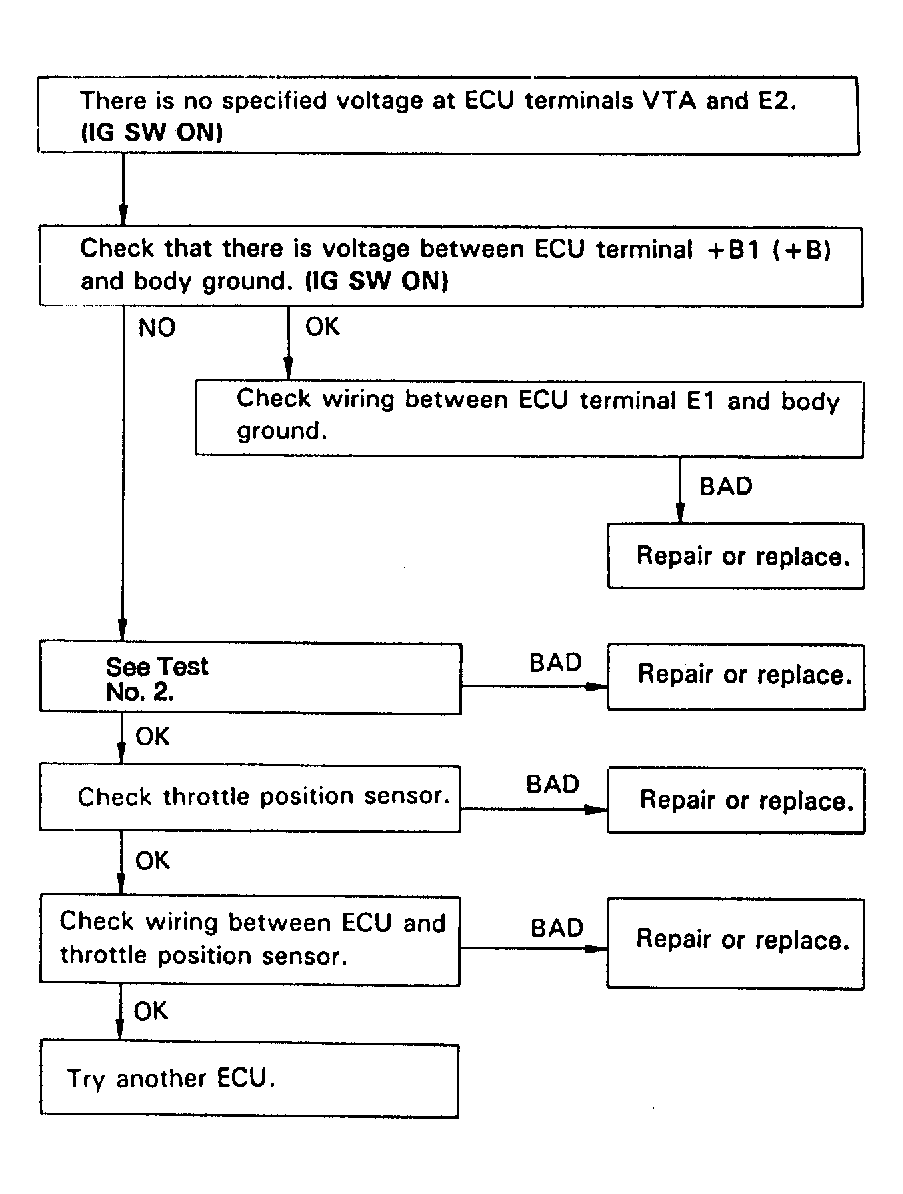

Fig 5: Code 41/Test No. 8 Flow Chart, Terminals VTA - E2 (4A-GE) Throttle Position Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

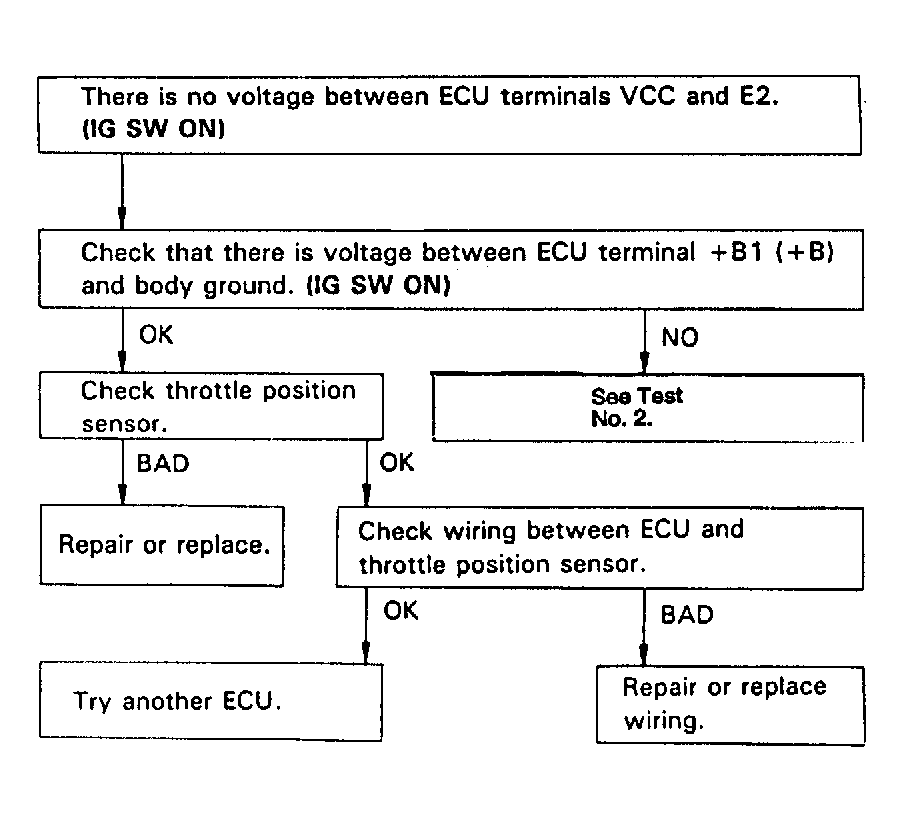

Fig 6: Code 41/Test No. 8 Flow Chart, Terminals VC - E2 (4A-GE) Throttle Position Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
