Master Switch

Inspect the switch continuity between specified terminals. See Fig 1. If continuity is not as specified, replace the switch.

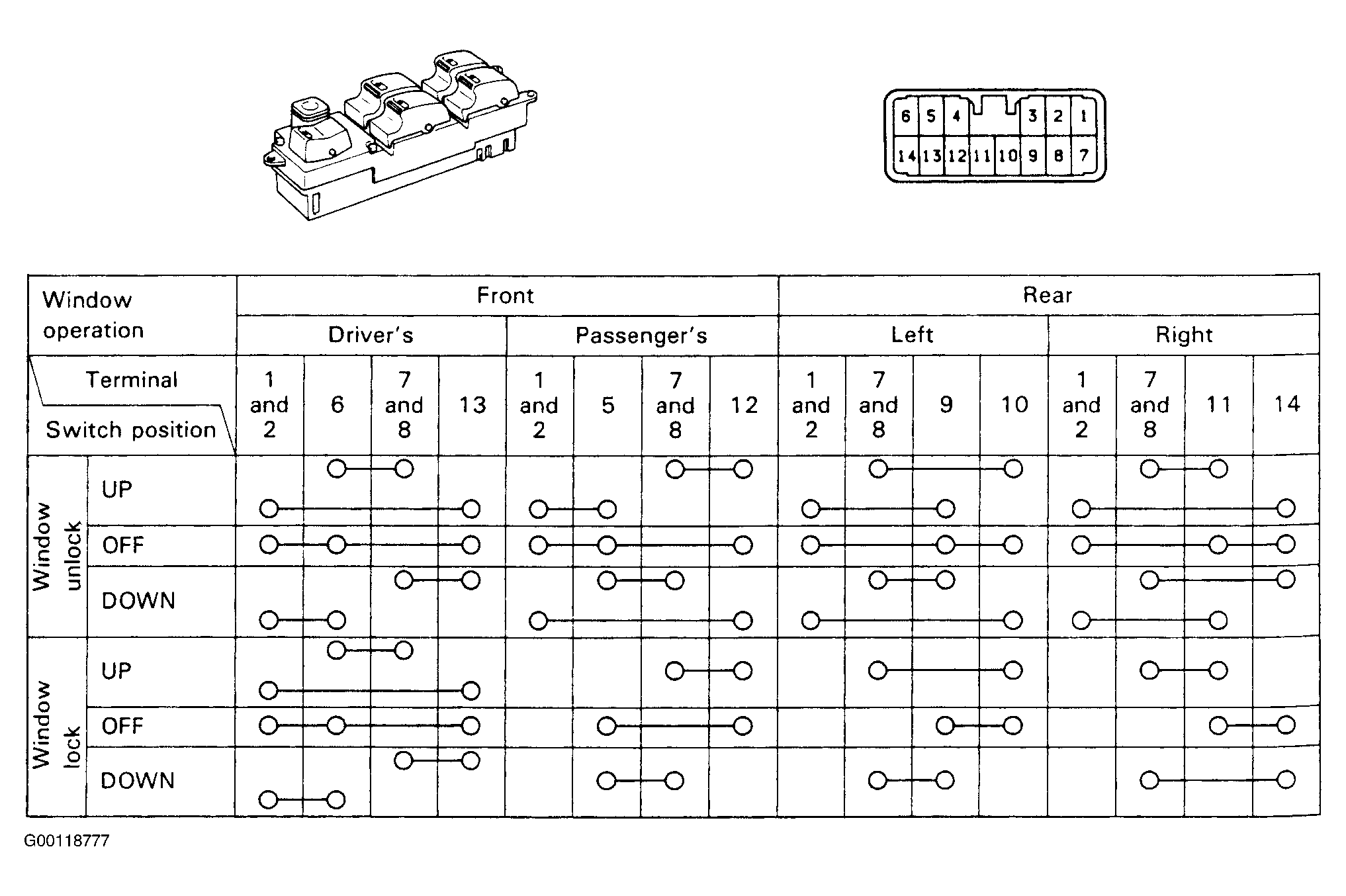

Fig 1: Testing Driver Power Window Switch Continuity
