Control Units

CONTROL UNITS LOCATION

Component	Location
Cruise Control Unit	Behind left side of dash. See Figure.

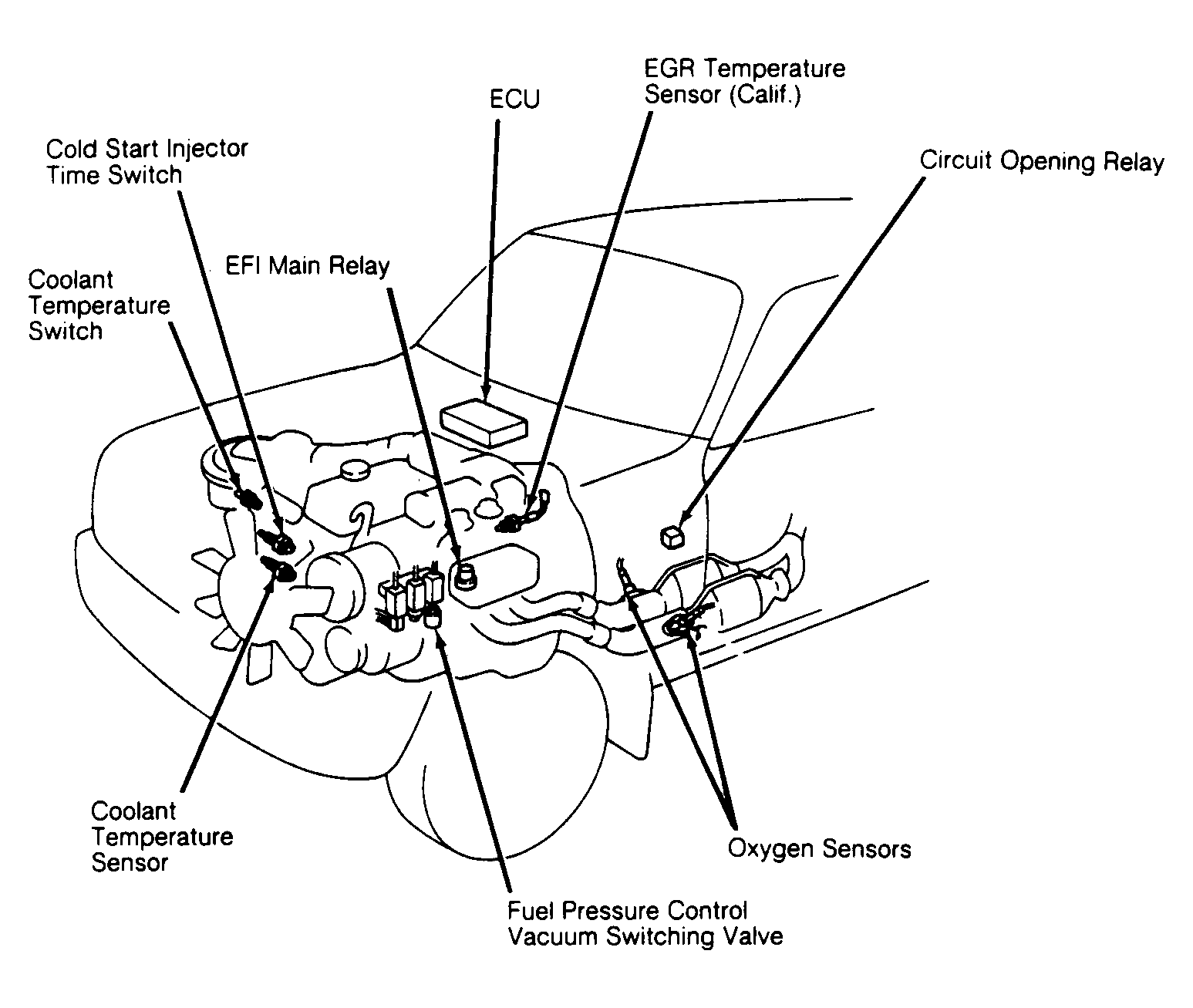

Electronic Control Unit (ECU)	Under right side of dash, behind glove box. See Figure & Figure .
Cooling Fan Control Unit	Under right side of dash. See Figure.
Shift Lock ECU (A/T)	Under floor console, near gearshift lever.
