Fuel Evaporation: Notes

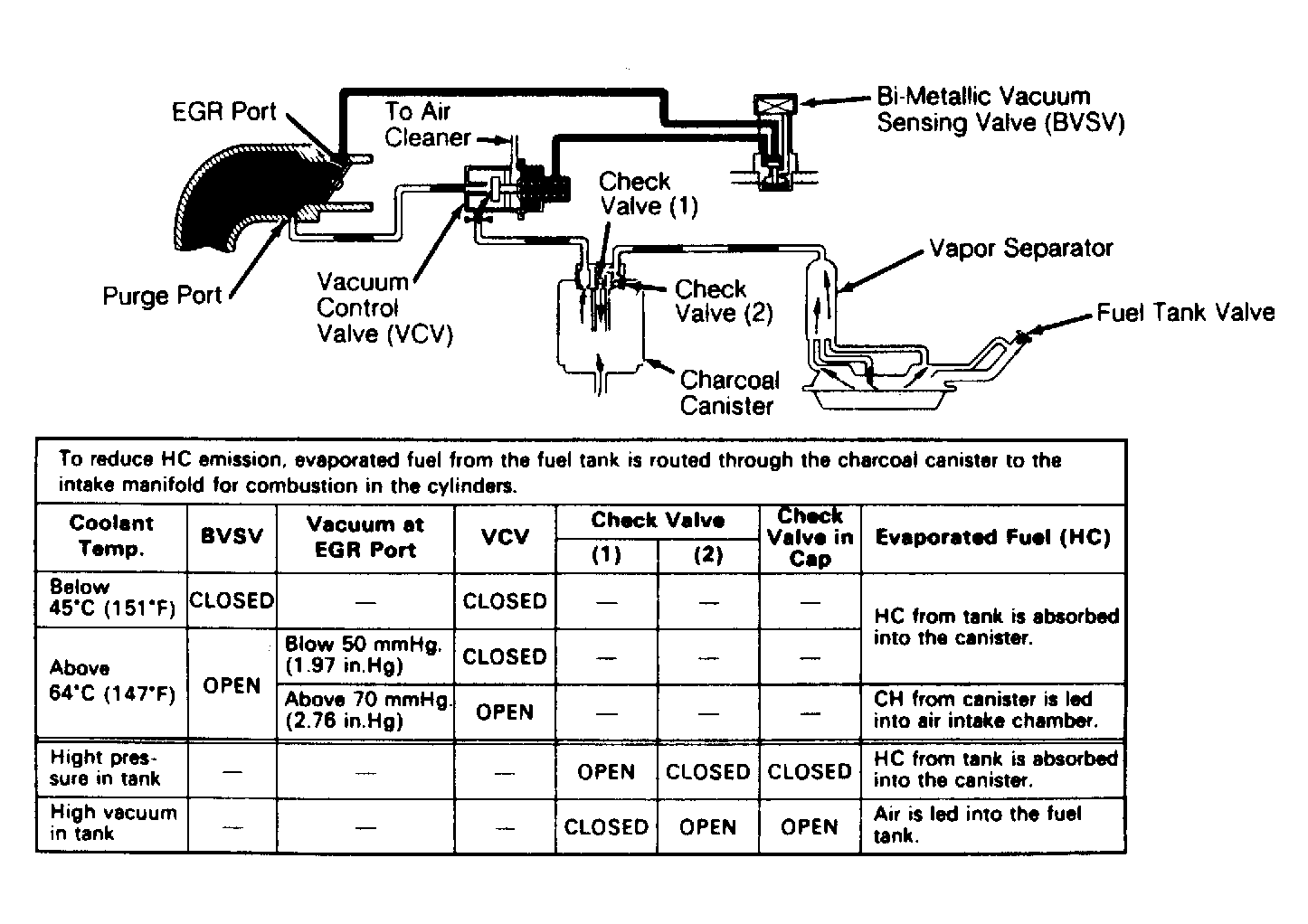

NOTE: See Figure to identify evaporative emission control systems and operating parameters.
