Ignition Timing

IGNITION TIMING

Application

Base Timing ⁽¹⁾

Advance Timing

2.0L

10 @ Idle

12-21 @ Idle

2.2L

10 @ Idle

13-22 @ Idle

⁽¹⁾	With check connector terminals TE1 and E1 jumpered.

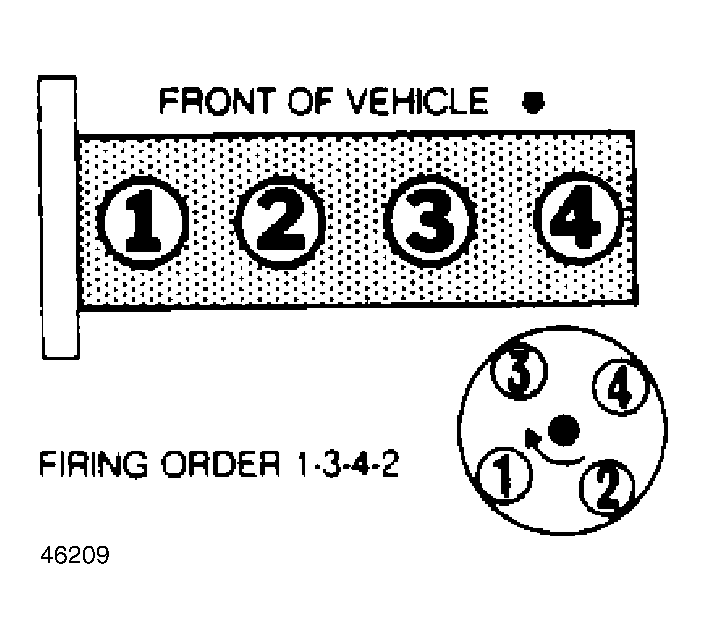

Fig 1: Firing Order & Distributor Rotation
