Ecu Terminal Identification

CAUTION: Perform all voltage measurements with ECU harness connector installed. Use a high-impedance DVOM (10,000-ohm minimum).

Verify battery voltage is greater than 11 volts.

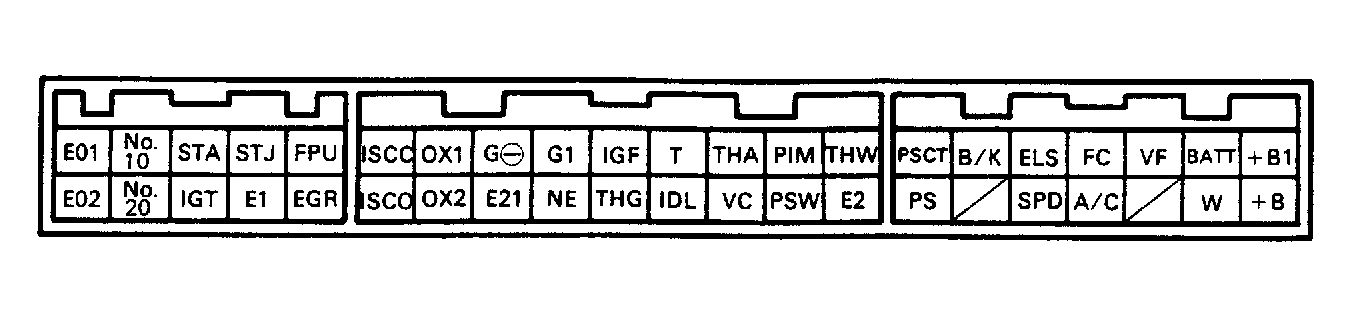

Fig 1: ECU Terminal Identification (3S-GTE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

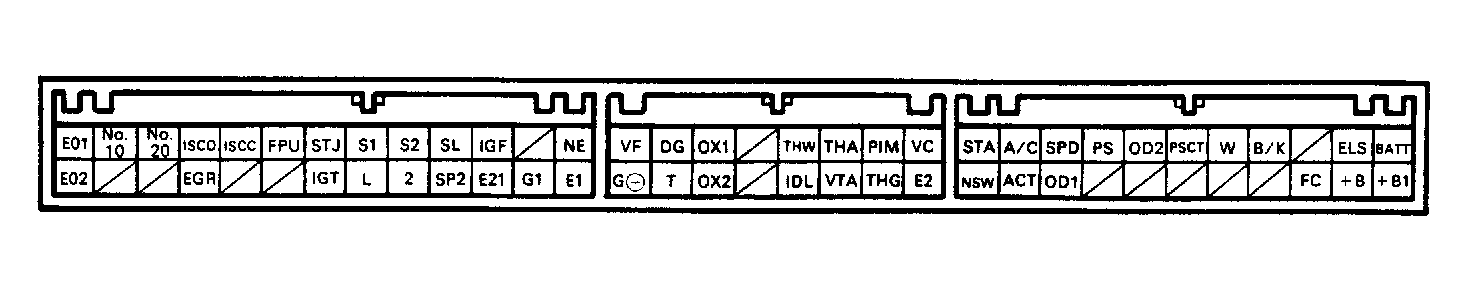

Fig 2: ECU Terminal Identification (5S-FE With A/T)

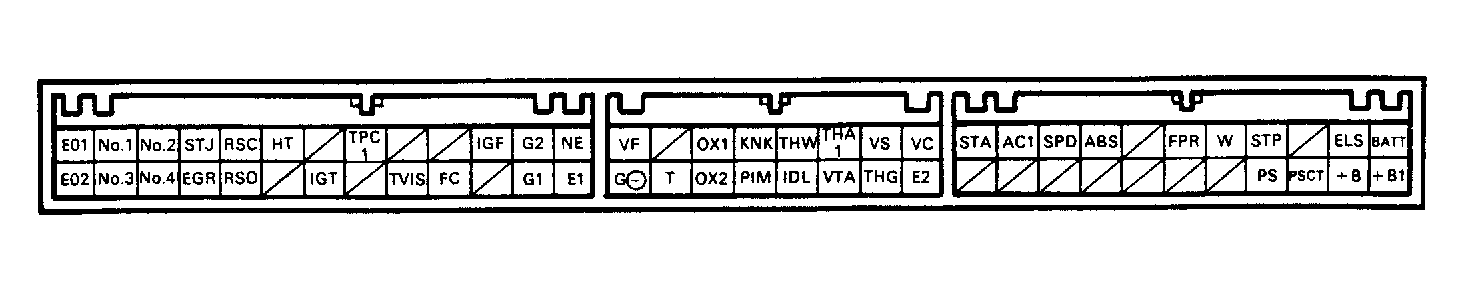

Fig 3: ECU Terminal Identification (5S-FE With M/T)
