Code 24/Test No. 6 - Intake Air Temperature Sensor Signal

CODE 24/TEST NO. 6-IAT SENSOR SIGNAL TROUBLE (3S-GTE)

Terminals	Trouble	Condition	STD Voltage
THA1 - E2	No Voltage	Ignition Switch ON Int. Air Temp. 20°C (68°F)	1 - 3V

CODE 24/TEST NO. 6-IAT SENSOR SIGNAL TROUBLE (5S-FE)

Terminals	Trouble	Condition	STD Voltage
THA - E2	No Voltage	Ignition Switch ON Int. Air Temp. 20°C (68°F)	1.7 - 3.1V

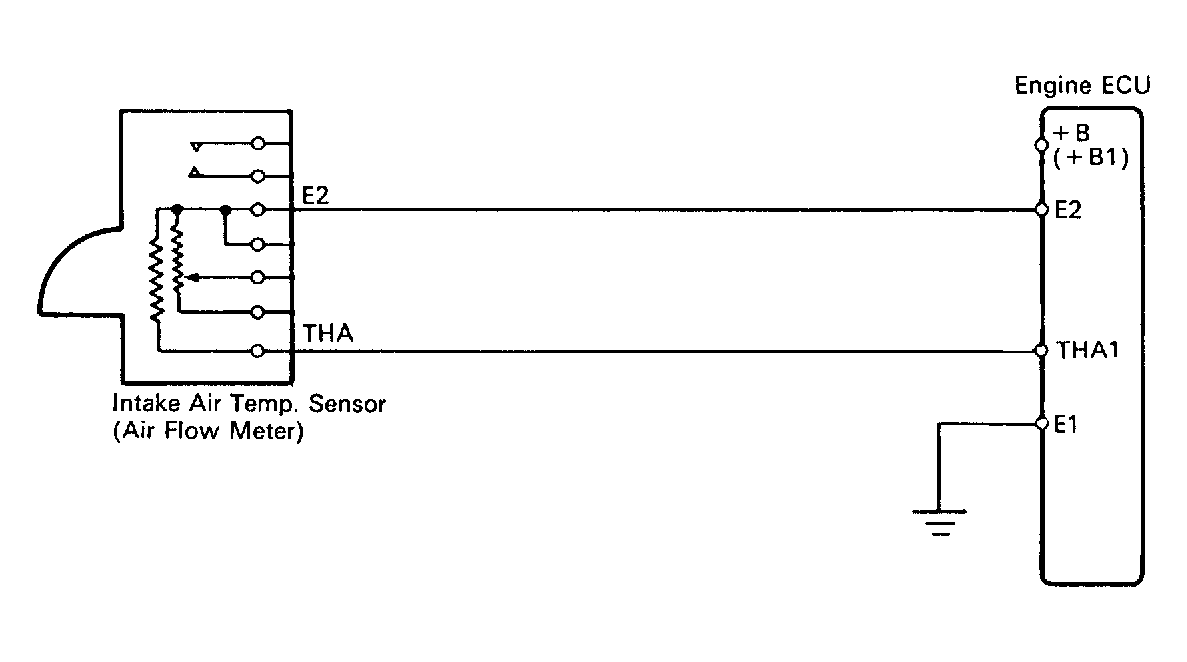

Fig 1: Code 24/Test No. 6 Schematic (3S-GTE) Intake Air Temperature Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

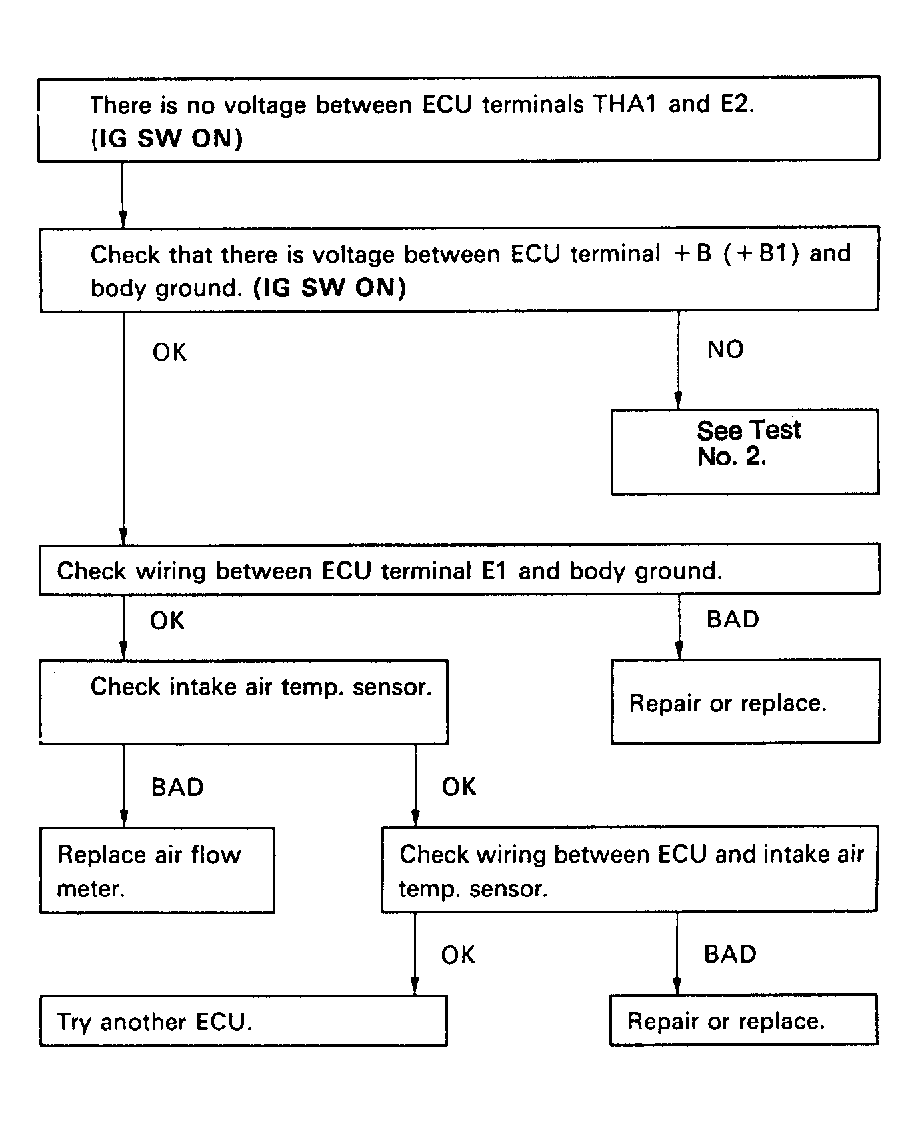

Fig 2: Code 24/Test No. 6 Flow Chart (3S-GTE) Intake Air Temperature Sensor Signal
