Code 41/Test No. 9 - Throttle Position Sensor Signal

CODE 41/TEST NO. 9-TPS SENSOR SIGNAL TROUBLE (3S-GTE)

Terminals	Trouble	Condition	STD Voltage
IDL - E2	No Voltage	IG SW ON-Throttle Valve OPEN	8-14V
VC - E2	"	IG SW ON-	4-6V
VTA - E2	"	IG SW ON-Throttle Valve SHUT	0.7-1.0V
"	"	IG SW ON-Throttle Valve OPEN	3.2-4.2V

CODE 41/TEST NO. 9-TPS SENSOR SIGNAL TROUBLE (5S-FE WITH A/T)

Terminals	Trouble	Condition	STD Voltage
IDL - E2	No Voltage	IG SW ON-Throttle Valve OPEN	8 - 14V
VCC - E2	"	IG SW ON-	4.5-5.5V
VTA - E2	"	IG SW ON-Throttle Valve SHUT Throttle Opener Must Be Cancelled First	0.8 - 1.2V
"	"	IG SW ON-Throttle Valve OPEN	3.2 - 4.2V

CODE 41/TEST NO. 9-TPS SENSOR SIGNAL TROUBLE (5S-FE WITH M/T)

Terminals	Trouble	Condition	STD Voltage
IDL - E1	No Voltage	IG SW ON-Throttle valve OPEN	8 - 14V
PSW - E1	No Voltage	IG SW ON-Throttle valve SHUT Throttle Opener Must Be Cancelled First	4 - 6V

Fig 1: Code 41/Test No. 9 Schematic (5S-FE A/T & 3S-GTE) Throttle Position Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

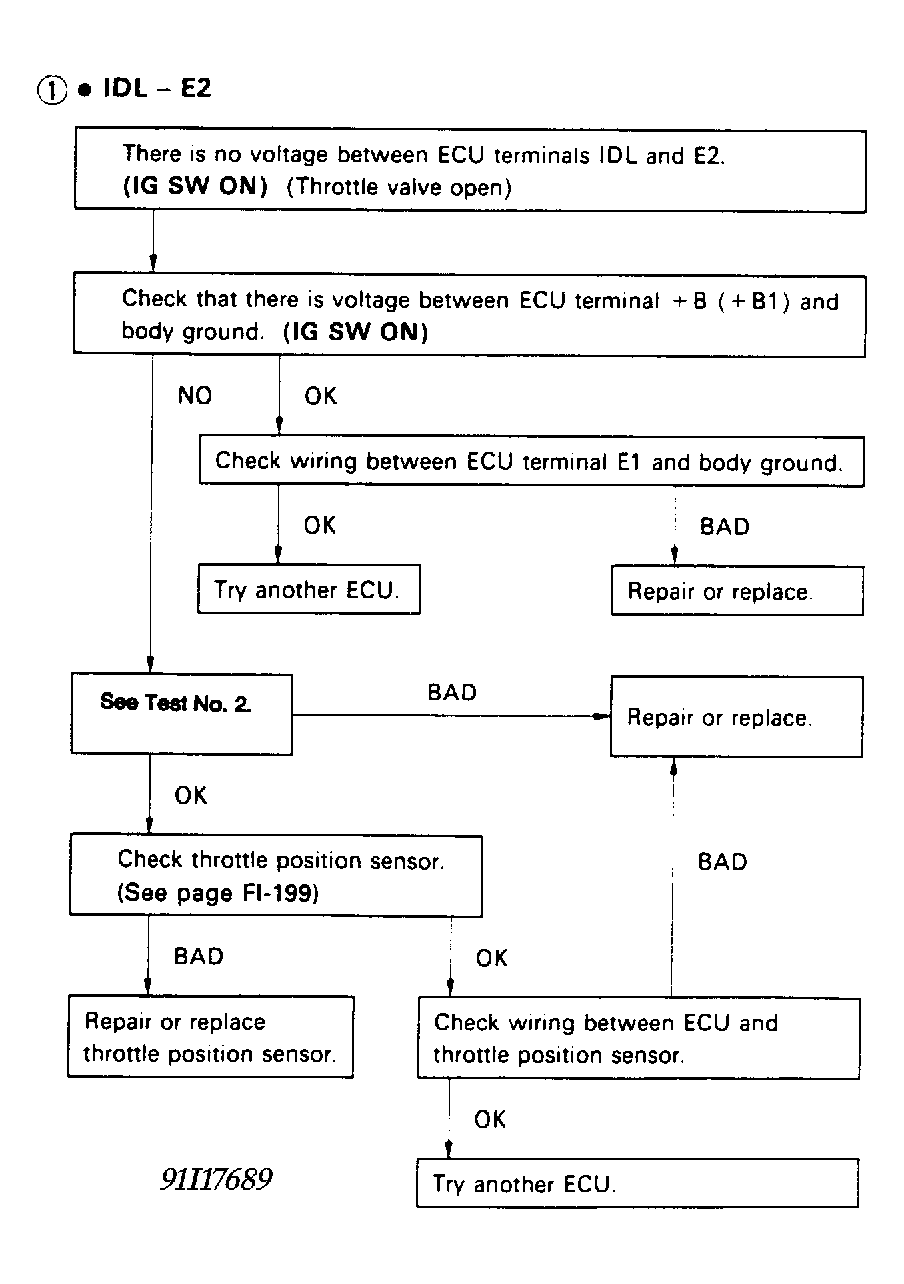

Fig 2: Code 41/Test No. 9 Flow Chart, IDL - E2 (5S-FE A/T & 3S-GTE) Throttle Position Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

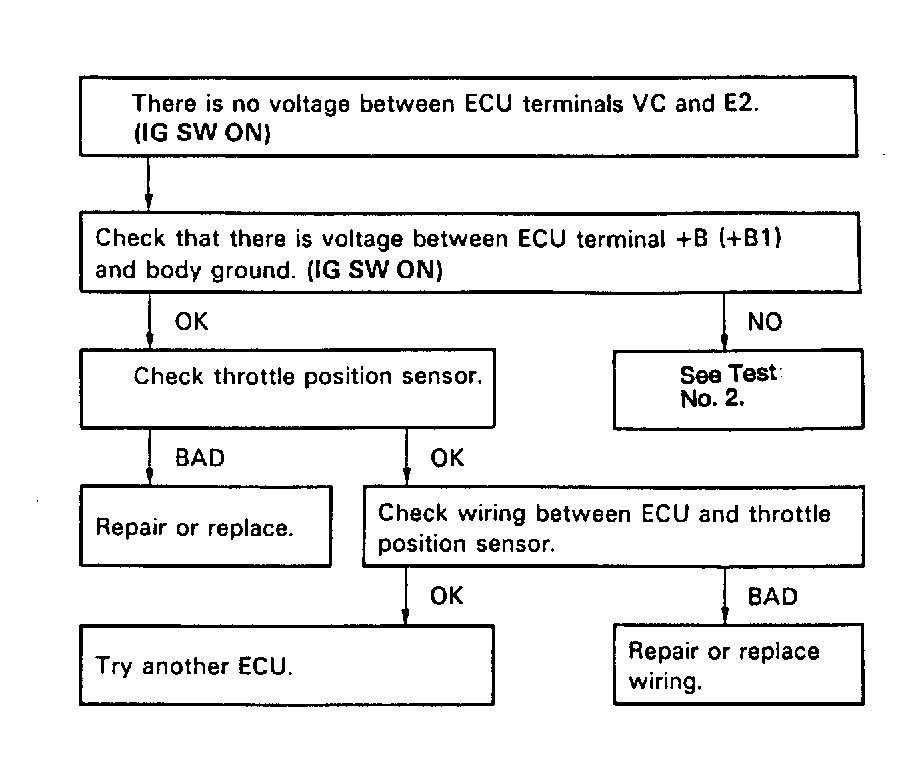

Fig 3: Code 41/Test No. 9 Flow Chart, VC - E2 (5S-FE A/T & 3S-GTE) Throttle Position Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

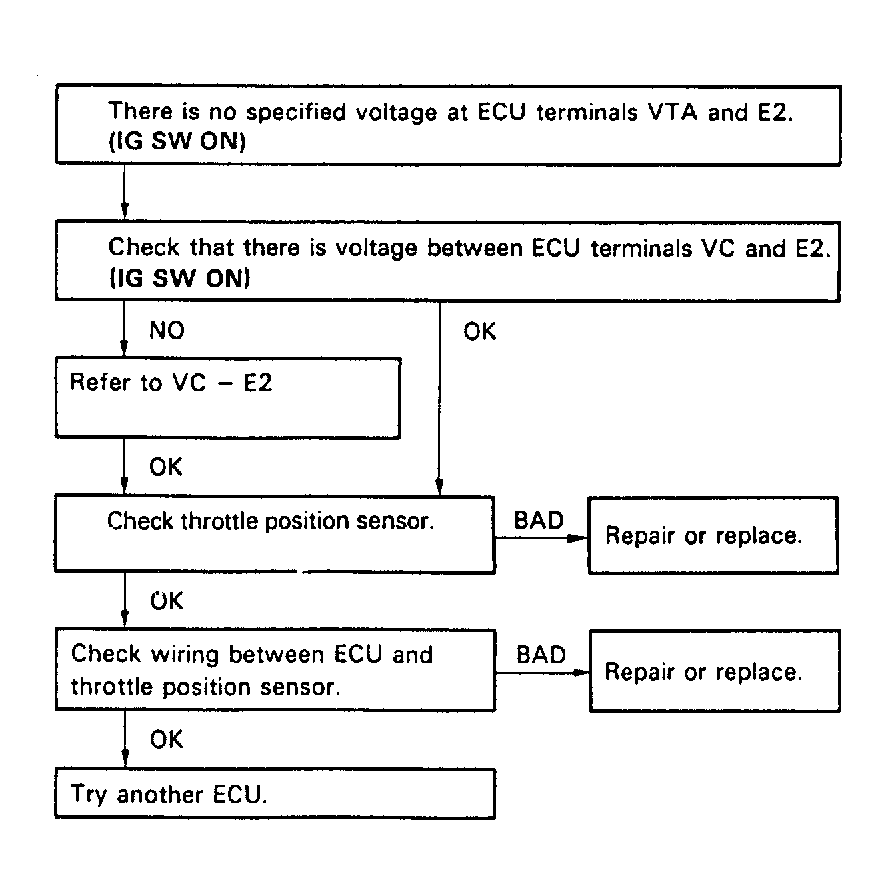

Fig 4: Code 41/Test No. 9 Flow Chart, VTA - E2 (5S-FE A/T & 3S-GTE) Throttle Position Sensor Signal

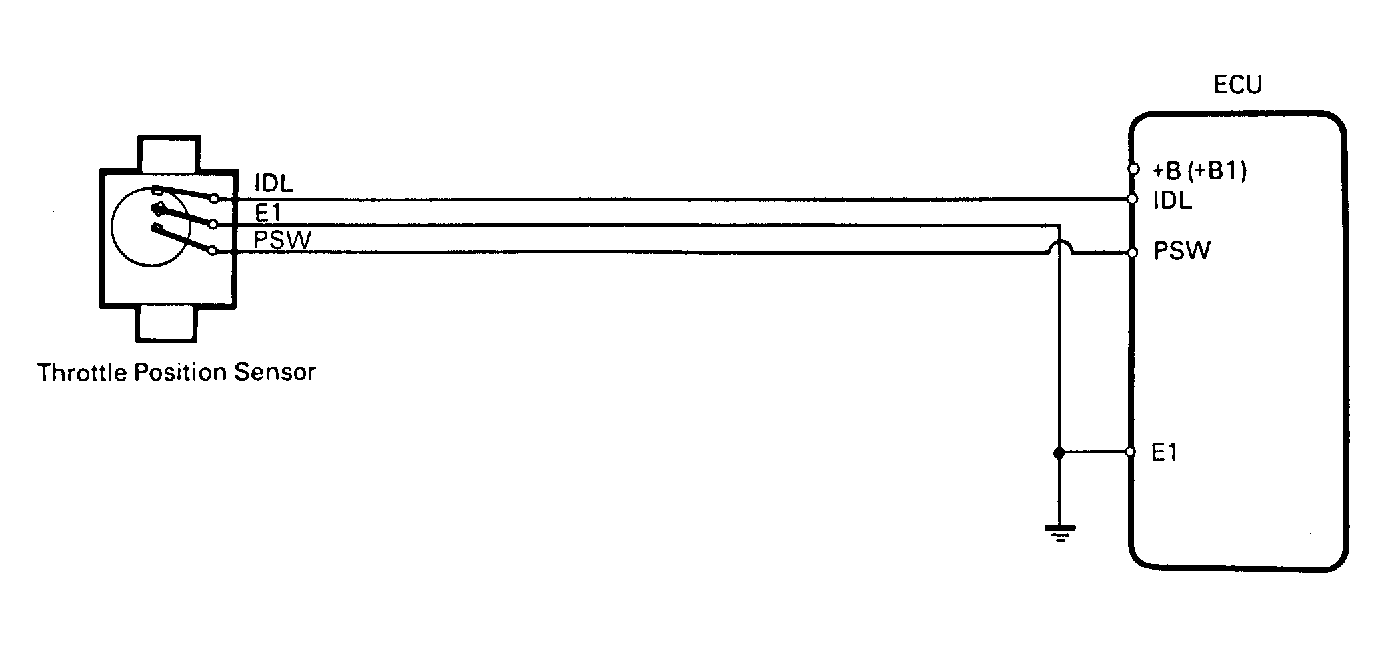

Fig 5: Code 41/Test No. 9 Schematic (5S-FE With M/T) Throttle Position Sensor Signal

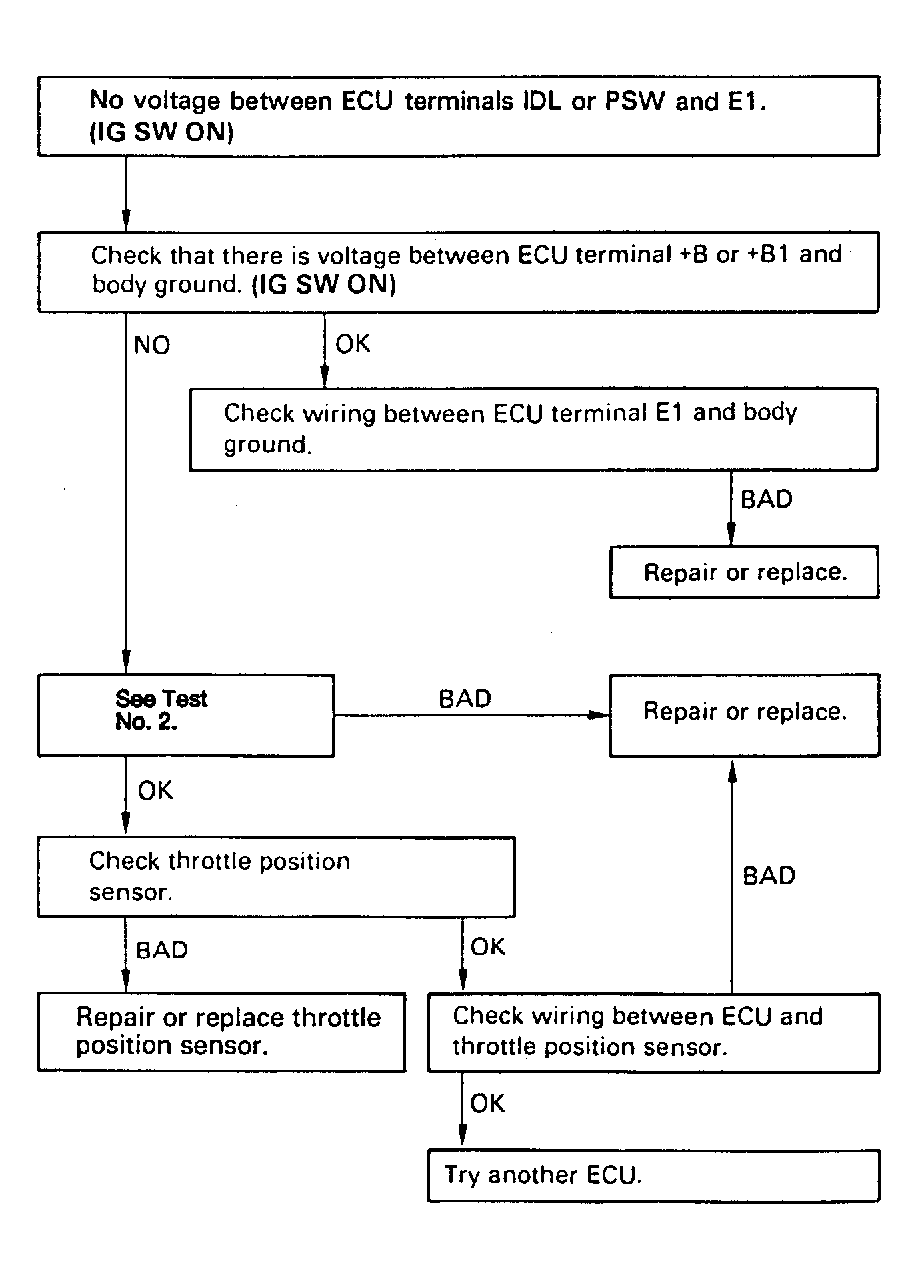

Fig 6: Code 41/Test No. 9 Flow Chart (5S-FE With M/T) Throttle Position Sensor Signal
