Ignition Timing

IGNITION TIMING

Application Base Timing Advance Timing
Non-Turbo 10 @ 700 9-10 @ Idle
Turbo 10 @ 650 More than 12 @ Idle

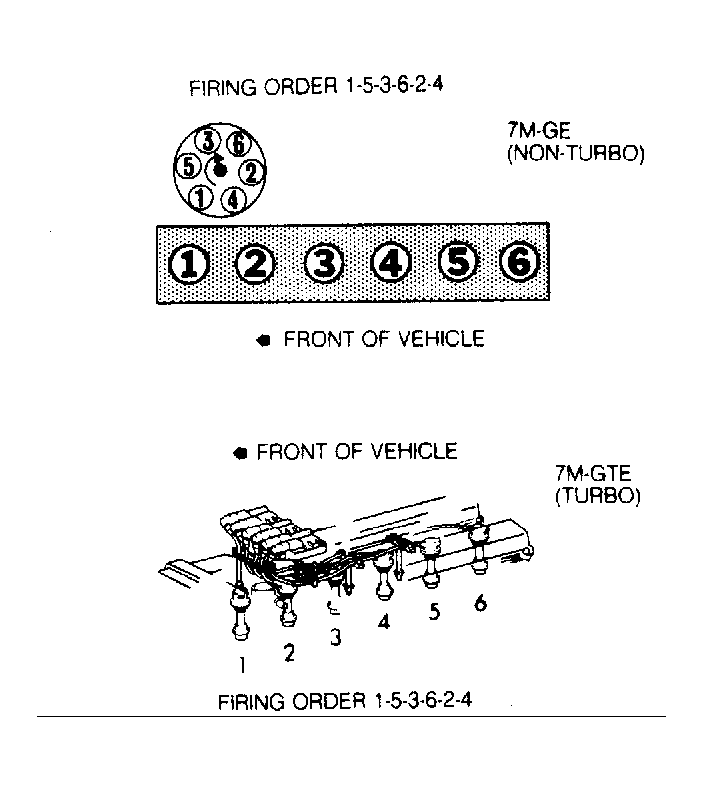

Fig 1: Firing Order & Distributor Rotation (Supra)
G93233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
