Cam Position Sensor (Turbo): Installation

  1. Install new "O" ring into cam position sensor housing. Coat "O" ring with oil. Align groove on sensor housing with drilled mark on driven gear. SeeFig 1
  2. Insert cam position sensor with flange aligning with bolt hole on cylinder head. Lightly tighten cam position sensor hold-down bolt. Install power steering reservoir. Install air cleaner hoses, air cleaner cap and airflow meter.
  3. Connect cam position sensor connector. Connect negative battery cable. Set ignition timing. Tighten cam position sensor hold-down bolt. See TORQUE SPECIFICATIONS .

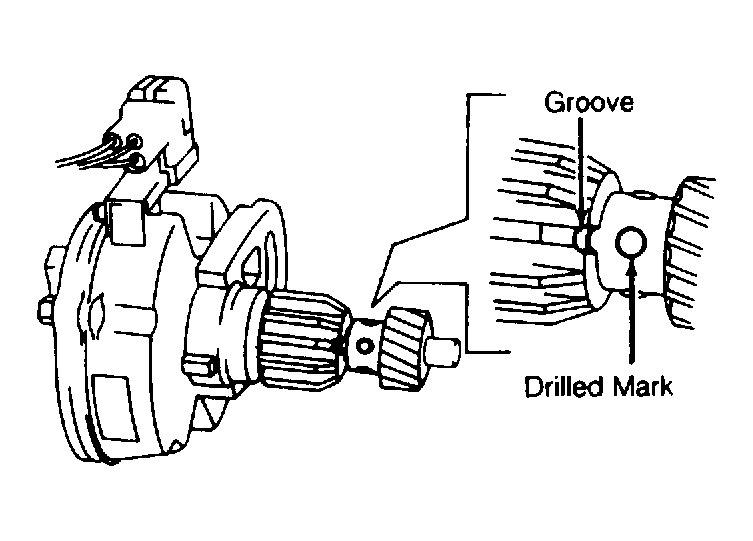

Fig 1: Aligning Cam Position Sensor Marks (Turbo)
G119509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
