Pull-In Test

Connect negative leads to starter housing and terminal "C". Connect battery positive lead to terminal 50. See Fig 1. If starter pinion gear does not move out, replace solenoid.

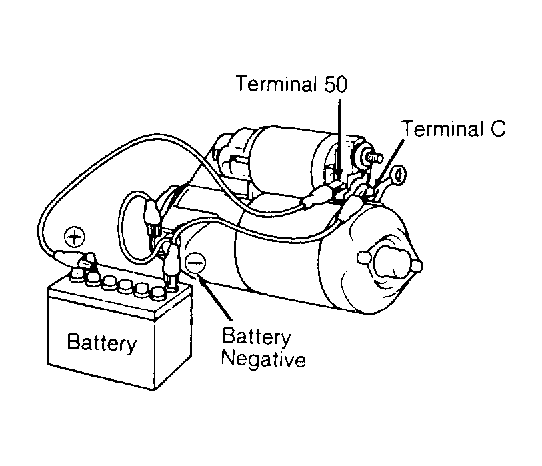

Fig 1: Testing Solenoid Pull-In & Hold-In (Direct Drive)
