Code 41/Test No. 8 - TPS Sensor Signal

CODE 41/TEST NO. 8-TPS SENSOR SIGNAL (5S-FE)

No.	Terminals	Trouble	Condition	STD Voltage
3	IDL-E2	No Voltage	Ign. ON Throttle Valve Open	8 - 14V
	VC-E2		All	4.5 - 5.5V
	VTA-E2		Throttle Valve fully closed (Throttle opener must be cancelled first.)	0.8 - 1.2V
			Throttle Valve fully open	3.2 - 4.2V

CODE 41/TEST NO. 8-TPS SENSOR SIGNAL (3VZ-FE)

No.	Terminals	Trouble	Condition	STD Voltage
2	IDL-E2	No Voltage	Ign. ON Throttle Valve Open	10 - 14V
	VC-E2		All	4.0 - 6.0V
	VTA-E2		Throttle Valve fully closed (Throttle opener must be cancelled first.)	0.3 - 0.8V
			Throttle Valve fully open	2.7 - 5.2V

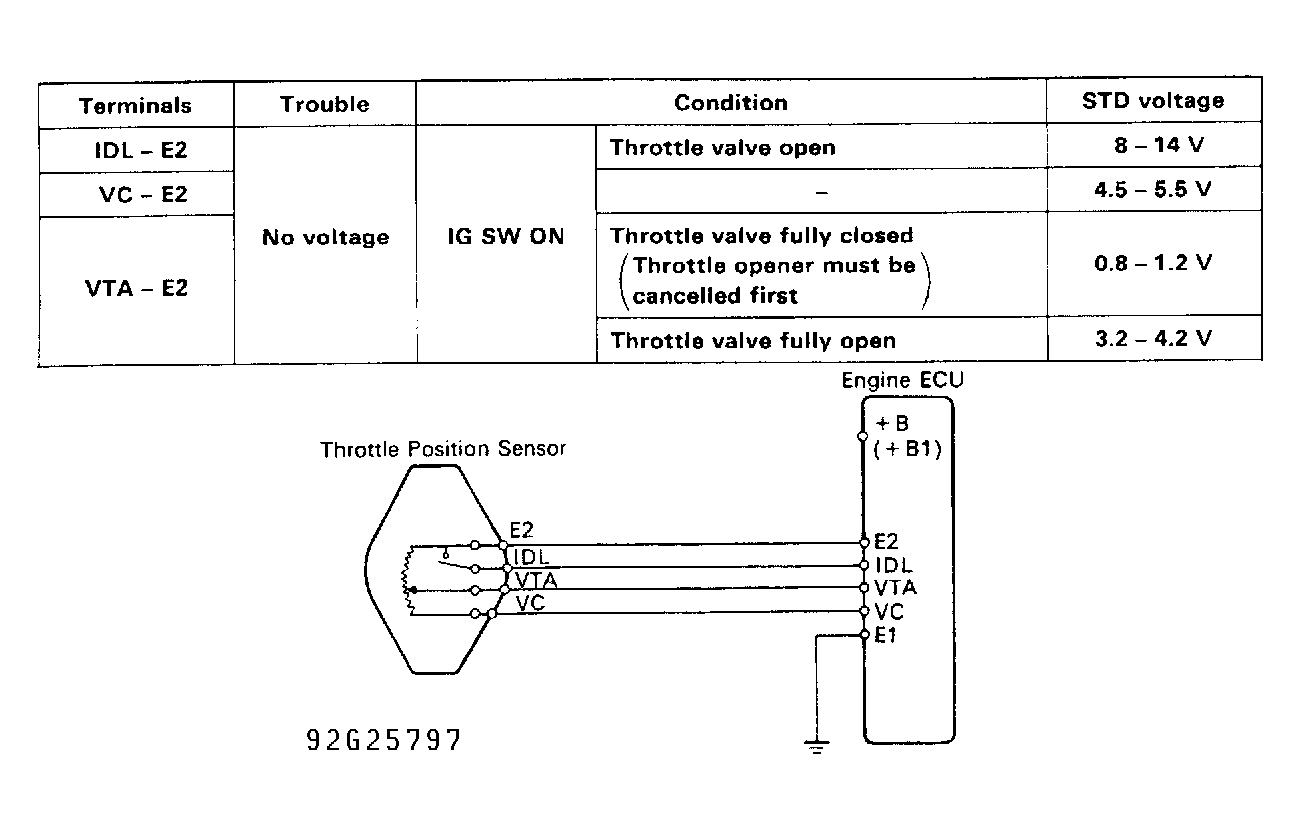

Fig 1: 41/Test No. 8 Component Diagram Throttle Position Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Code 41/Test No. 8 Schematic (W/ECT) Throttle Position Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Code 41/Test No. 8 Flow Chart (W/ECT)-Terminals IDL - E2 Throttle Position Sensor Signal

Fig 4: Code 41/Test No. 8 Flow Chart (W/ECT)-Terminals VC - E2 Throttle Position Sensor Signal

Fig 5: Code 41/Test No. 8 Flow Chart (W/ECT)-Terminals VTA - E2 Throttle Position Sensor Signal
