Ecu Terminal Identification

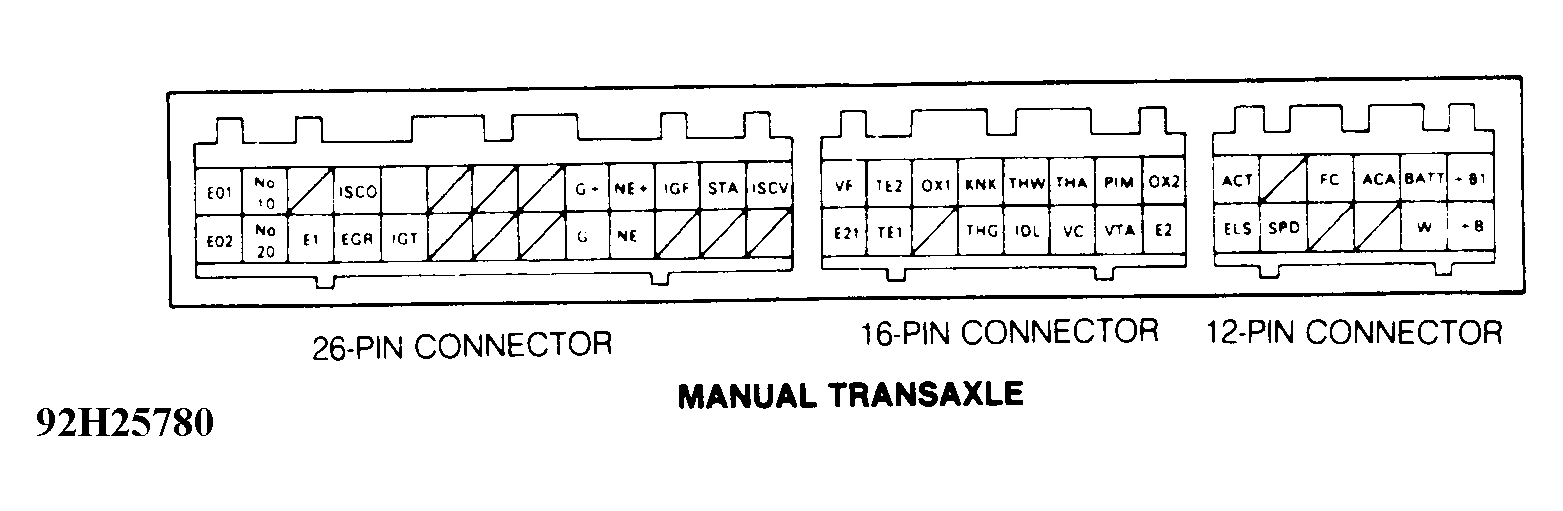

Fig 1: ECU Connector Terminal Identification (5S-FE With M/TX)
G92H25780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

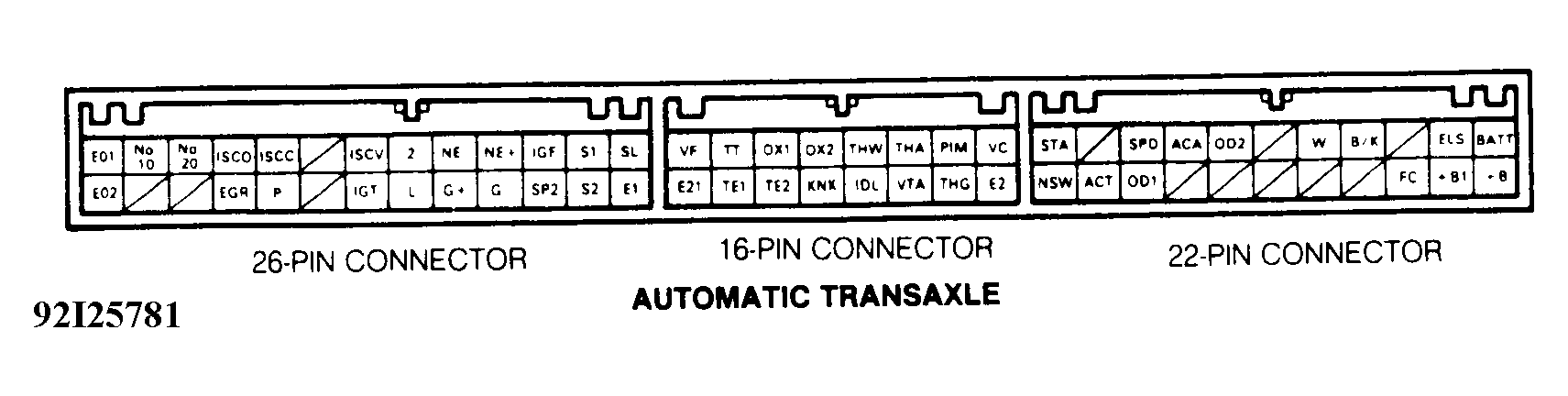

Fig 2: ECU Connector Terminal Identification (5S-FE With A/TX)
G92I25781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

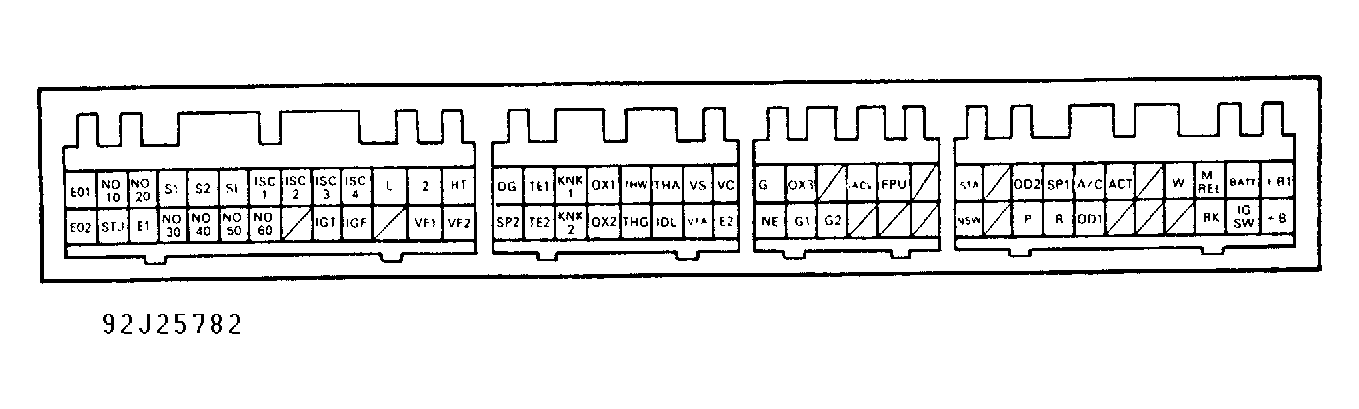

Fig 3: ECU Connector Terminal Identification (3VZ-FE)
G92J25782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
