Retrieving Codes: Notes

NOTE: If CHECK ENGINE light will not flash diagnostic codes, see appropriate DIAGNOSTIC CIRCUIT CHECK under CODE CHARTS.

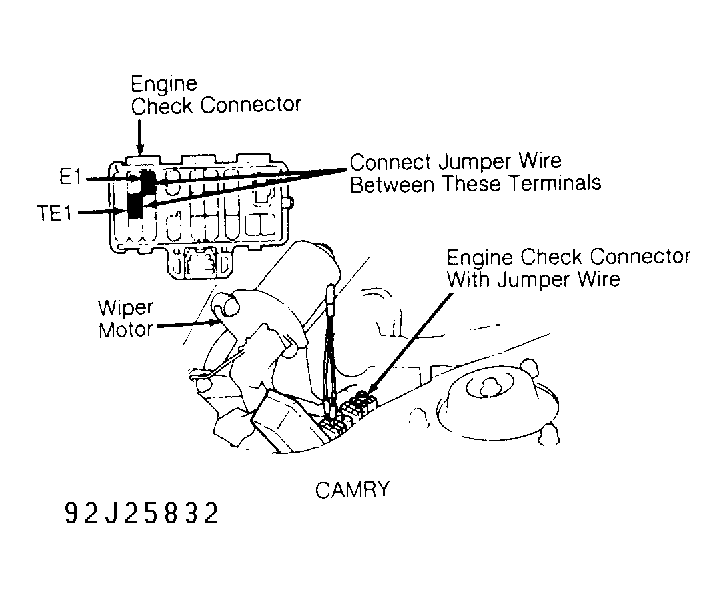

Fig 1: Installing Jumper Wire In Engine Check Connector (Camry)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Displaying Codes

NOTE: Camry has a Normal Mode and a Test Mode for retrieving codes. To prevent damage to ECU, connect only specified terminals.
