Code 41/Test No. 9 - Throttle Position Sensor Signal (4A-FE)

CODE 41/TEST NO. 9-TPS SENSOR SIGNAL TROUBLE

Terminal	Trouble	Condition	STD Voltage
IDL-E2	No Voltage	IG SW ON - Throttle Valve OPEN	10-14V
PSW-E2	"	IG SW ON - Throttle Valve CLOSED	10-14V

Fig 1: Code 41/Test No. 9 Schematic (4A-FE) Throttle Position Sensor Signal

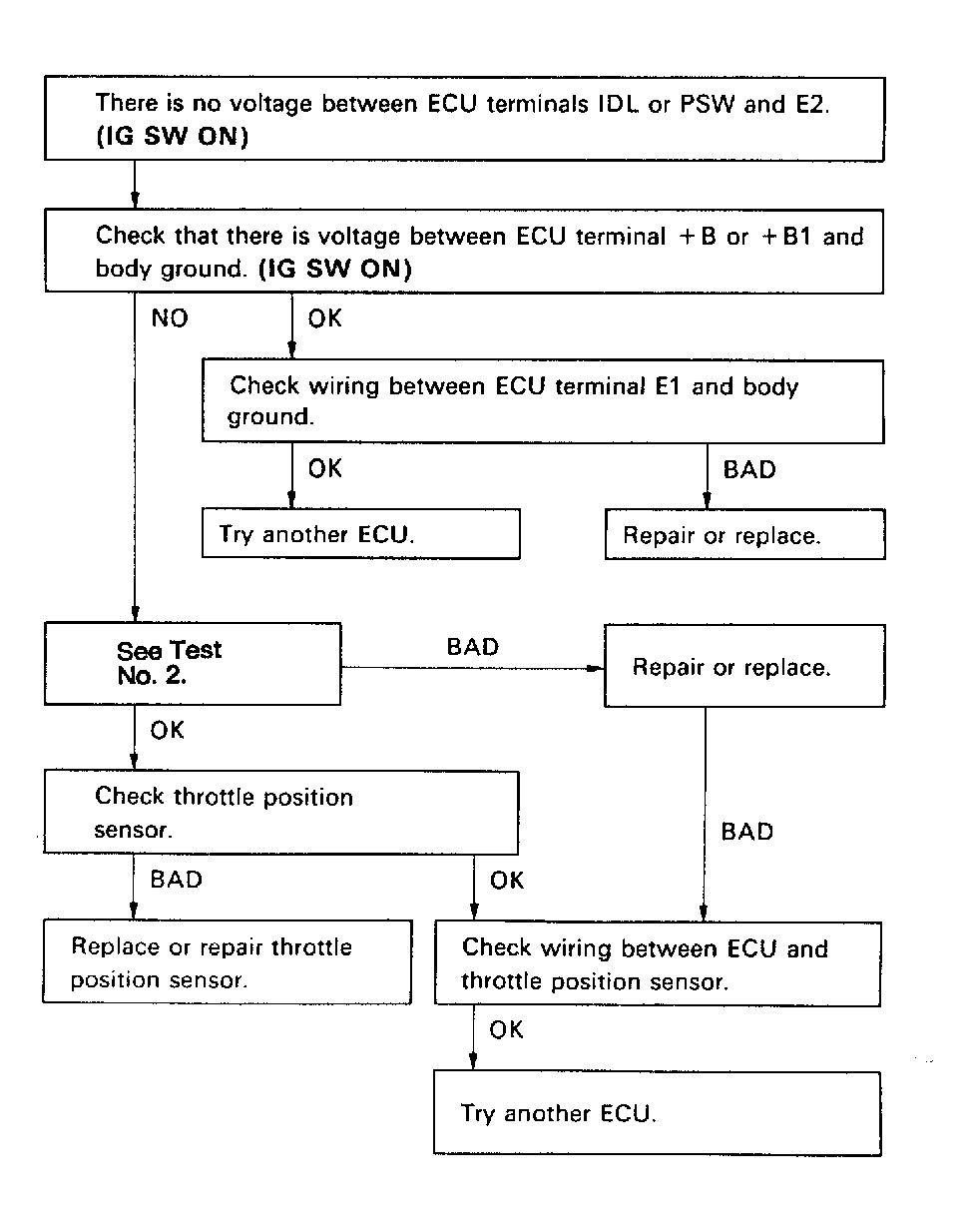

Fig 2: Code 41/Test No. 9 Flow Chart (4A-FE) Throttle Position Sensor Signal
