Code 41/Test No. 9 - Throttle Position Sensor Signal (5S-FE)

CODE 41/TEST NO. 8-TPS SENSOR SIGNAL TROUBLE

Terminals	Trouble	Condition	STD Voltage
IDL - E2	No Voltage	IG SW ON-Throttle valve OPEN	8 - 14V
VC - E2	"	IG SW ON-	4.5-5.5V
VTA - E2	"	IG SW ON-Throttle Valve SHUT (Throttle Opener Must Be Cancelled First)	0.8 - 1.2V
"	"	IG SW ON-Throttle valve OPEN	3.2 - 4.2V

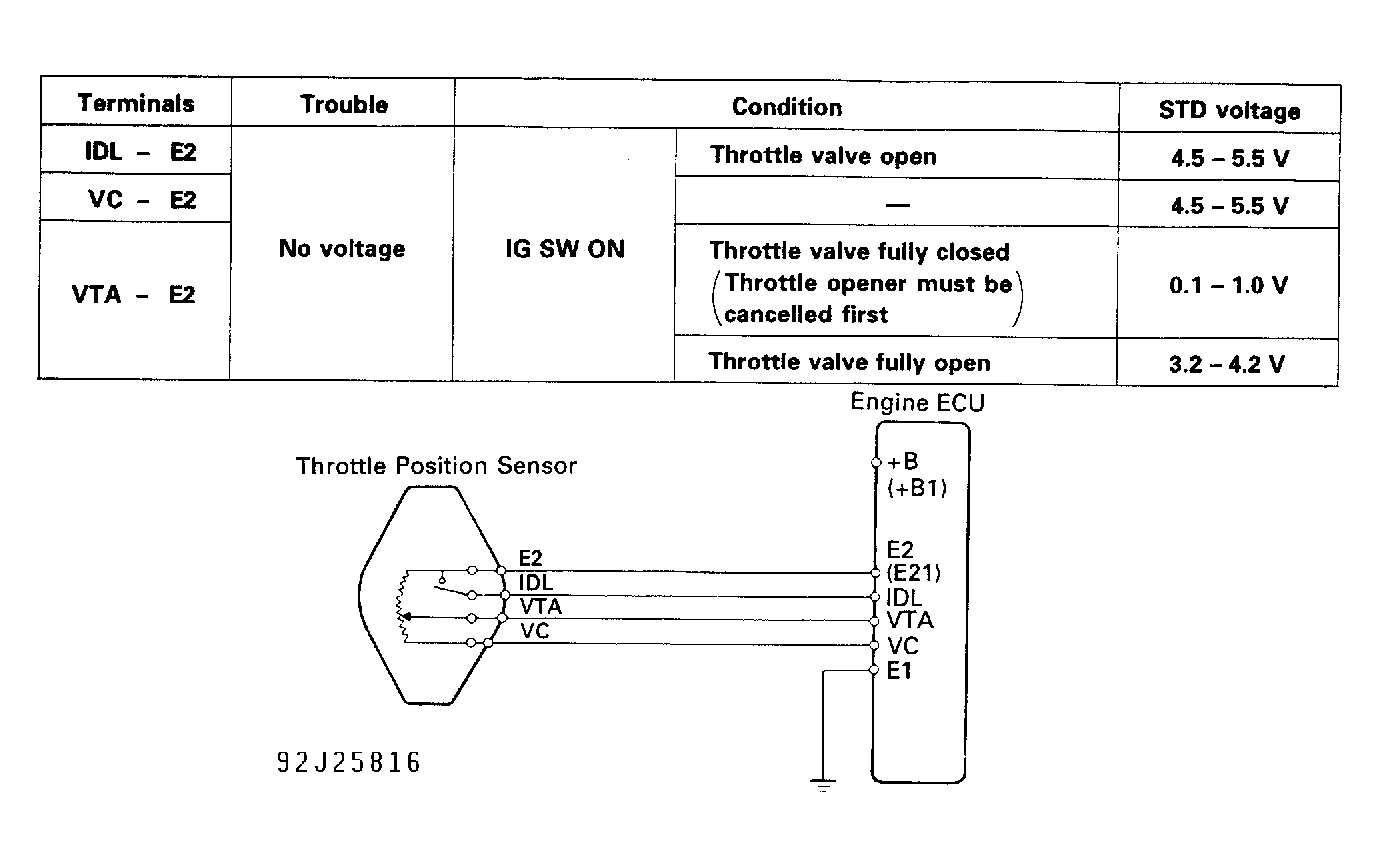

Fig 1: Code 41/Test No. 9 Schematic (5S-FE) Throttle Position Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

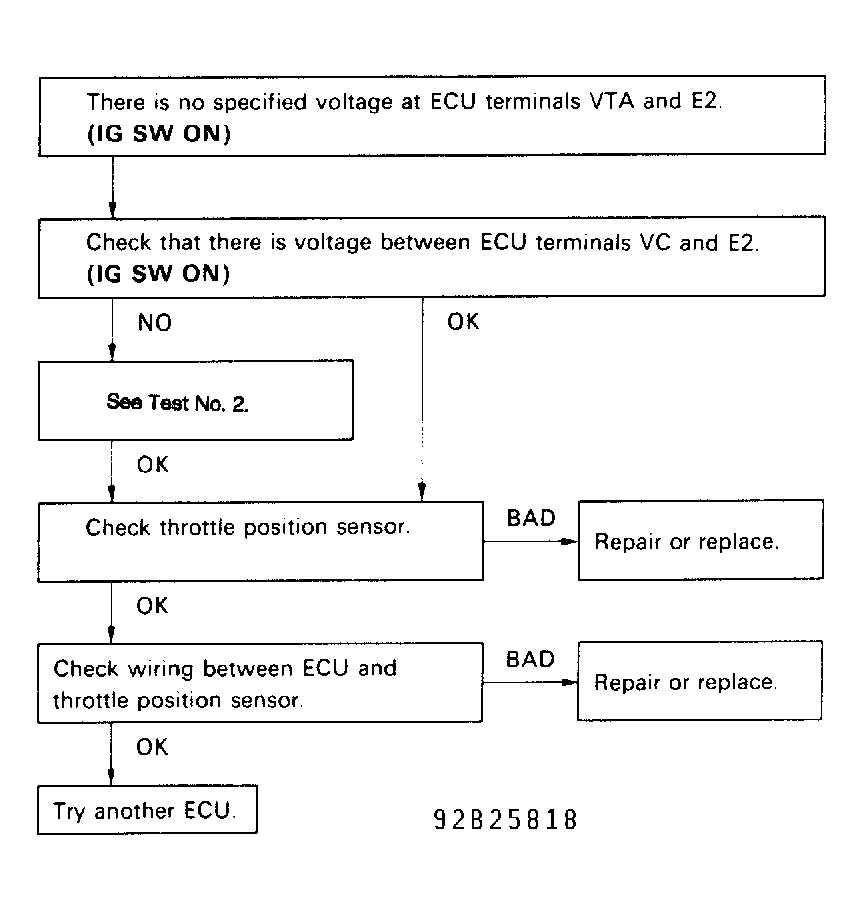

Fig 2: Code 41/Test No. 9 Flow Chart Terms. IDL - E2 (5S-FE) Throttle Position Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

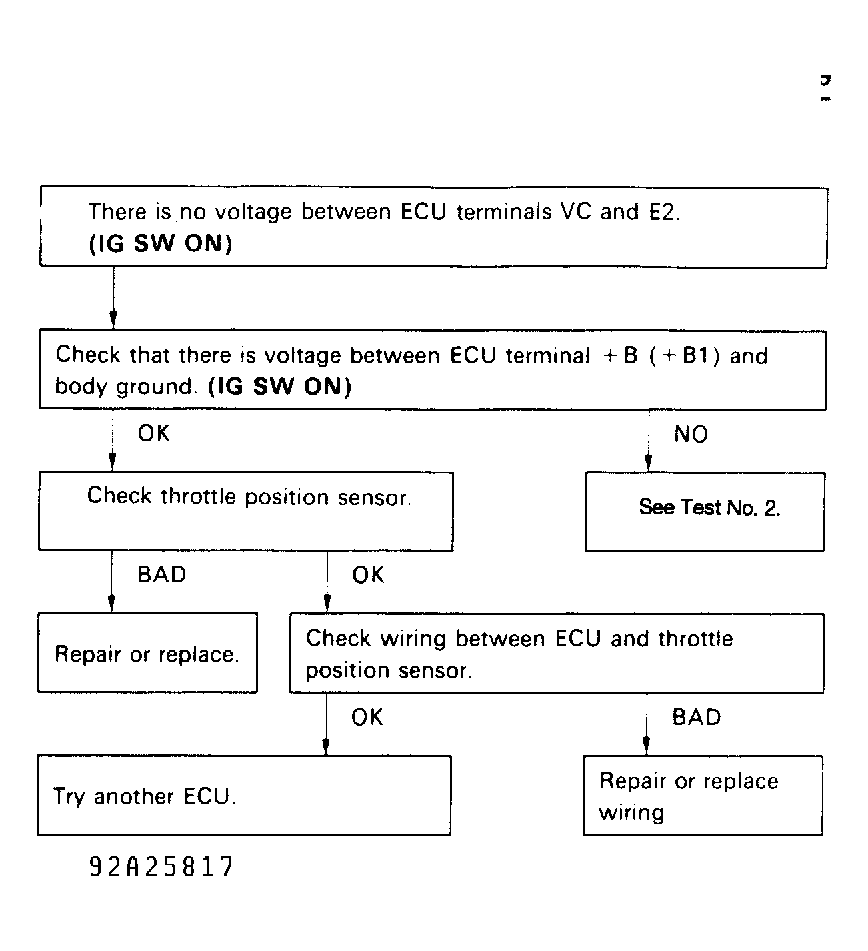

Fig 3: Code 41/Test No. 9 Flow Chart Terms. VC - E2 (5S-FE) Throttle Position Sensor Signal

Fig 4: Code 41/Test No. 9 Flow Chart Terms. VTA - E2 (5S-FE) Throttle Position Sensor Signal
