Component Locations — 1992 Toyota Land Cruiser Service Manual ~ LEMON Manuals

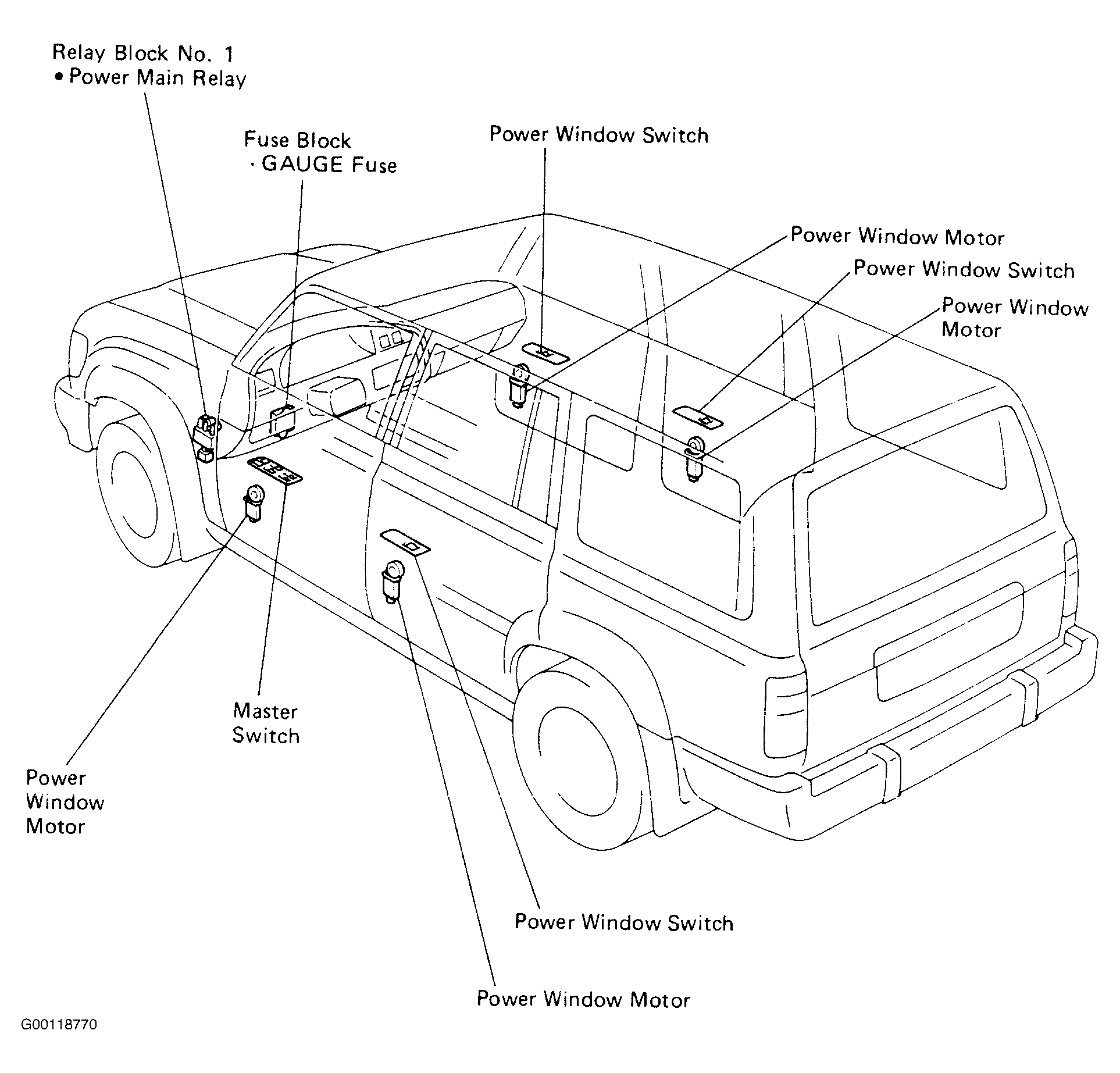

Fig 1: Locating Power Window System Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

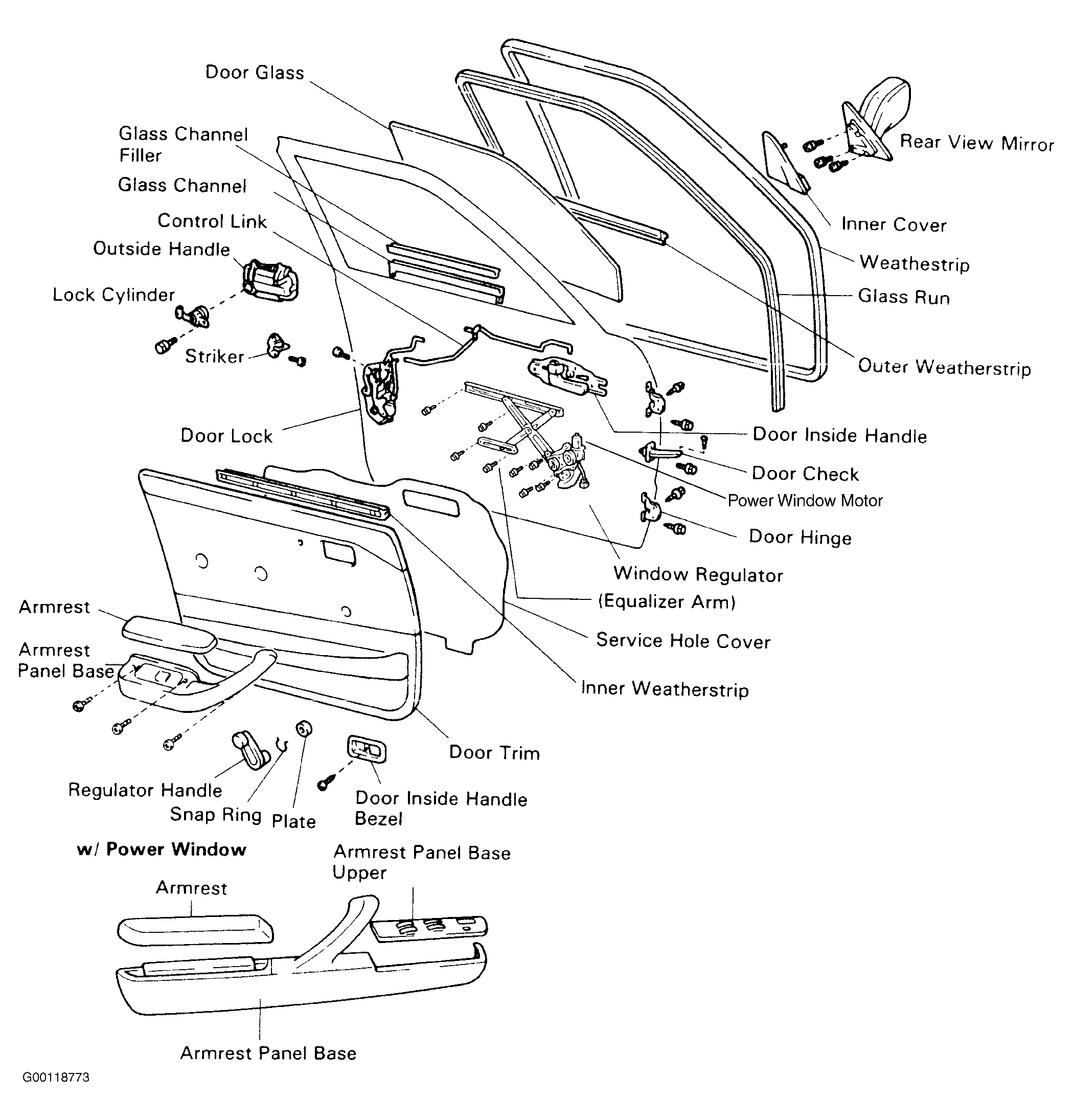

Fig 2: Exploded View Of Front Door Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

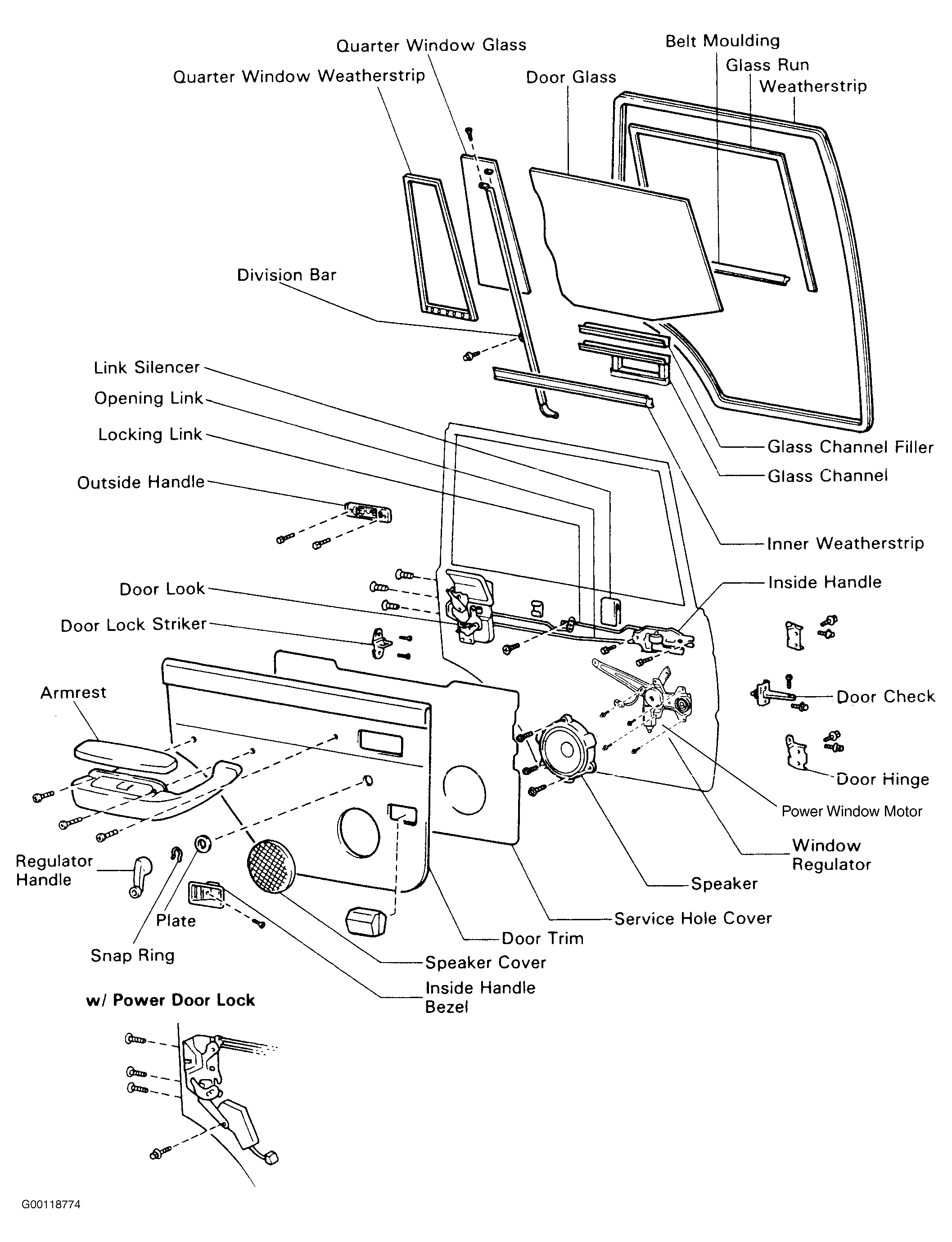

Fig 3: Exploded View Of Rear Door Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

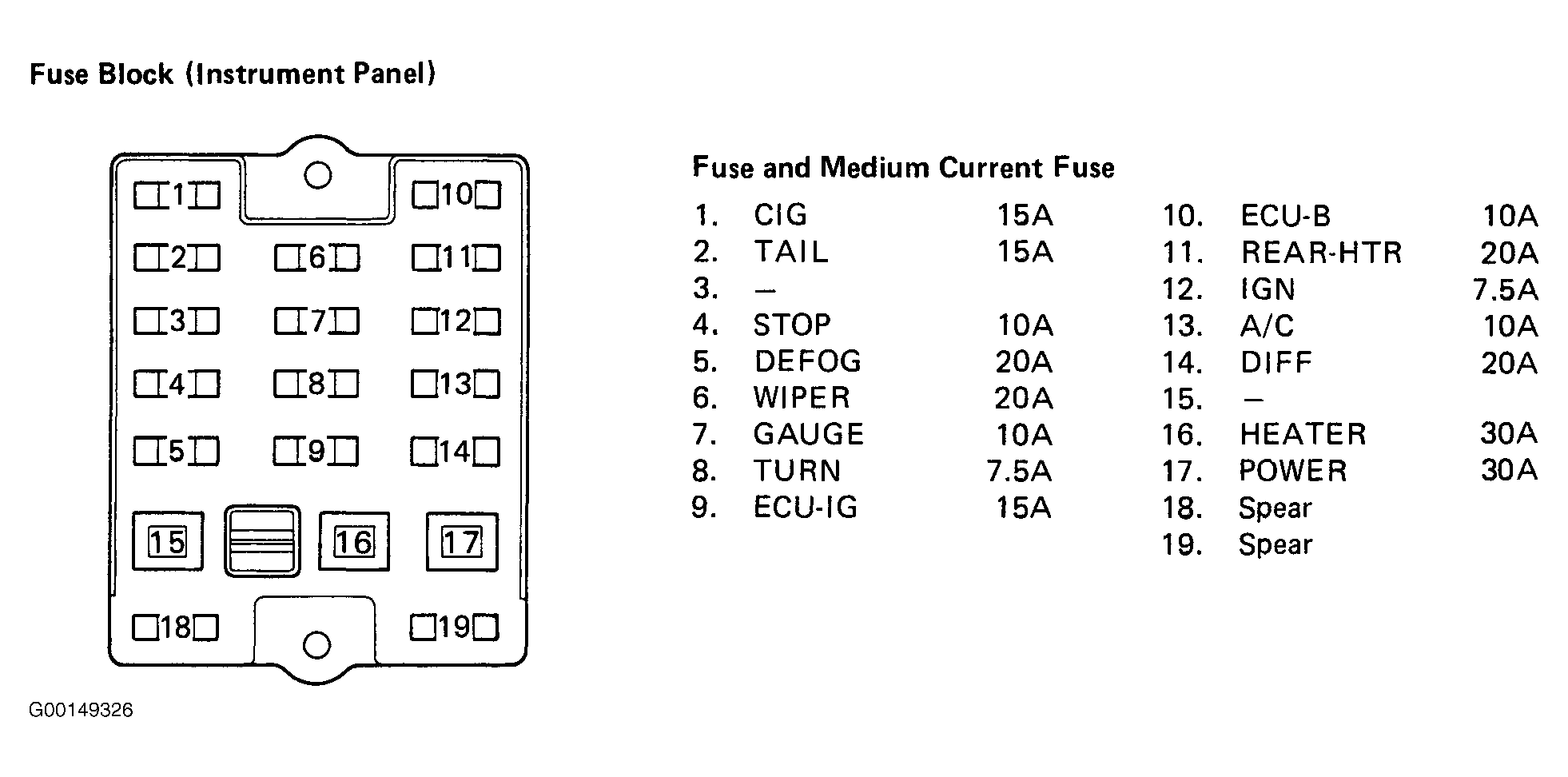

Fig 4: Identifying Fuse Block Fuses

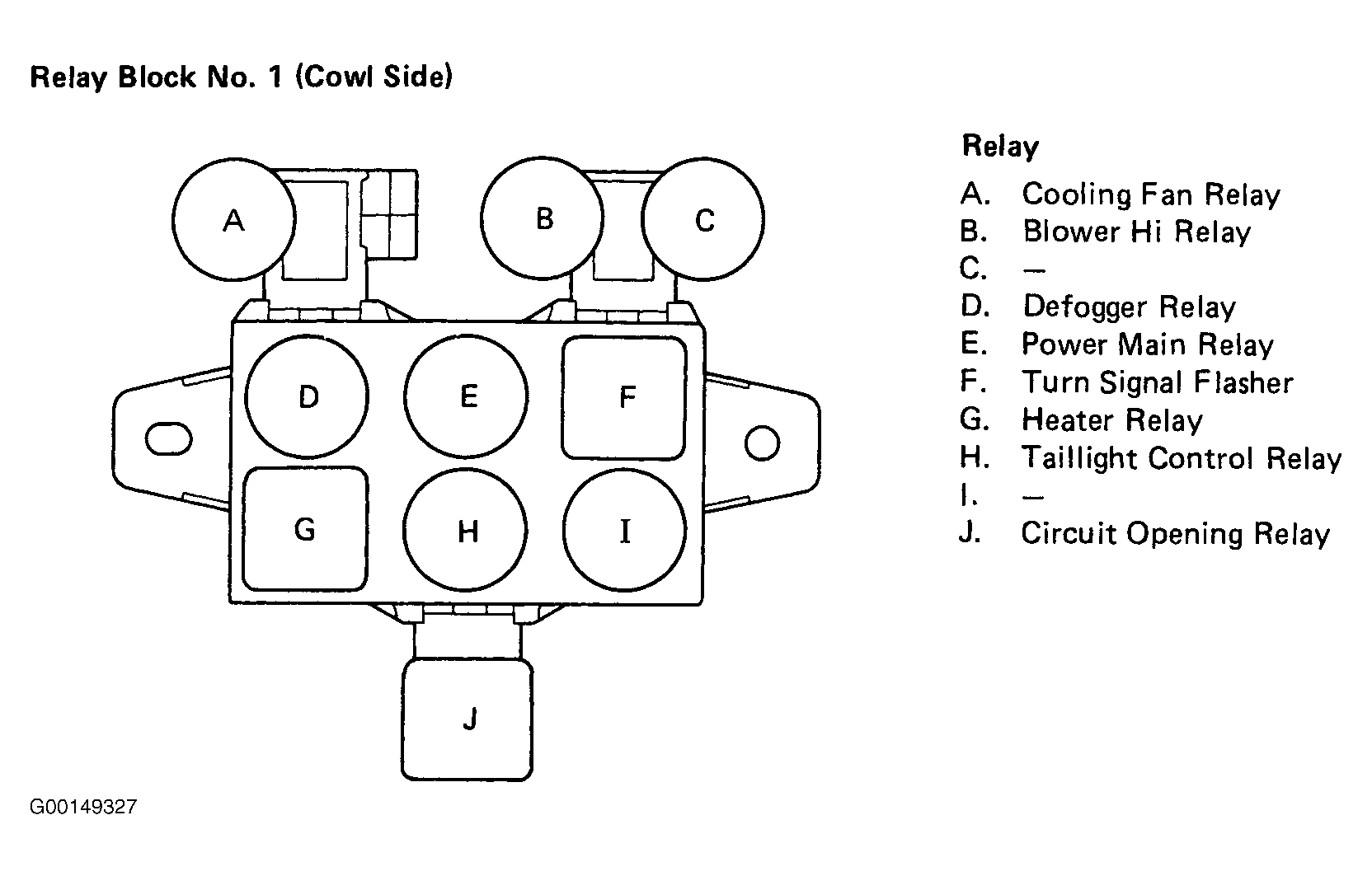

Fig 5: Identifying Relay Block No. 1 Relays
