Test No. 13 - Check Engine Light Circuit

TEST NO. 13-CHECK ENGINE LIGHT CIRCUIT TROUBLE

Terminal Trouble Condition STD Voltage
W-E1(E11) No Voltage No Trouble (Check Engine Light OFF) and Engine Running 10- 14V

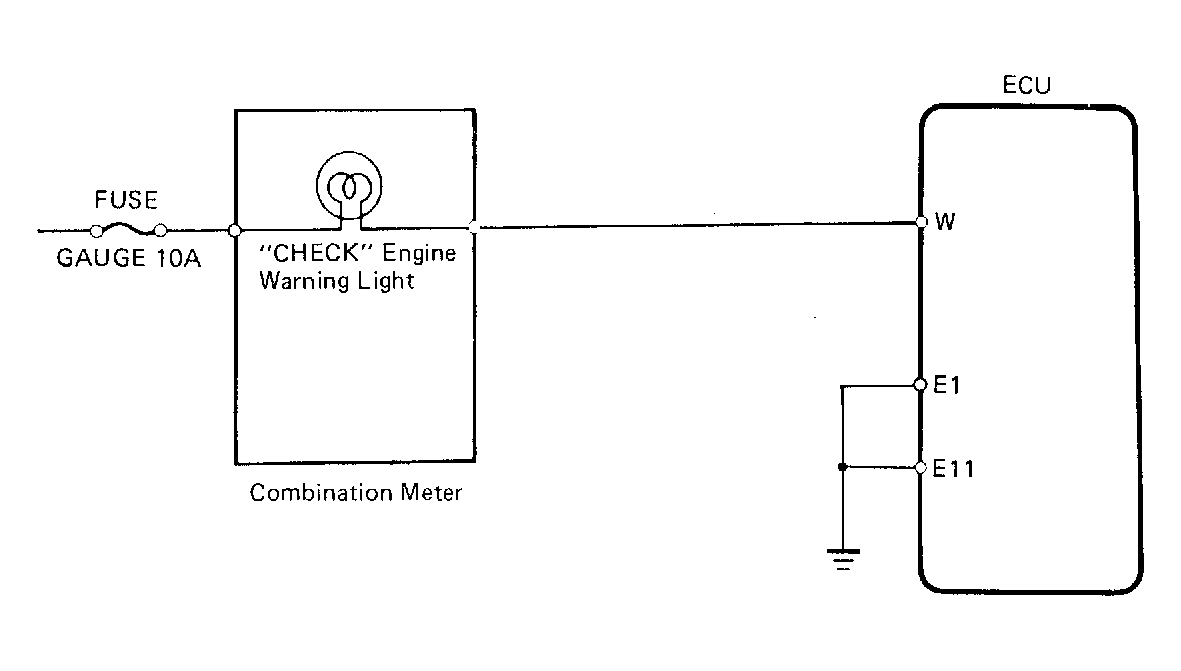

Fig 1: Test No. 13 Schematic Check Engine Light Circuit
G91E18022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

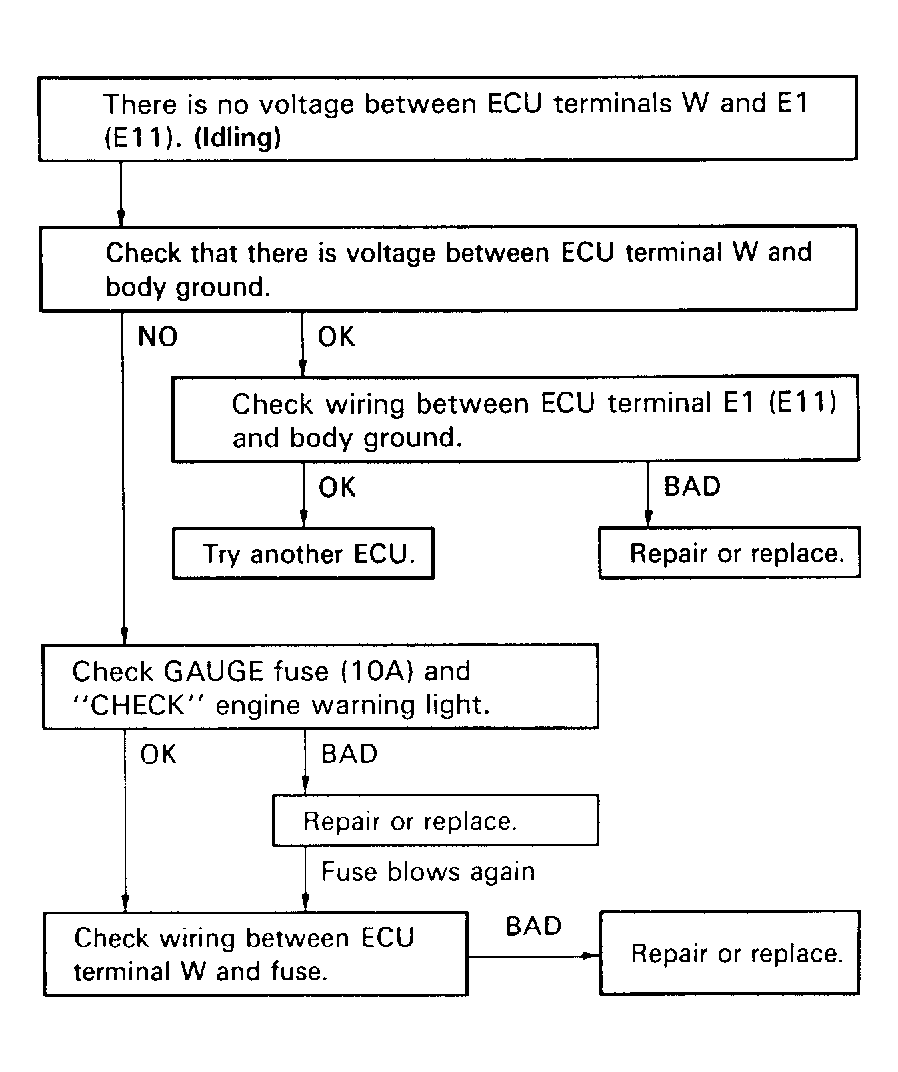

Fig 2: Test No. 13 Flow Chart Check Engine Light Circuit
G91F18023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
