Component Locations

NOTE: Integration relay is located on rear of Junction Block No. 1.

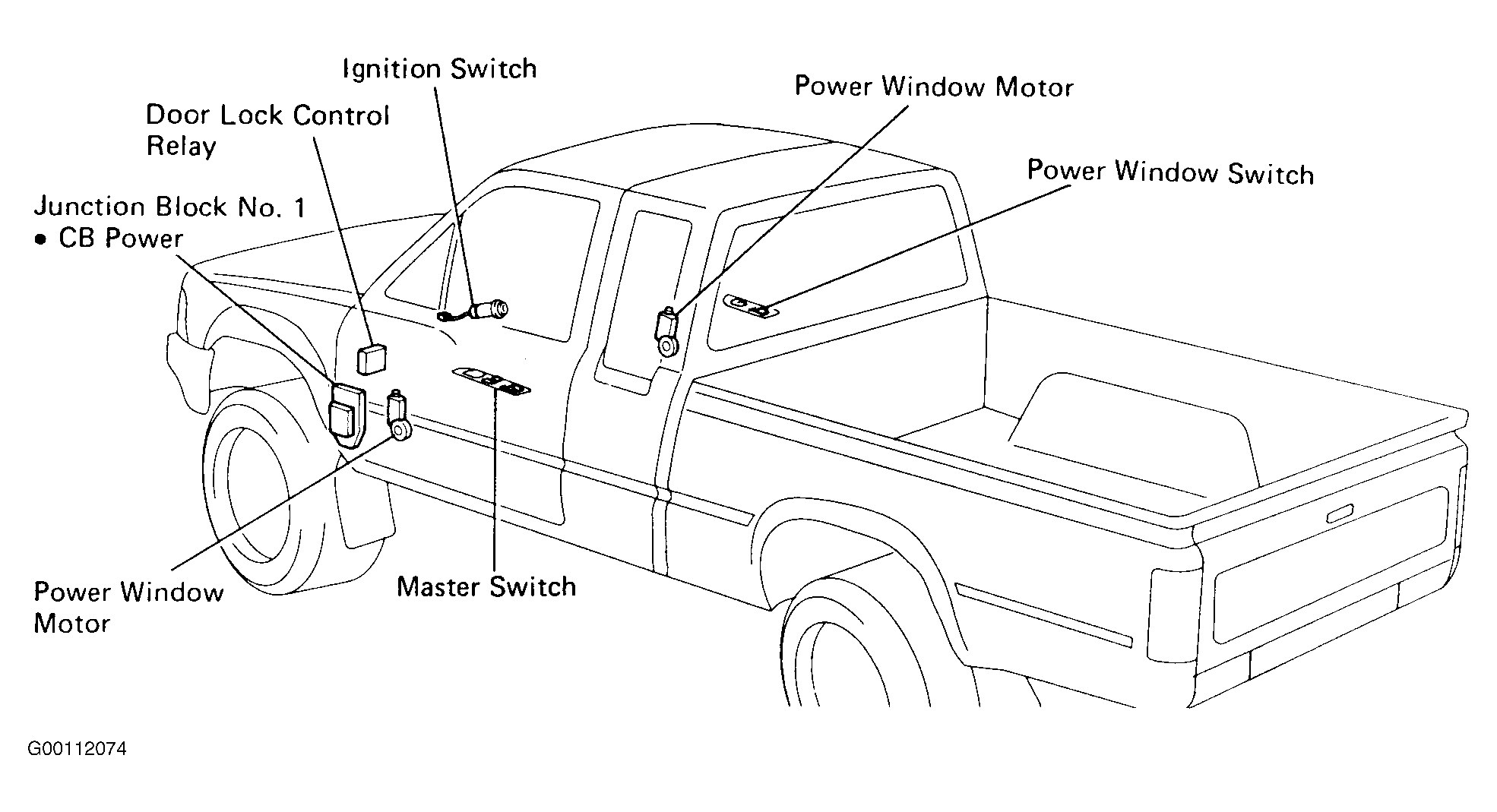

Fig 1: Locating Power Window Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

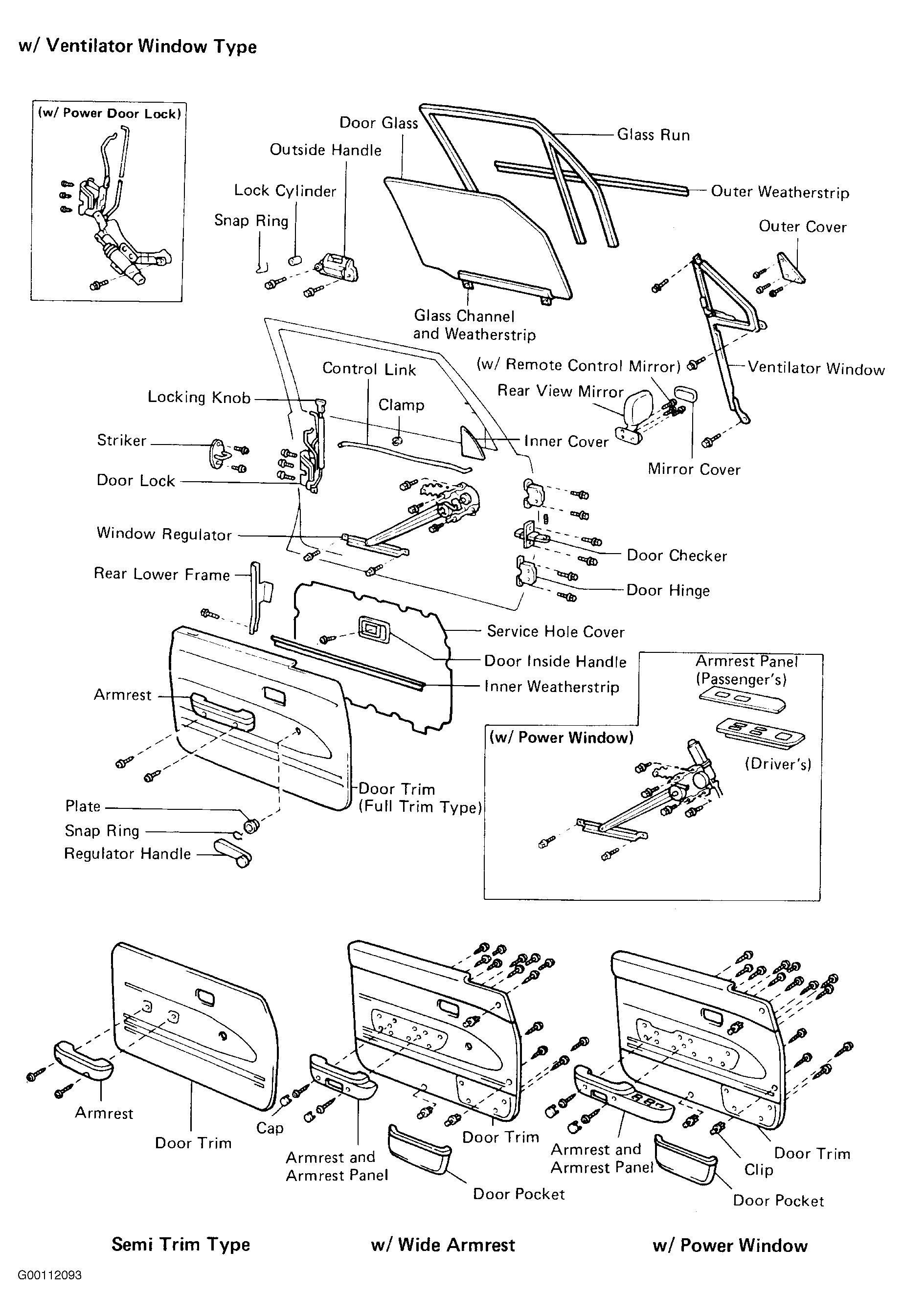

Fig 2: Exploded View Of Front Door (With Ventilator)

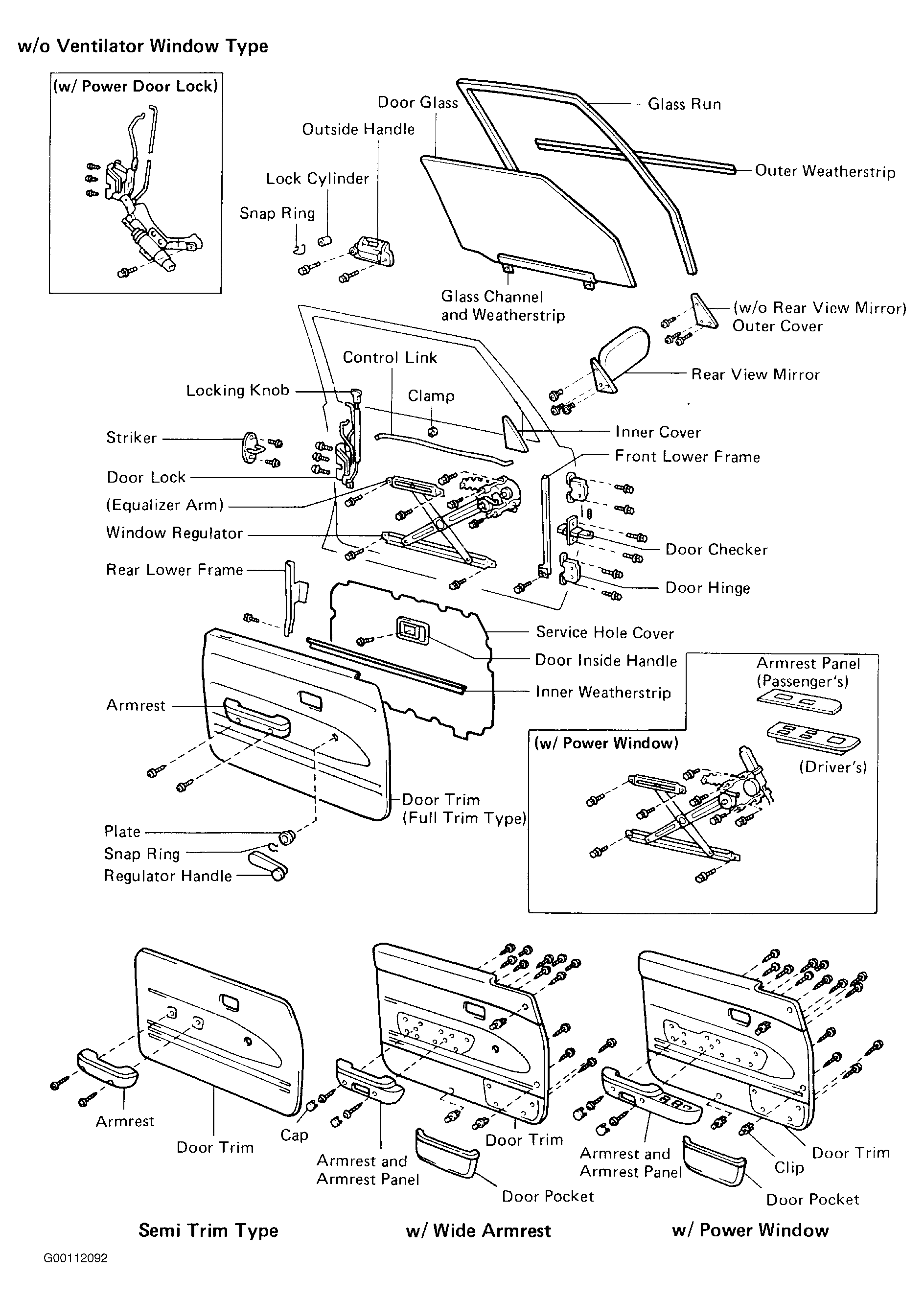

Fig 3: Exploded View Of Front Door (Without Ventilator)
