Fuel Injector Solenoid Resistor (Turbo)
- Ensure ignition is off. Disconnect fuel injector solenoid resistor electrical connector. See FUEL INJECTOR SOLENOID RESISTOR LOCATION table.

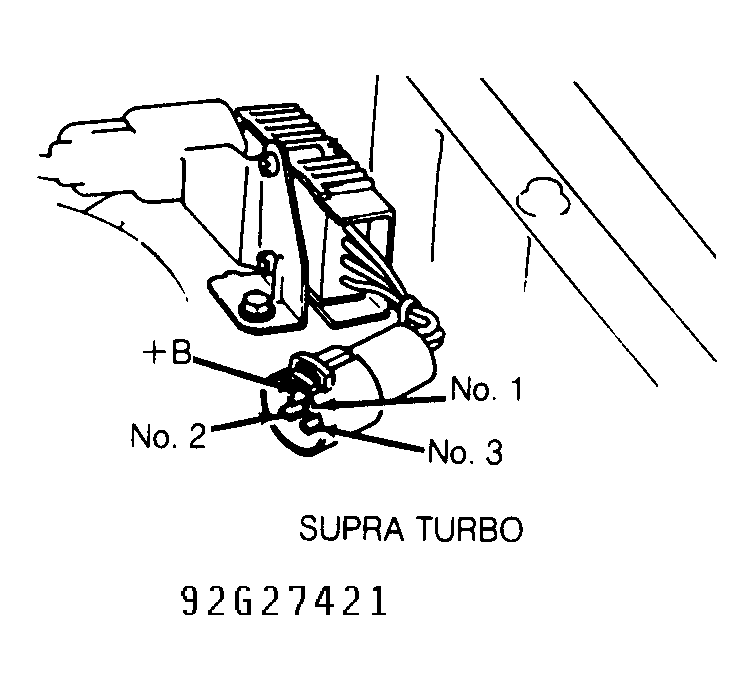

- Using ohmmeter, measure resistance between terminal +B and other solenoid resistor electrical terminals. See Fig 1. Replace fuel injector solenoid resistor if resistance is not within specification. See FUEL INJECTOR SOLENOID RESISTOR SPECIFICATIONS table.
NOTE:
Fuel injector solenoid resistor may also be identified by appropriate illustration in THEORY/OPERATION
article in the ENGINE PERFORMANCE Section.
FUEL INJECTOR SOLENOID RESISTOR LOCATION
| Application | Location |
|---|---|
| Turbo | Left Rear Corner Of Engine Compartment, Near Strut Tower |
FUEL INJECTOR SOLENOID RESISTOR SPECIFICATIONS
| Application | Ohms |
|---|---|
| Turbo | 3 |
