Exhaust Gas RECIRCULATION (EGR): Notes
NOTE:

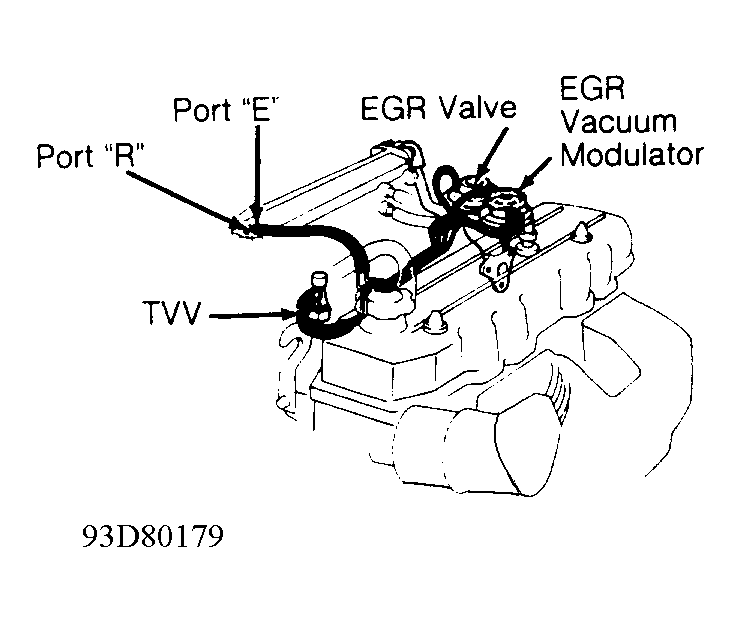

EGR systems contain different components and have different operating parameters depending on application. See Figure-36. When testing EGR system and components, use proper illustration to determine component location.
EGR TESTING SPECIFICATIONS
| Application Type | Minimum Temperature | Engine RPM | |||
|---|---|---|---|---|---|
| 2.4L | |||||
| Calif. Models | 93°F (34°C) | (1) 3500 | |||
| All Others | 86°F (30°C) | (1) 3500 | |||
| 3.0L | 118°F (48°C) | 3500 | |||
|
|||||
