Pick-Up Coil Resistance

Note pick-up coil terminal identification on the distributor. See Fig 1. Using ohmmeter, measure resistance between specified terminals. See PICK-UP COIL RESISTANCE SPECIFICATIONS table.
Replace distributor assembly if pick-up coil resistance is not within specification.

PICK-UP COIL RESISTANCE SPECIFICATIONS

Application Type

Terminals Tested

Pick-Up Coil ⁽¹⁾ Ohms

Corolla

G+ & G-

185-275

Corolla

NE+ & NE-

370-550

⁽¹⁾	With pick-up coil temperature at 14-104°F (-10-40°C).

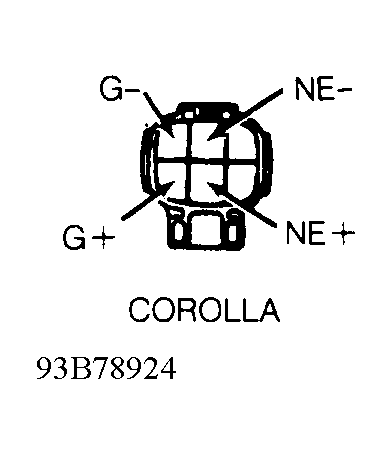

Fig 1: Pick-Up Coil Terminal I.D. (Corolla)
