Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location | |
|---|---|---|

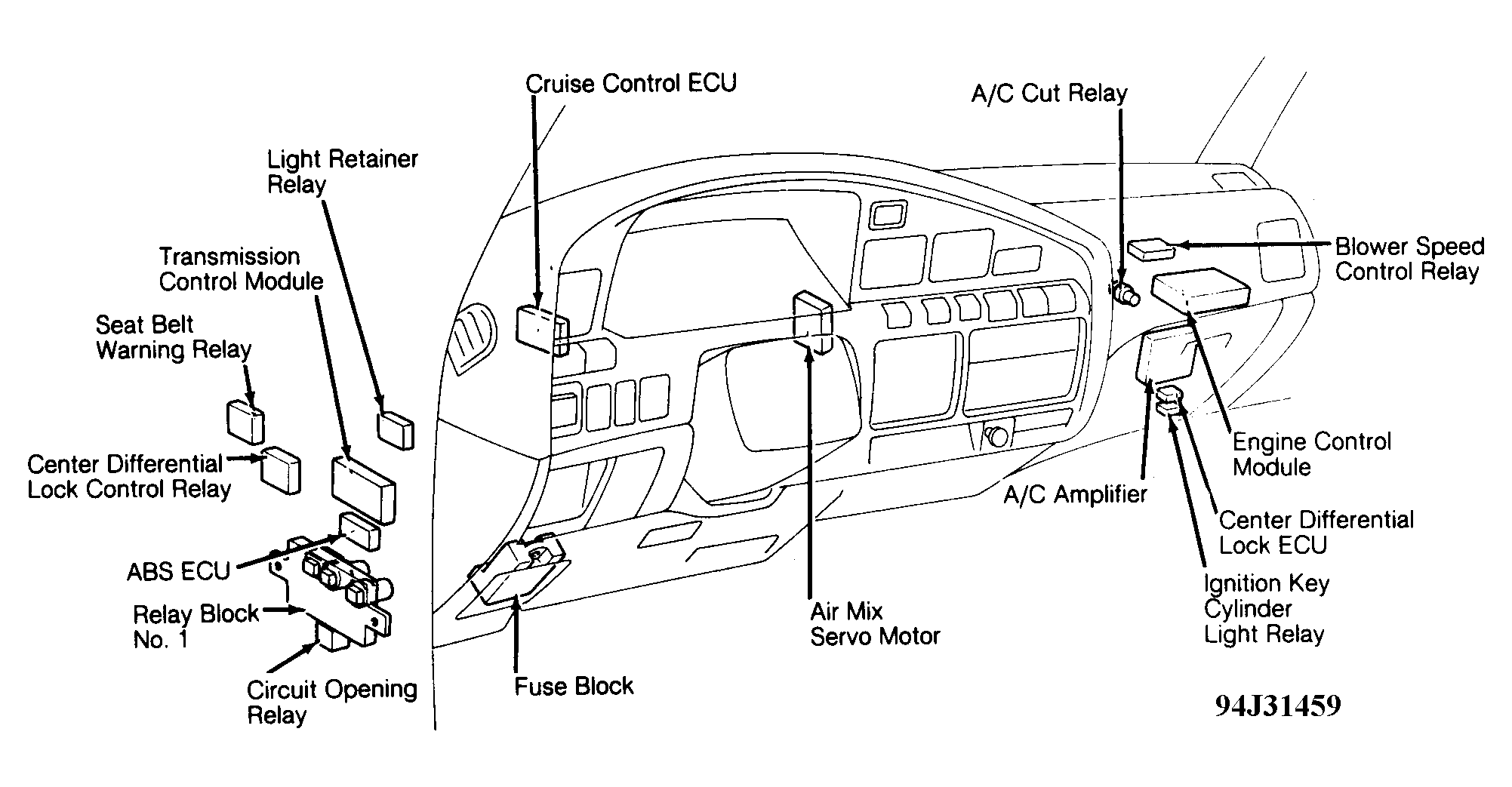

| A/C Amplifier | On front right side of evaporator housing. See Figure. | |
| Air Mix Servomotor Amplifier | Behind left side of dash, right of steering column. | |
| Blower Motor Resistor | ||
| Front | On blower motor housing, near A/C amplifier. | |
| Rear | On rear blower motor housing, at rear of center console. | |
| Diagnostic Connector (DCL) | On right side of firewall, near wiper motor. | |

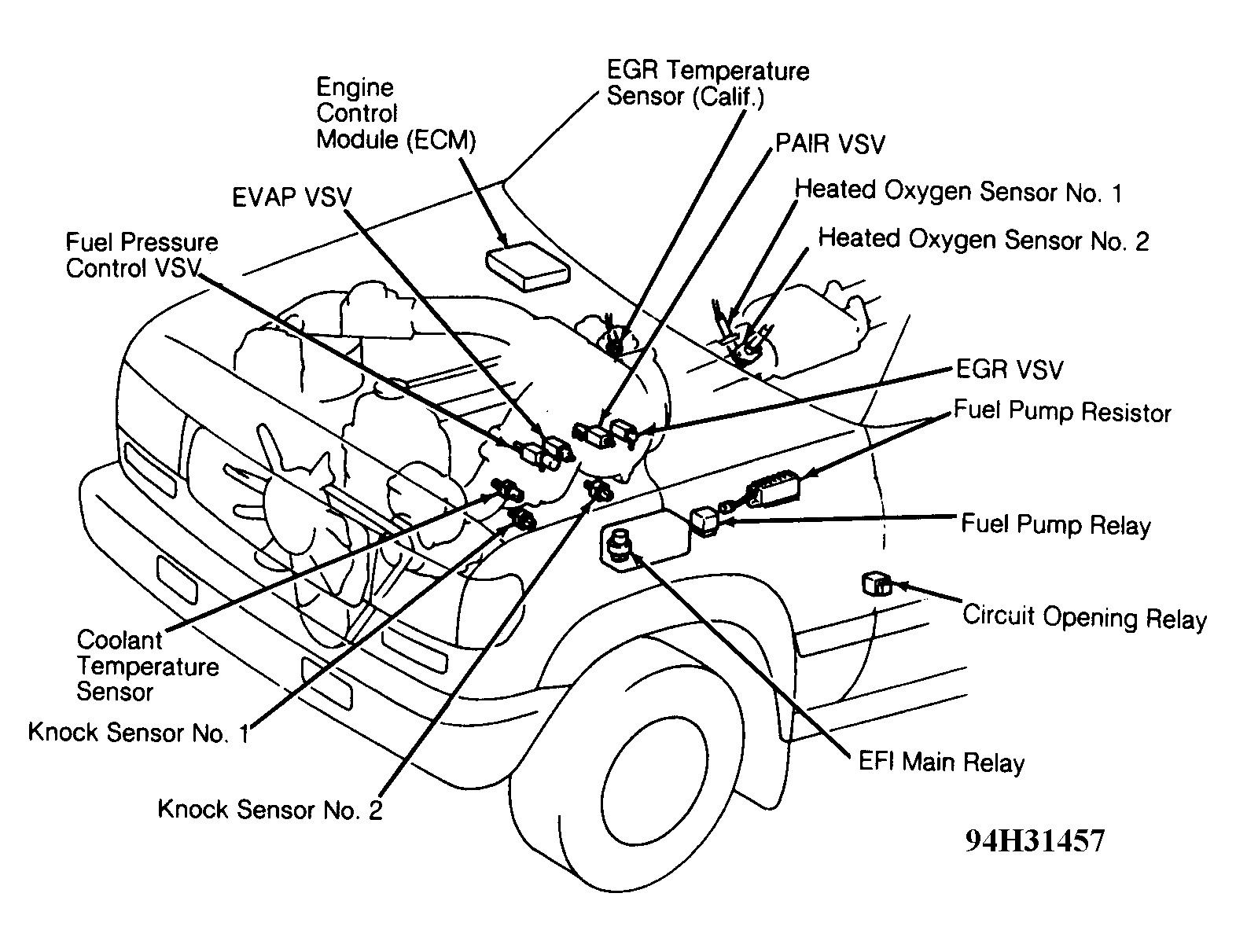

| Fuel Pump Resistor | On left rear inner fender panel. See Figure. | |
