Code 28 - No. 2 Oxygen Sensor Signal

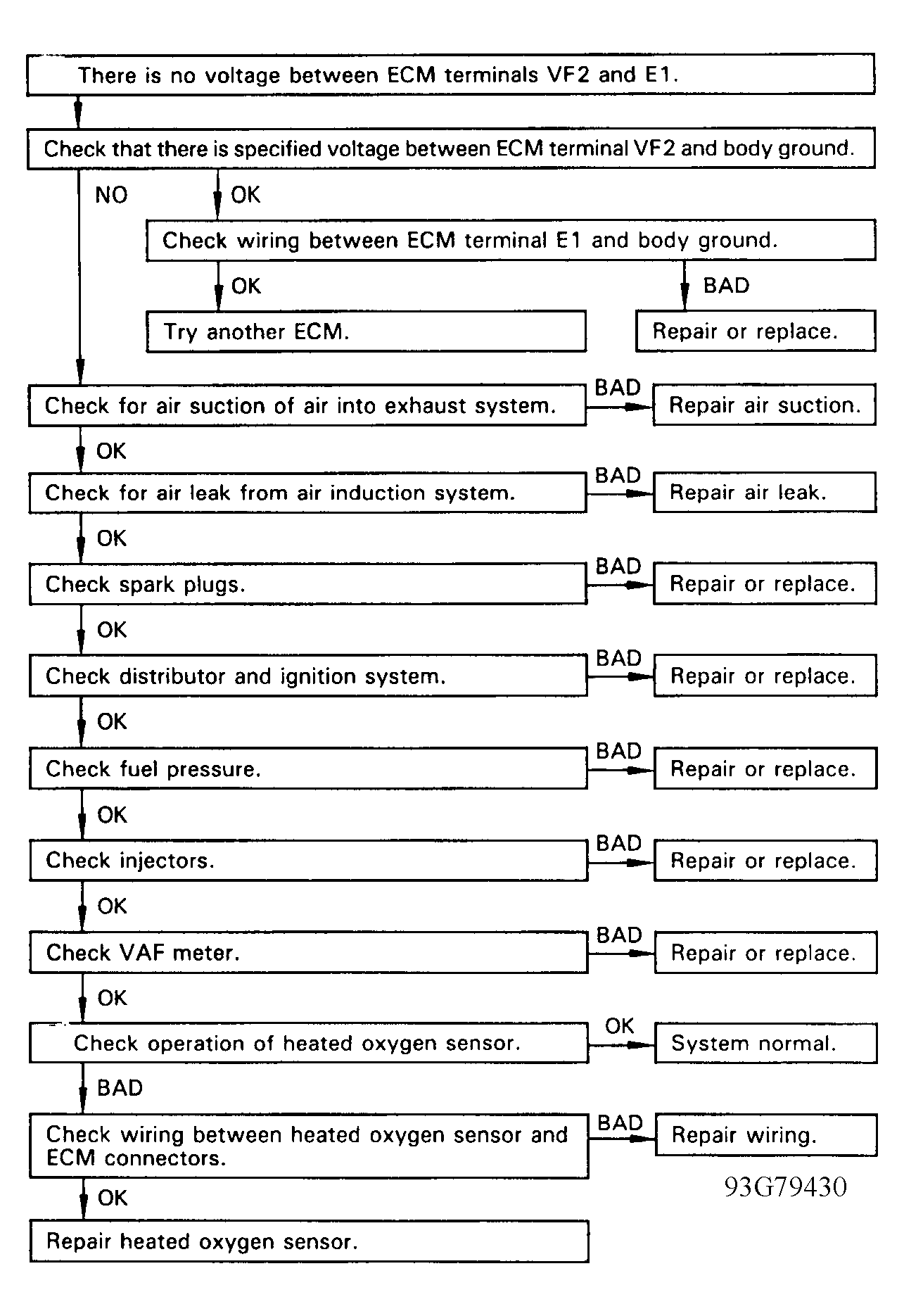

Fig 1: Code 28 Flow Chart - No. 2 Oxygen Sensor Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

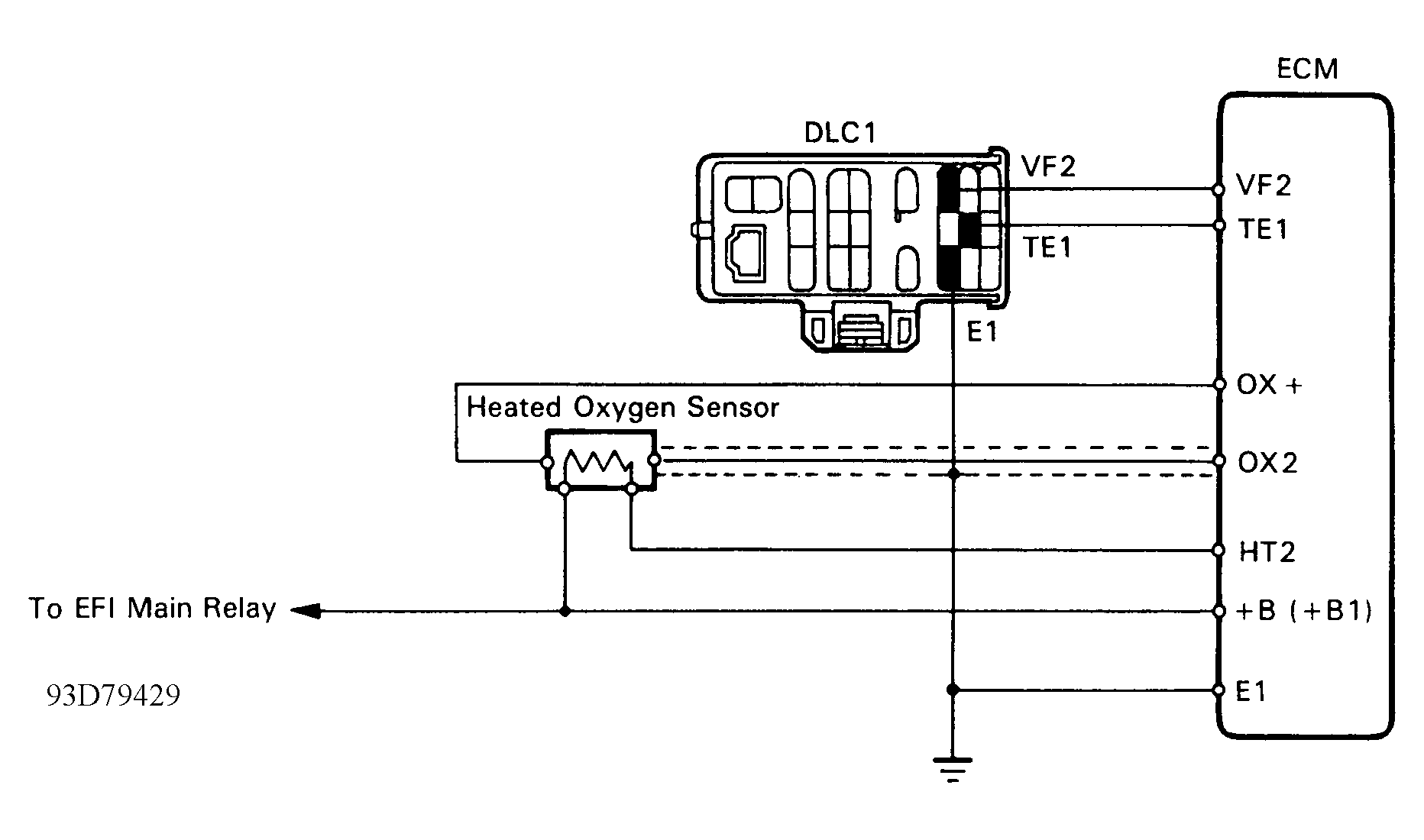

Fig 2: Code 28 Schematic - No. 2 Oxygen Sensor Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
