Fuel Injector Solenoid Resistor
- Ensure ignition is off. Disconnect fuel injector solenoid resistor electrical connector. See FUEL INJECTOR SOLENOID RESISTOR LOCATION table.NOTE: Fuel injector solenoid resistor may also be identified using appropriate illustration in THEORY/OPERATION article. On MR2 Turbo, ensure proper resistor is checked, as fuel pump resistor is located near fuel injector solenoid resistor.

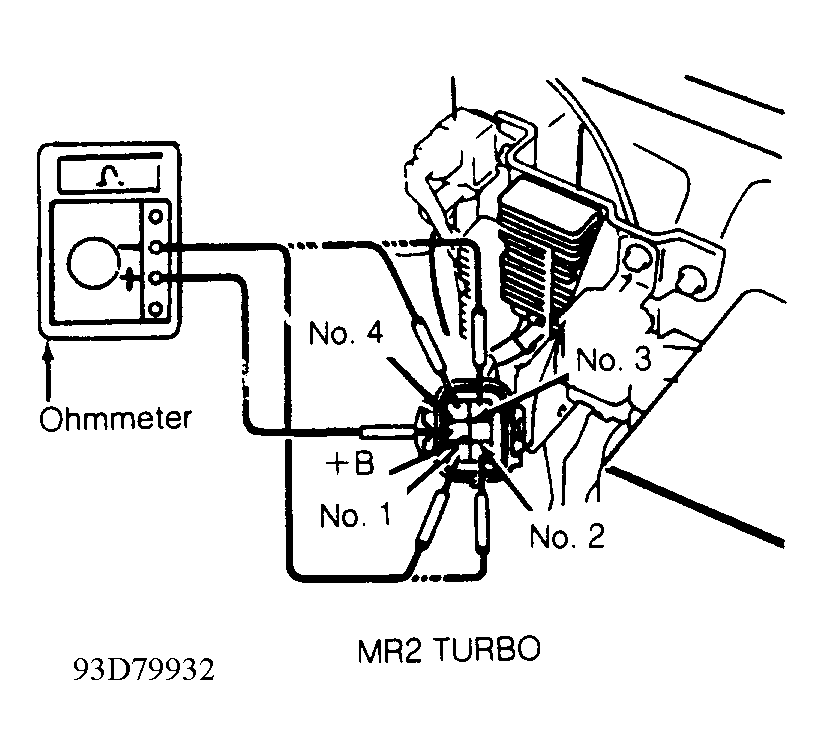

- Using ohmmeter, measure resistance between terminal +B and other fuel injector solenoid resistor electrical terminals. See Fig 1. Replace fuel injector solenoid resistor if resistance is not within specification. See FUEL INJECTOR SOLENOID RESISTOR SPECIFICATIONS table.
FUEL INJECTOR SOLENOID RESISTOR LOCATION
| Application | Location |
|---|---|
| MR2 Turbo | Driver's Side Rear Corner Of Engine Compartment, Near ECM & Contains 5-Wire Connector |
FUEL INJECTOR SOLENOID RESISTOR SPECIFICATIONS
| Application | Ohms |
|---|---|
| MR2 Turbo | 4-6 |
