Fuel Evaporation: Notes

NOTE: Fuel evaporation systems contain different components and have different operating parameters depending on application. See Fig 1-42.

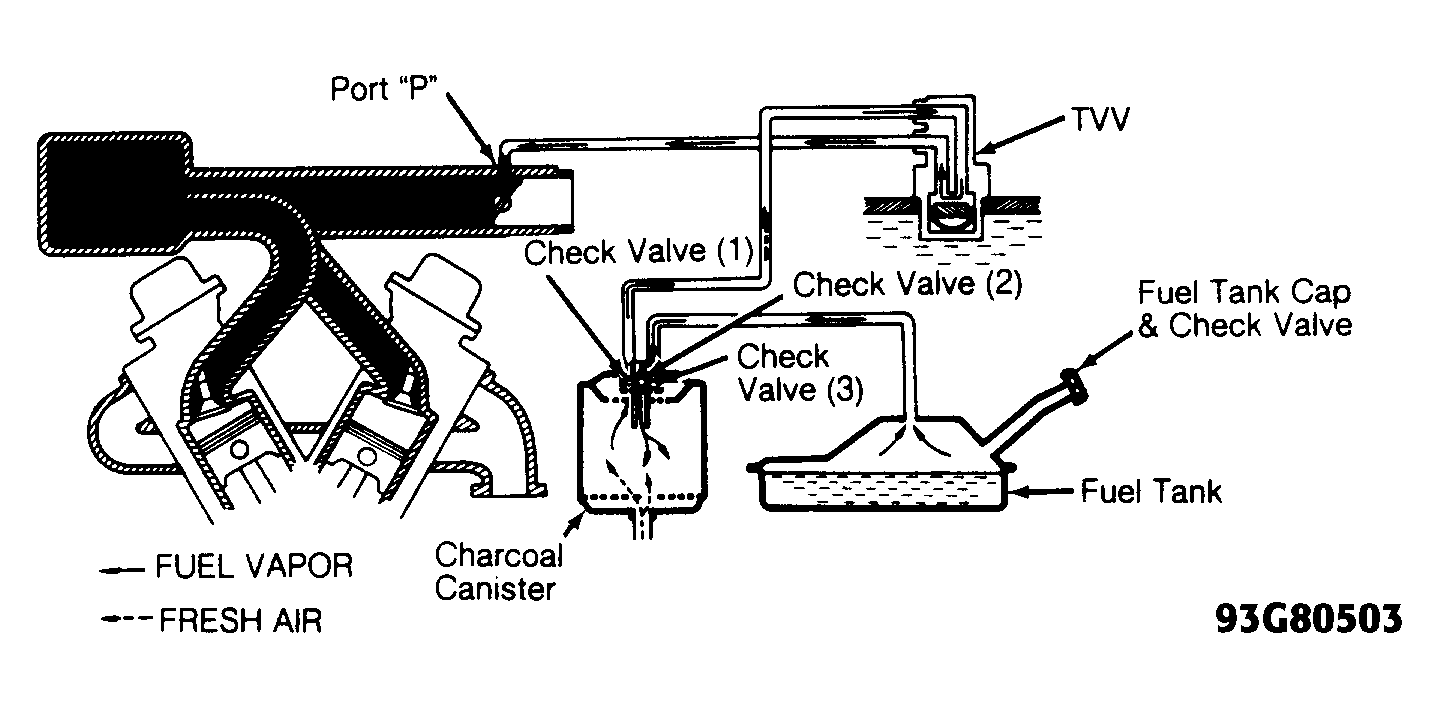

Fig 1: Identifying Fuel Evaporation System Components (3.0L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

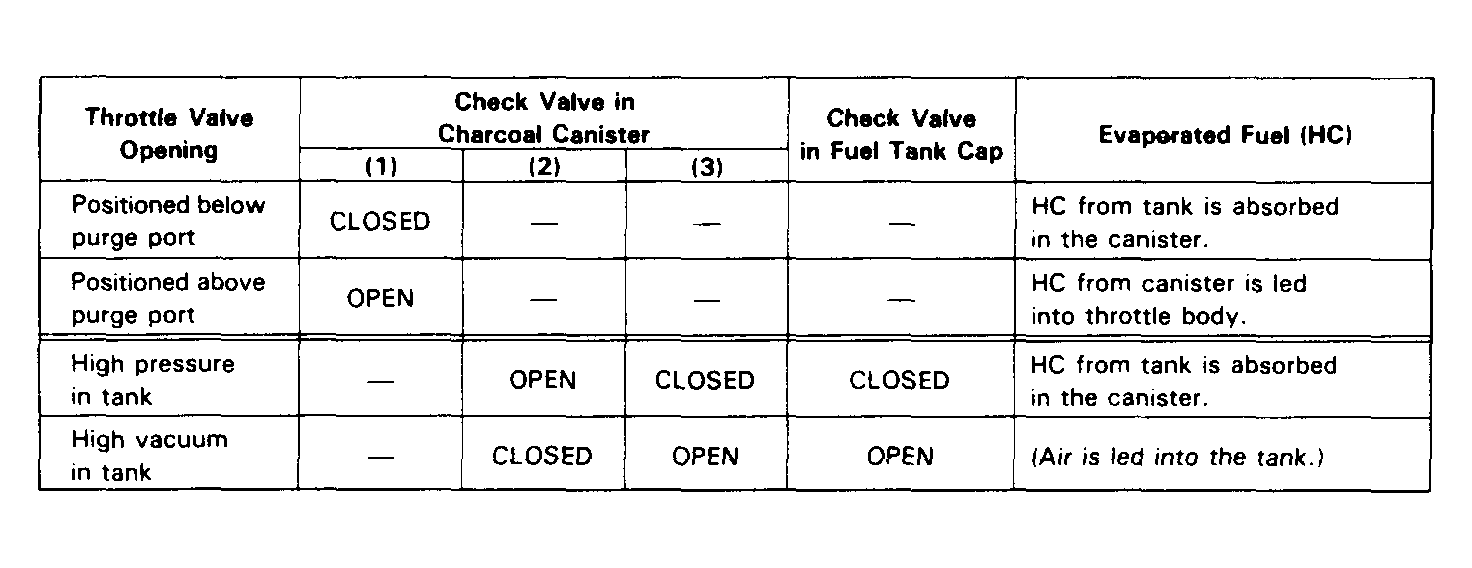

Fig 2: Fuel Evaporation System Operating Parameters (3.0L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

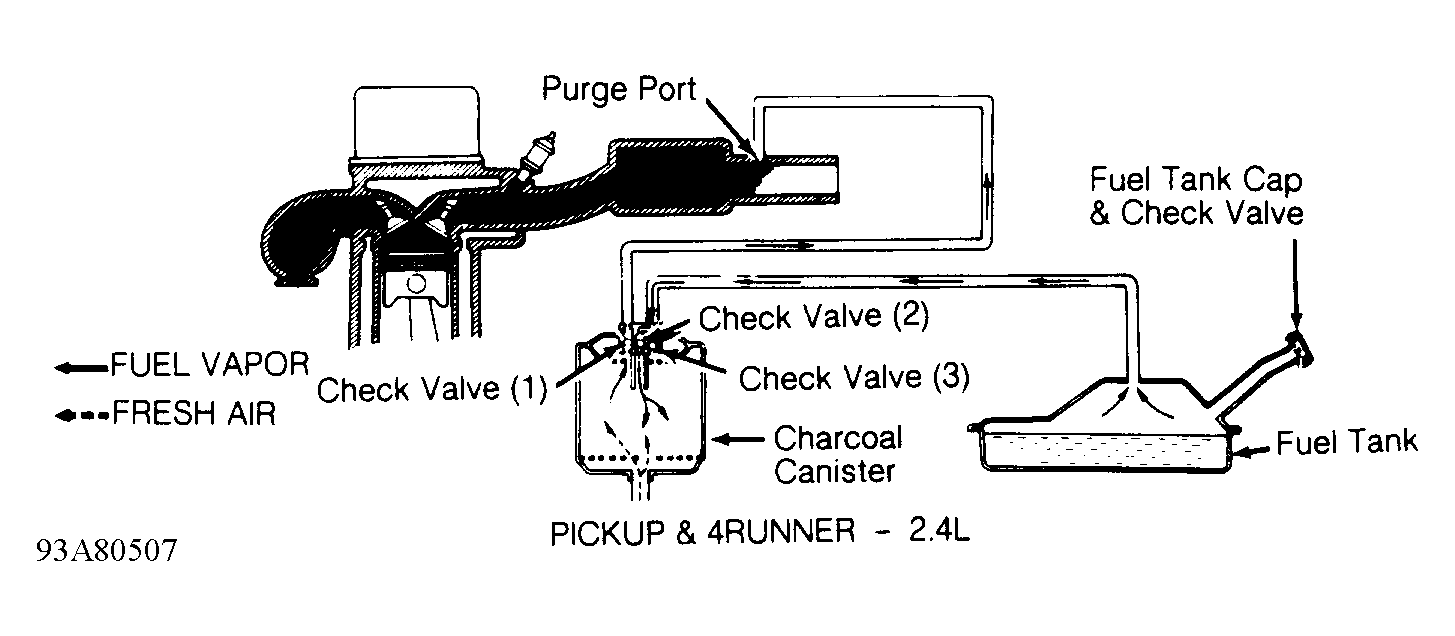

Fig 3: Identifying Fuel Evaporation System Components (2.4L)

Fig 4: Fuel Evaporation System Operating Parameters (2.4L)

NOTE: The Bimetallic Vacuum Switching Valve (BVSV) may be referred to as a Thermal Vacuum Valve (TVV).
