Fuel Evaporation: Notes

NOTE: Fuel evaporation systems contain different components and have different operating parameters depending on application. See Fig 1 and Fig 2 .

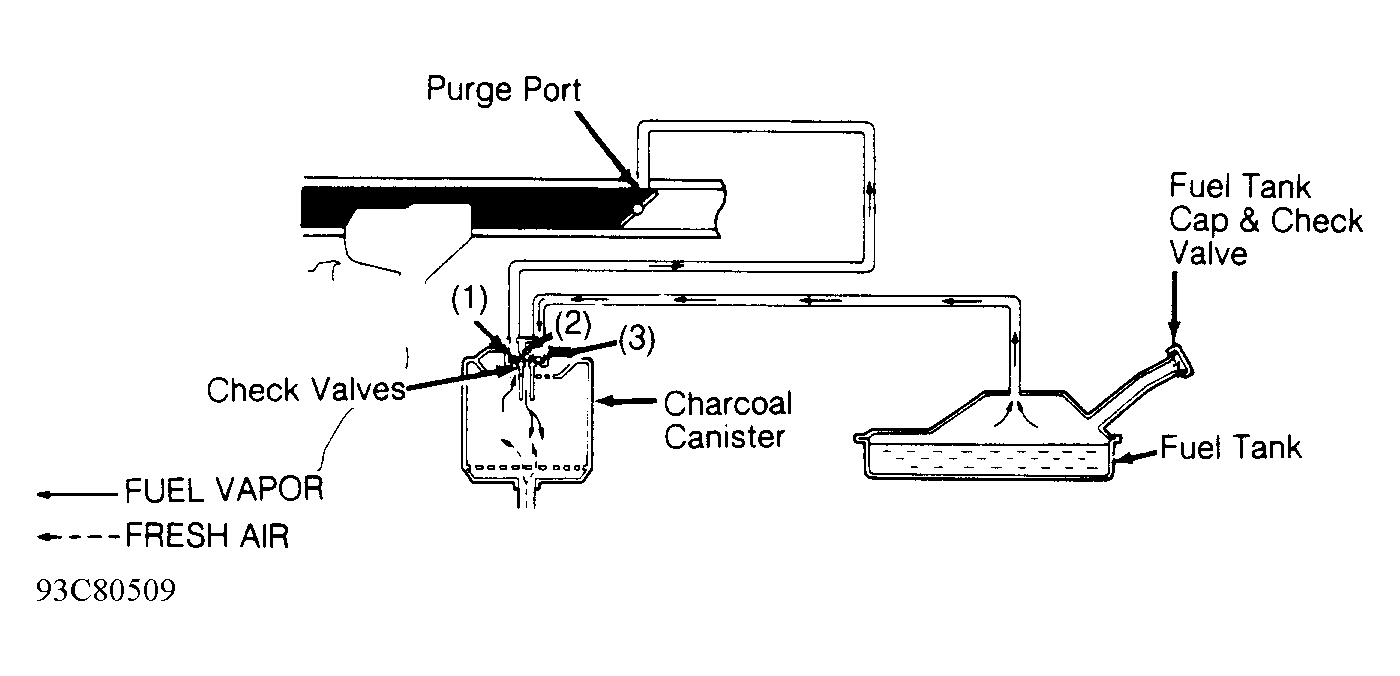

Fig 1: Identifying Fuel Evaporation System Component Operation
G93C80509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

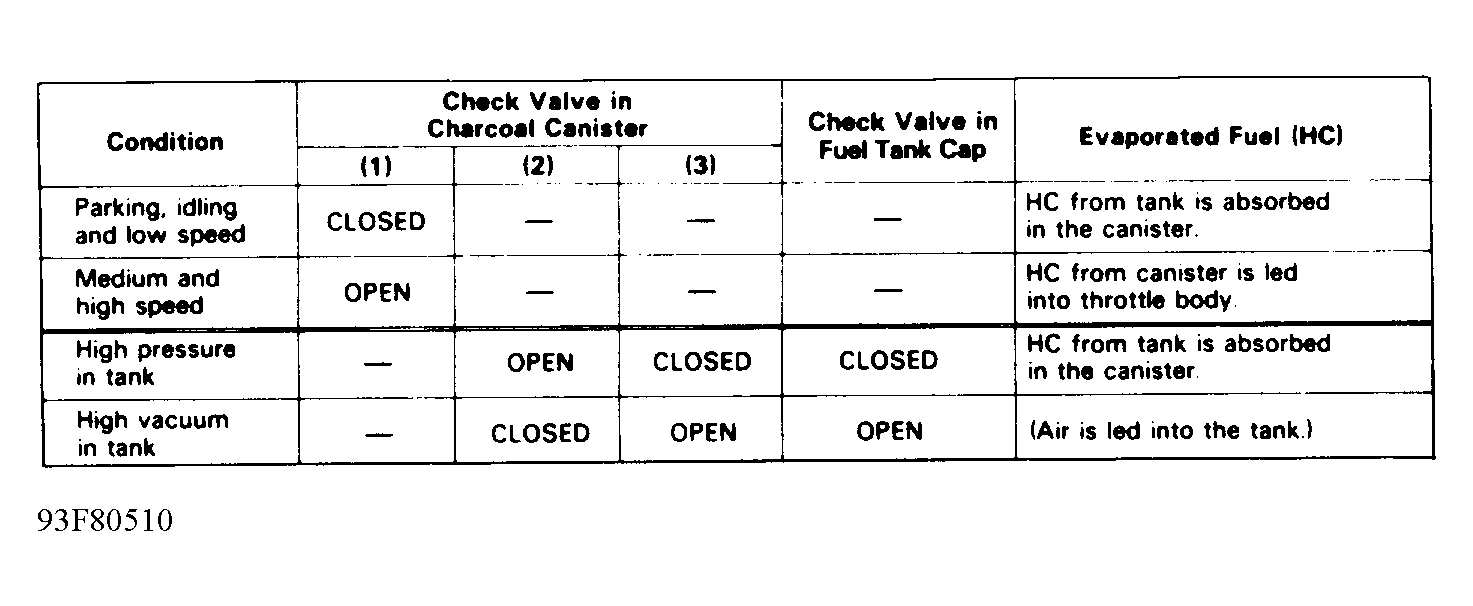

Fig 2: Identifying Fuel Evaporation System Operating Parameters
G93F80510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
