Code 14/Test No. 2 - Ignition Signal

NOTE: To check ignition system components, see I - SYS/COMP TESTS article in the ENGINE PERFORMANCE Section.

CODE 14/TEST NO. 2-IGNITION SIGNAL TROUBLE

Terminals	Trouble	Condition	STD Voltage
IGT - E1	No Voltage	Cranking or Idling	0.7-1.0V

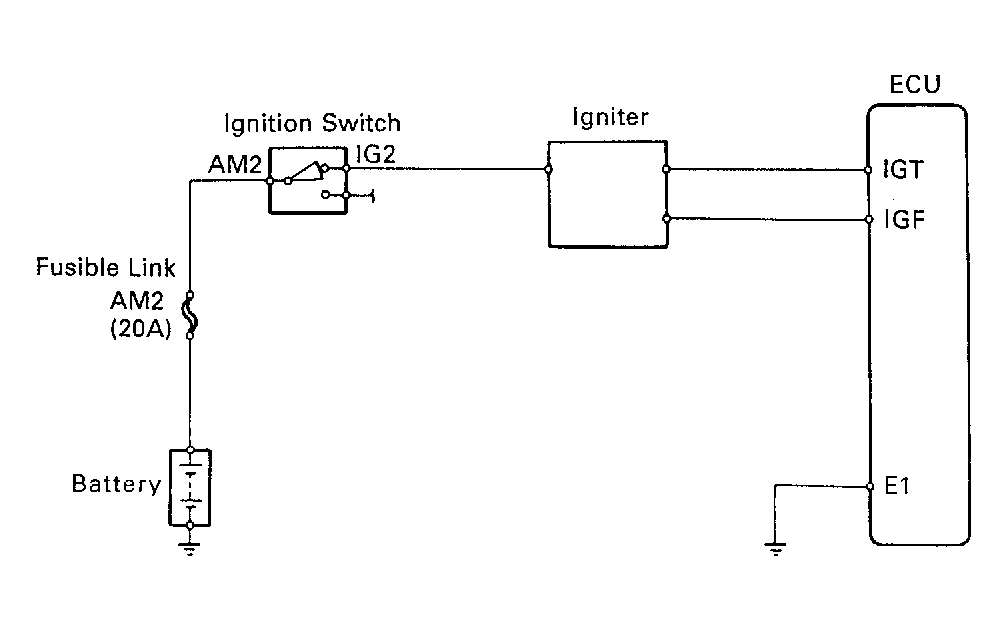

Fig 1: Code 14/Test No. 2 Schematic Ignition Signal

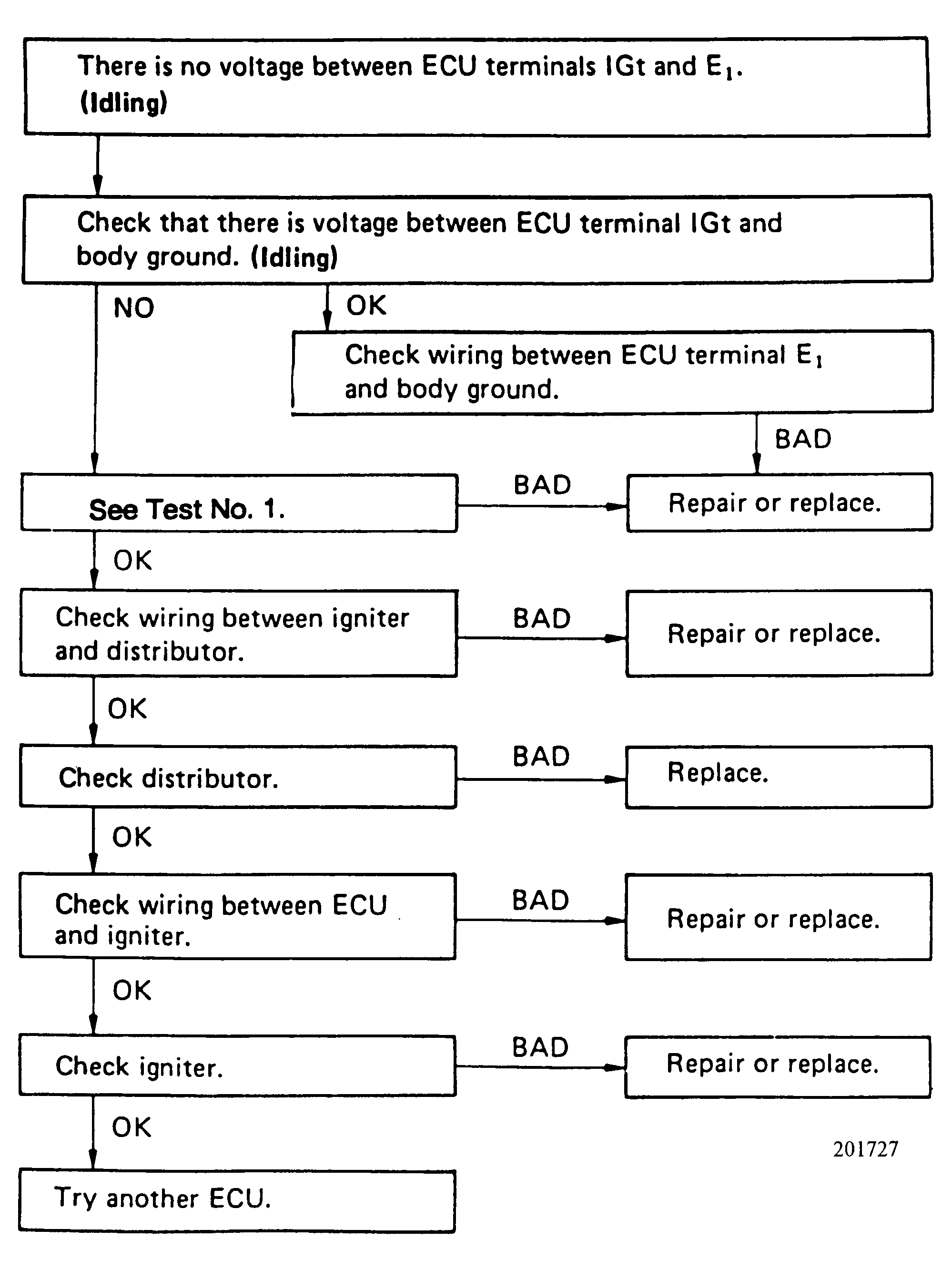

Fig 2: Code 14/Test No. 2 Flow Chart Ignition Signal
