Crankshaft Position Sensor: Installation

Install crankshaft position sensor. Tighten mounting bolt to 78 INCH lbs. (8.8 N.m). Connect crankshaft position sensor connector and install alternator. Connect negative battery cable.

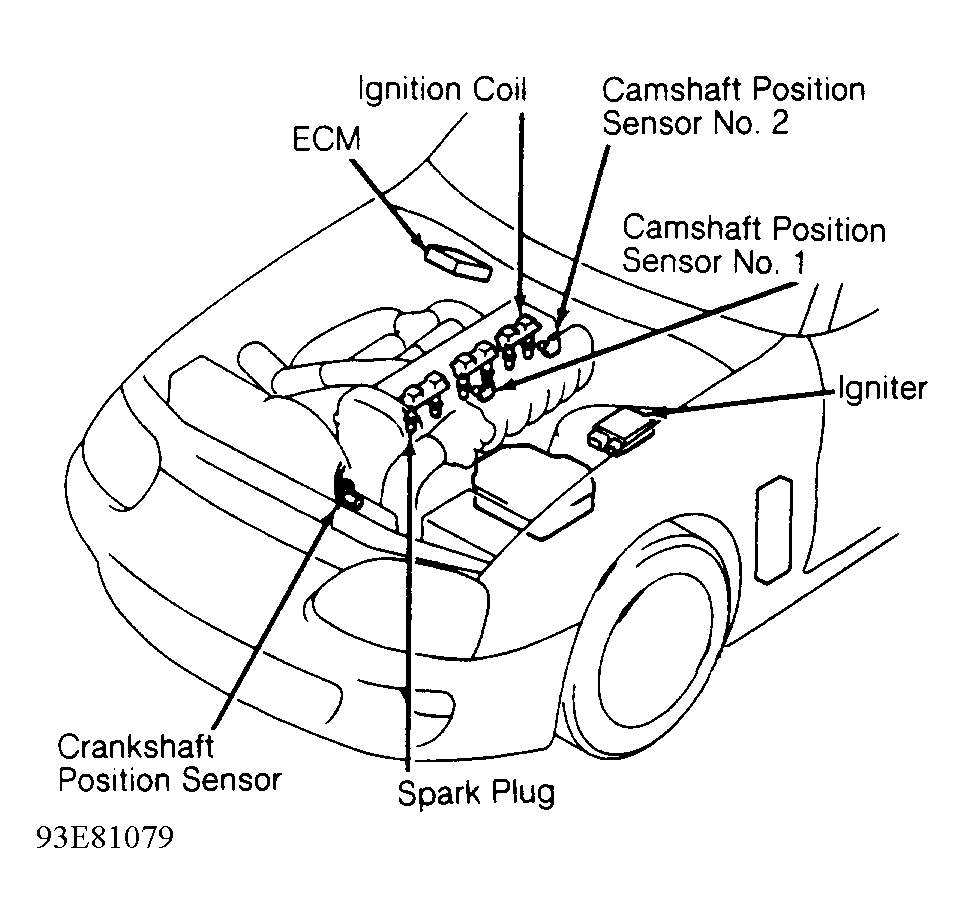

Fig 1: Locating Camshaft & Crankshaft Position Sensors (Supra 3.0L Turbo 2JZ-GTE)
G93E81079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
