Testing Anti-Theft Circuits: Notes

NOTE: Perform all tests using a volt-ohmmeter with a minimum 10-megohm input impedance. See Fig 3- Fig 5 for additional circuit testing.

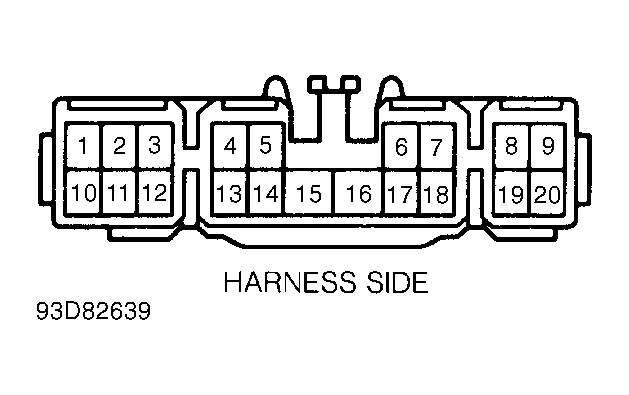

Fig 1: Anti-Theft ECU Connector Terminal ID (W/O Power Door Locks)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

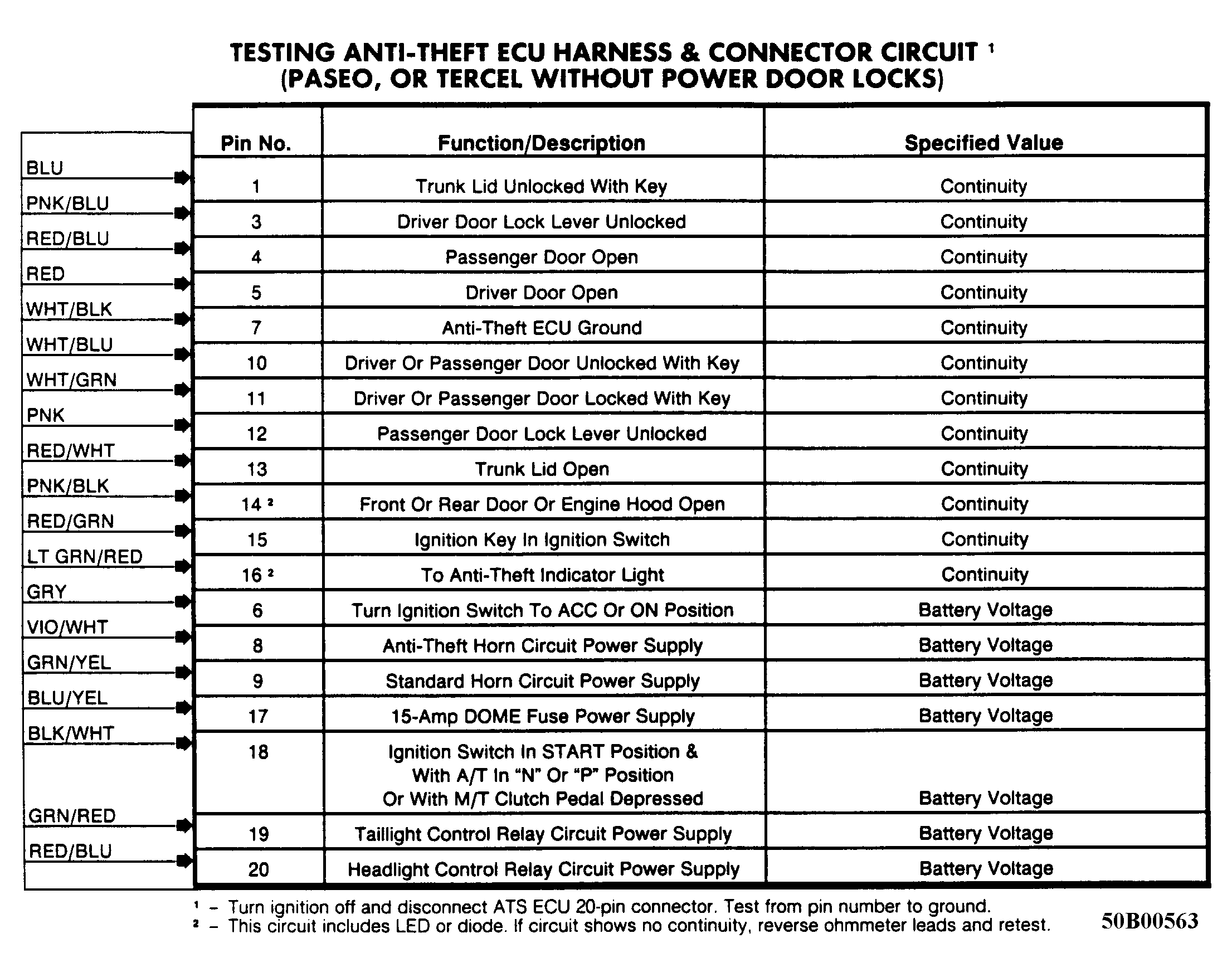

Fig 2: Testing Anti-Theft ECU Harness & Connector Ckt. W/O Power Door Locks)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

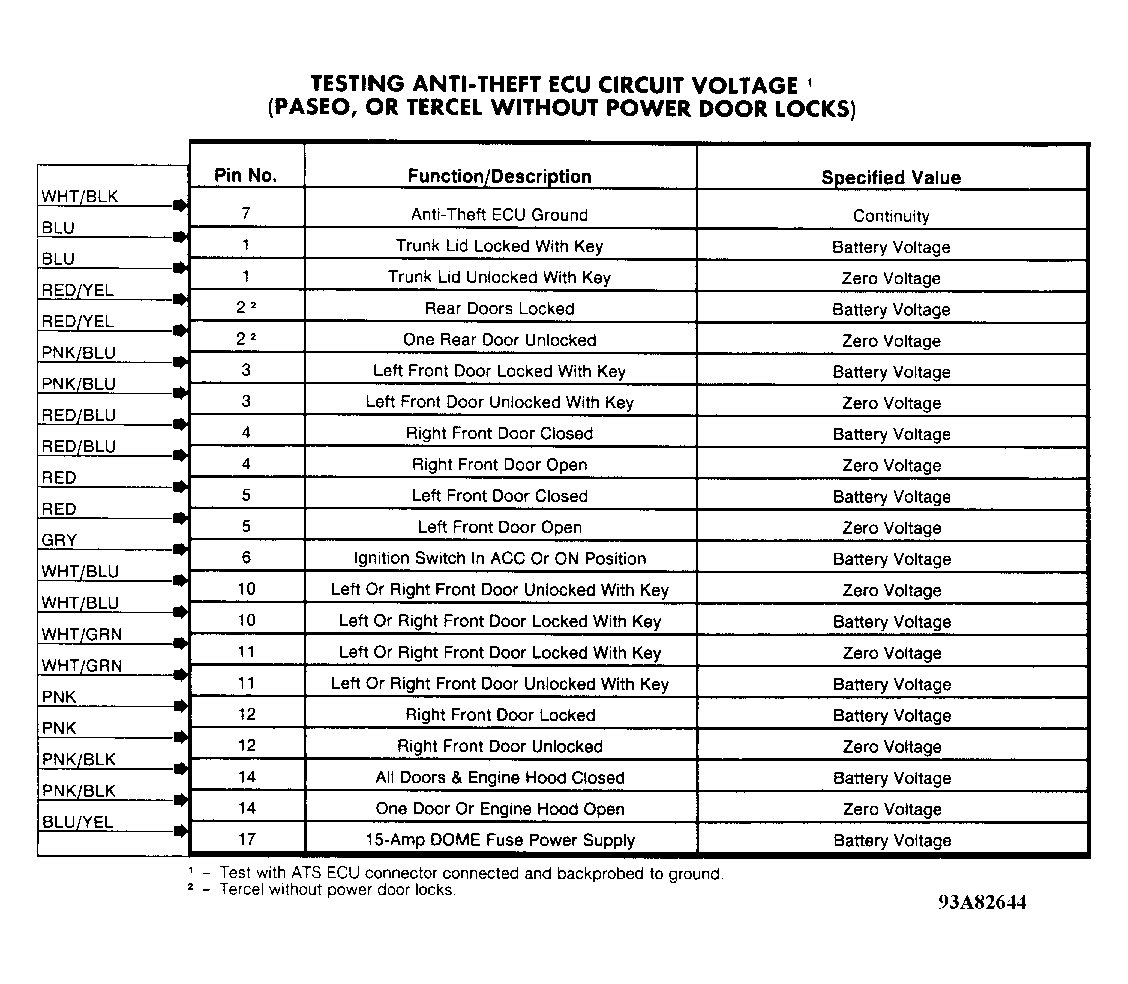

Fig 3: Testing Anti-Theft ECU Ckt. Voltage (W/O Power Door Locks)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

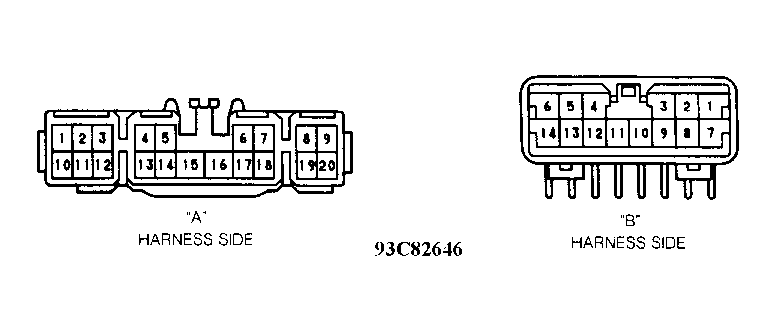

Fig 4: Anti-Theft ECU Connector Terminal ID (W/Power Door Locks)

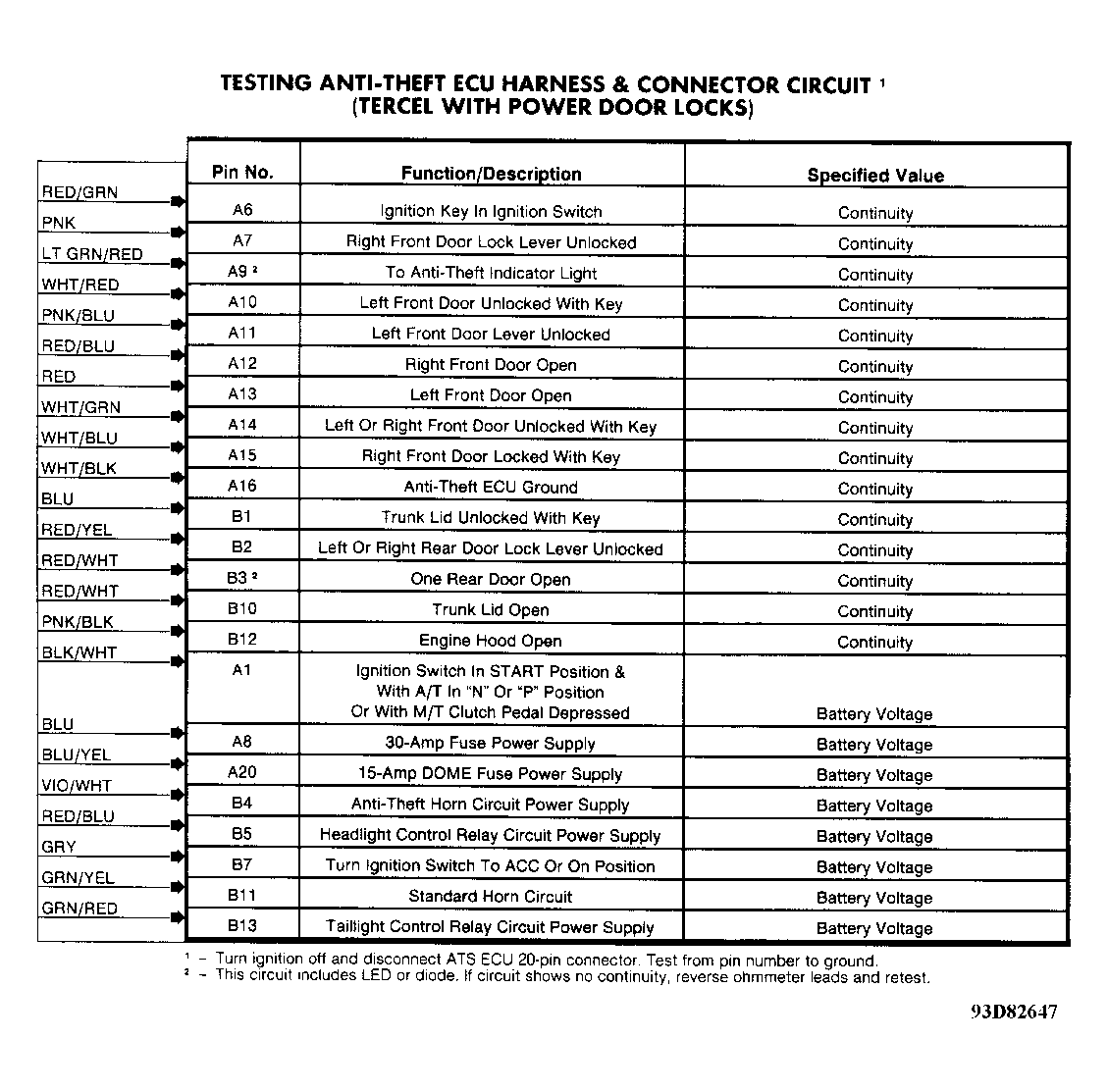

Fig 5: Testing Anti-Theft ECU Harness & Connector Ckt. (W/ Power Door Locks)
