Front Washer Switch Test

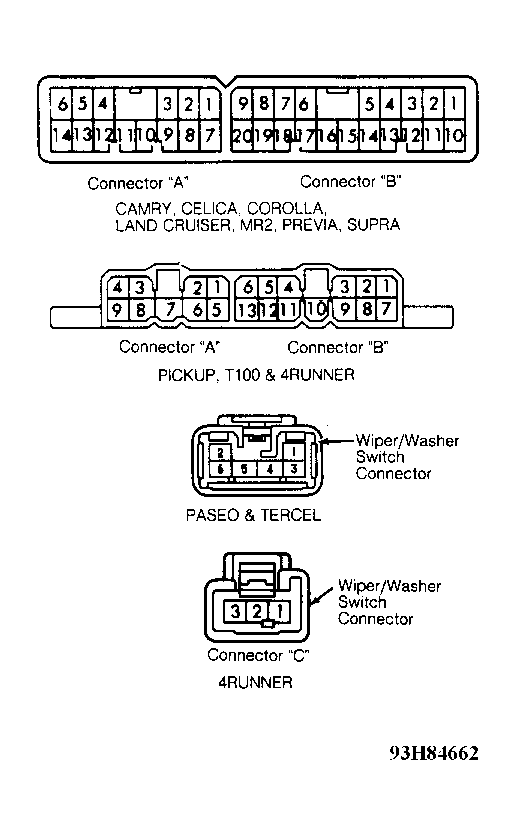

With washer switch in specified position, ensure continuity exists between terminals listed. See WASHER SWITCH CONTINUITY TEST table. See Figure. Replace complete wiper switch assembly if continuity is not as specified.
WASHER SWITCH CONTINUITY TEST
| Switch Position | (1) Terminals | Continuity | |||
|---|---|---|---|---|---|
| Paseo & Tercel | |||||
| Off | 1, 2, 3, 4, 5 & 6 | No | |||
| On | 3 & 4 | Yes | |||
| Pickup, T100 | |||||
| & 4Runner | |||||
| Off | A1 & A2 | No | |||
| On | A1 & A2 | Yes | |||
| All Others | |||||
| Off | B8 & B16 | No | |||
| On | B8 & B16 | Yes | |||
|
|||||
