Code 22/Test 5 - Coolant Temperature Sensor Signal

WARNING: This page is about a different car, the 1993 Toyota Celica. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Water temperature sensor is also referred to as coolant temperature sensor.

CODE 22/TEST 5 - CTS SENSOR SIGNAL TROUBLE

Terminals	Trouble	Condition	STD Voltage
THW - E2	No Voltage	Ignition Switch ON Coolant Temp. 80°C (176°F)	0.1-1.1V

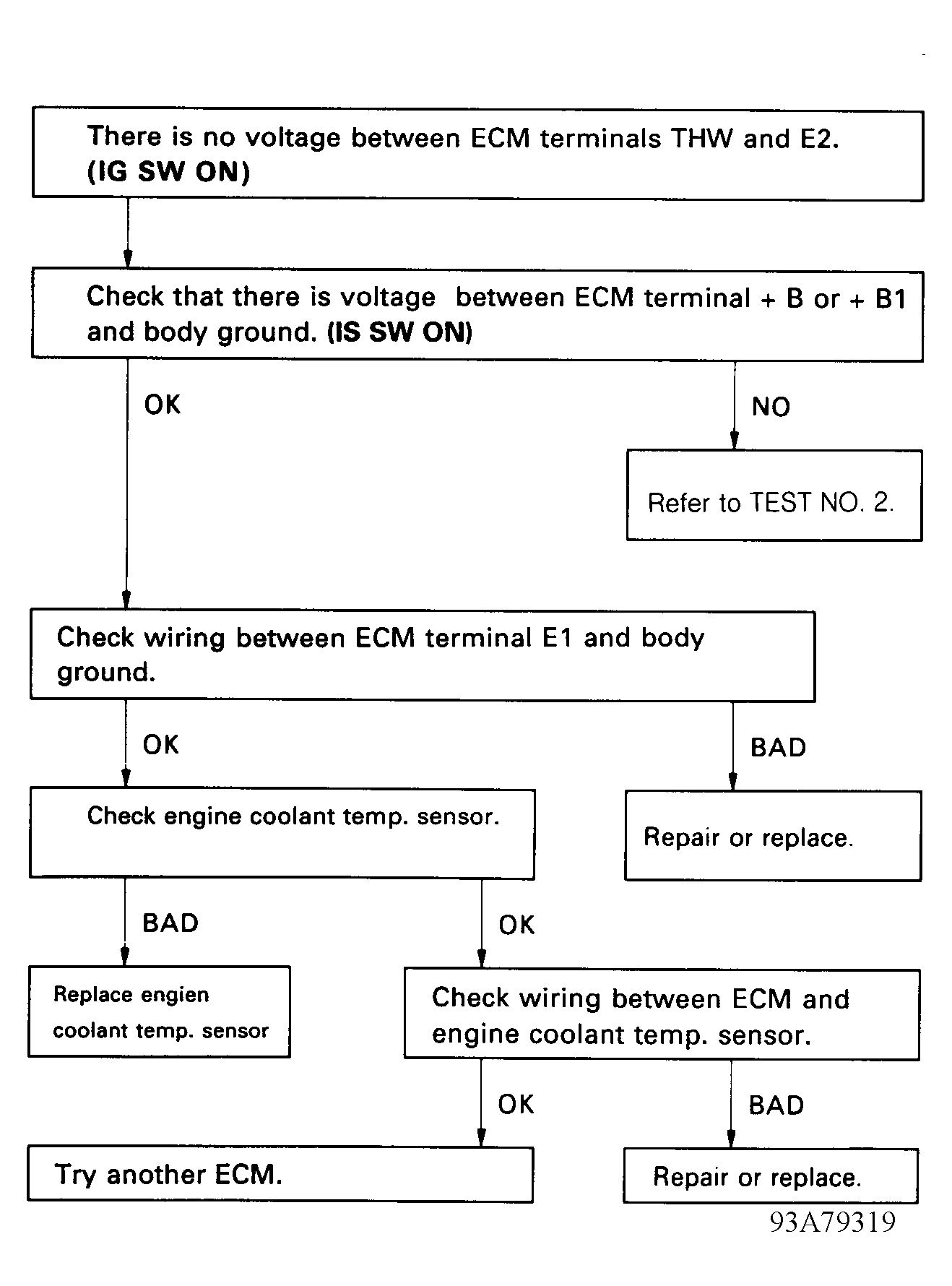

Fig 1: Code /Test No. 5 Flow Chart Coolant Temperature Sensor Signal

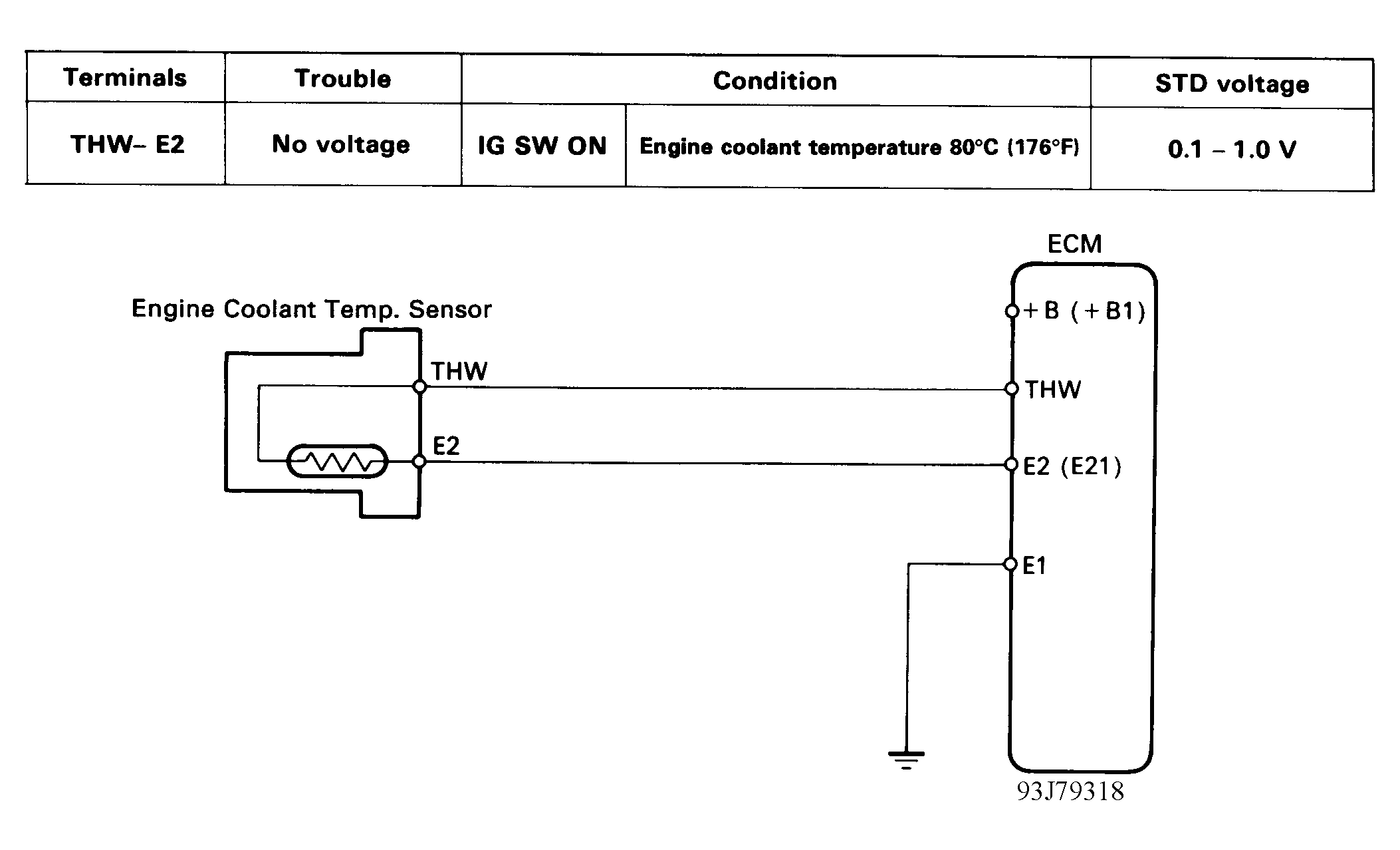

Fig 2: Code 22/Test No. 5 Schematic Coolant Temperature Sensor Signal
