Code 41/Test 9 - Throttle Position Sensor Signal (5S-FE)

WARNING: This page is about a different car, the 1993 Toyota Celica. However, it is still accessible from the selected car via links, so may be relevant.

CODE 41/TEST 8-TPS SENSOR SIGNAL TROUBLE

Terminals	Trouble	Condition	STD Voltage
IDL - E2	No Voltage	IG SW ON-Throttle Valve OPEN	8 - 14V
VC - E2		IG SW ON-	4.5-5.5V
VTA - E2		IG SW ON-Throttle Valve SHUT (Throttle Opener Must Be Canceled First)	0.8-1.2V
		IG SW ON-Throttle Valve OPEN	3.2-4.2V

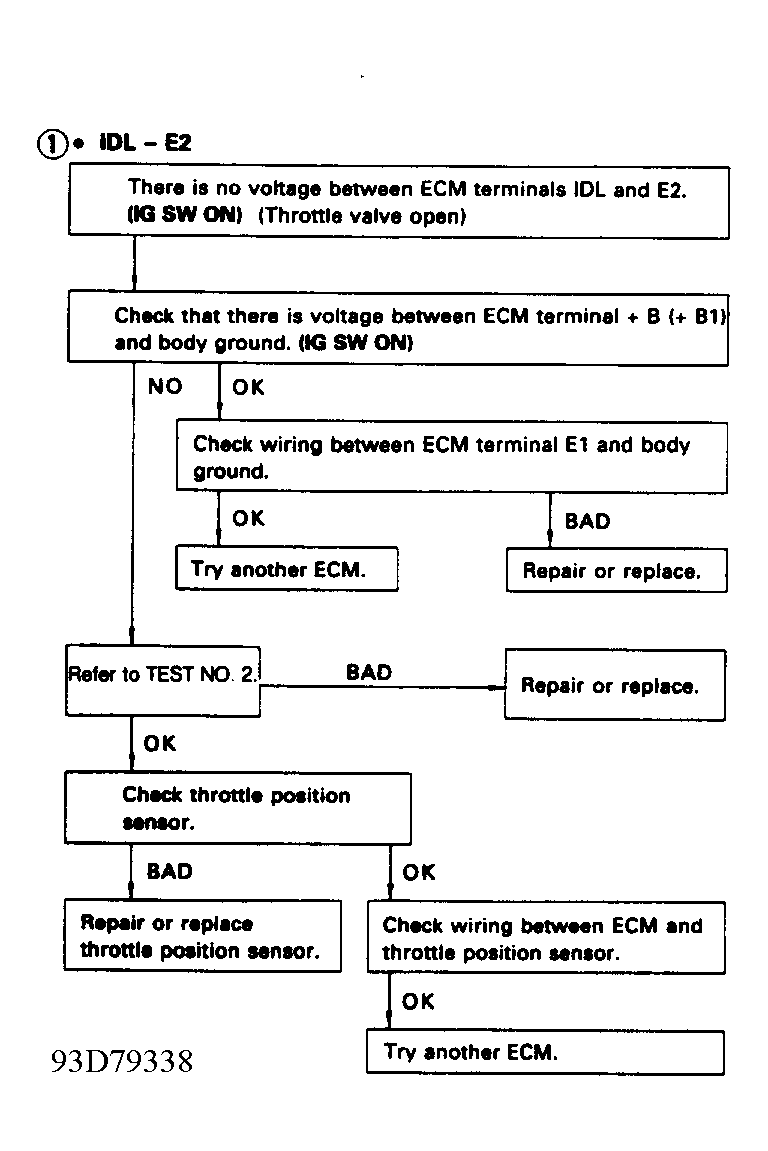

Fig 1: Code 41/Test No. 9 Flow Chart Terms. IDL - E2 (5S-FE) Throttle Position Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

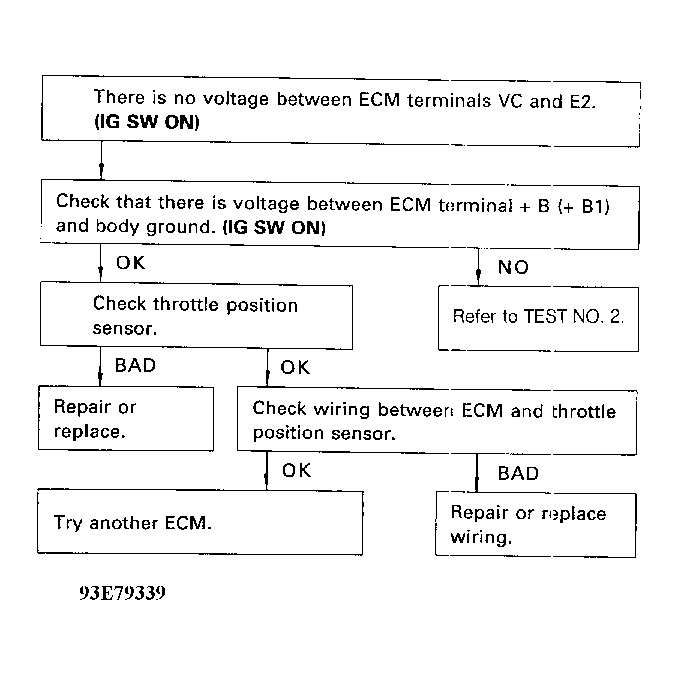

Fig 2: Code 41/Test No. 9 Flow Chart Terms. VC - E2 (5S-FE) Throttle Position Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

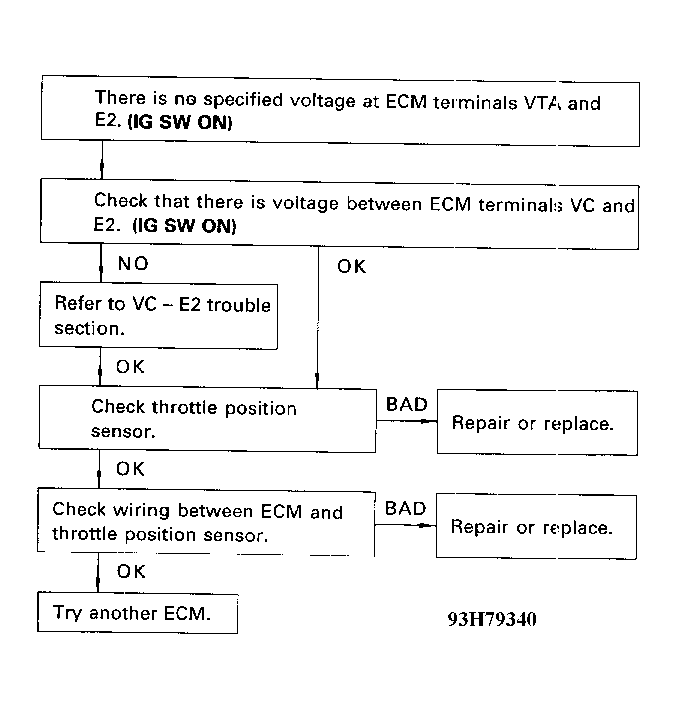

Fig 3: Code 41/Test No. 9 Flow Chart Terms. VTA - E2 (5S-FE) Throttle Position Sensor Signal

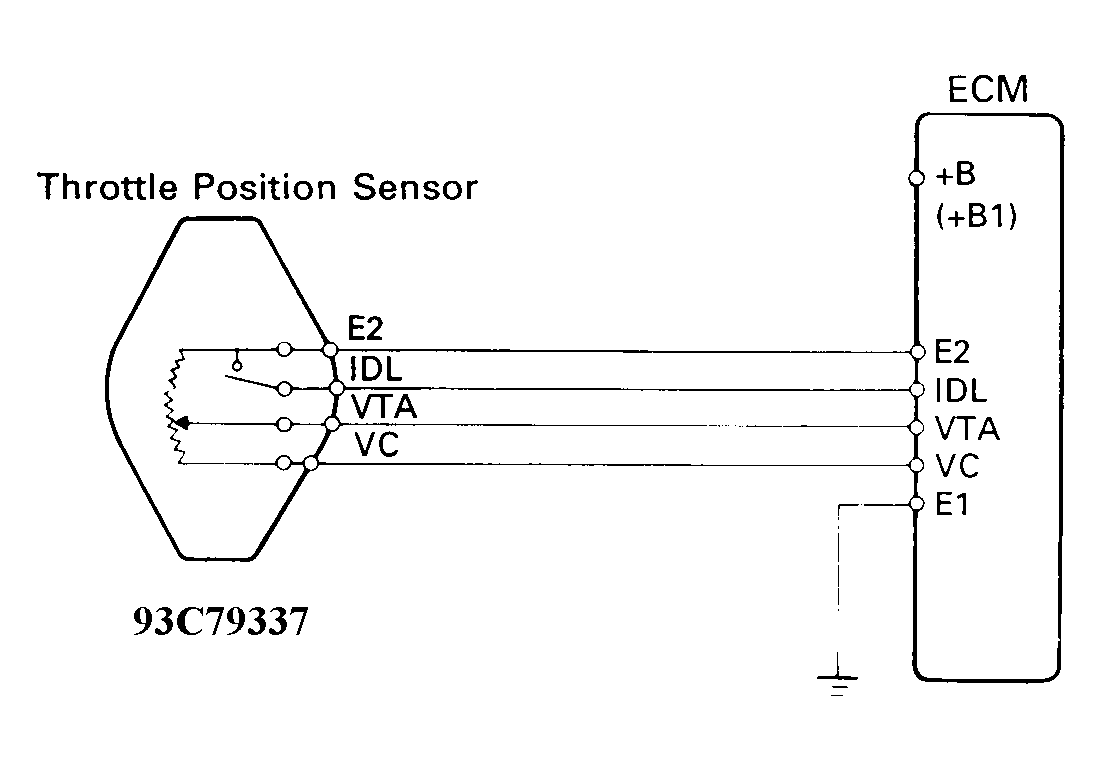

Fig 4: Code 41/Test No. 9 Schematic (5S-FE) Throttle Position Sensor Signal
