Probable Causes:

WARNING: This page is about a different car, the 1993 Toyota Celica. However, it is still accessible from the selected car via links, so may be relevant.

To check throttle position sensor signal, see Code 41.

To check A/C switch signal, use the following procedure.

CODE 51/TEST 11-SWITCH SIGNAL TROUBLE

Terminal Trouble Condition STD Voltage
A/C-E1 No Voltage Air Conditioning ON 8-14V

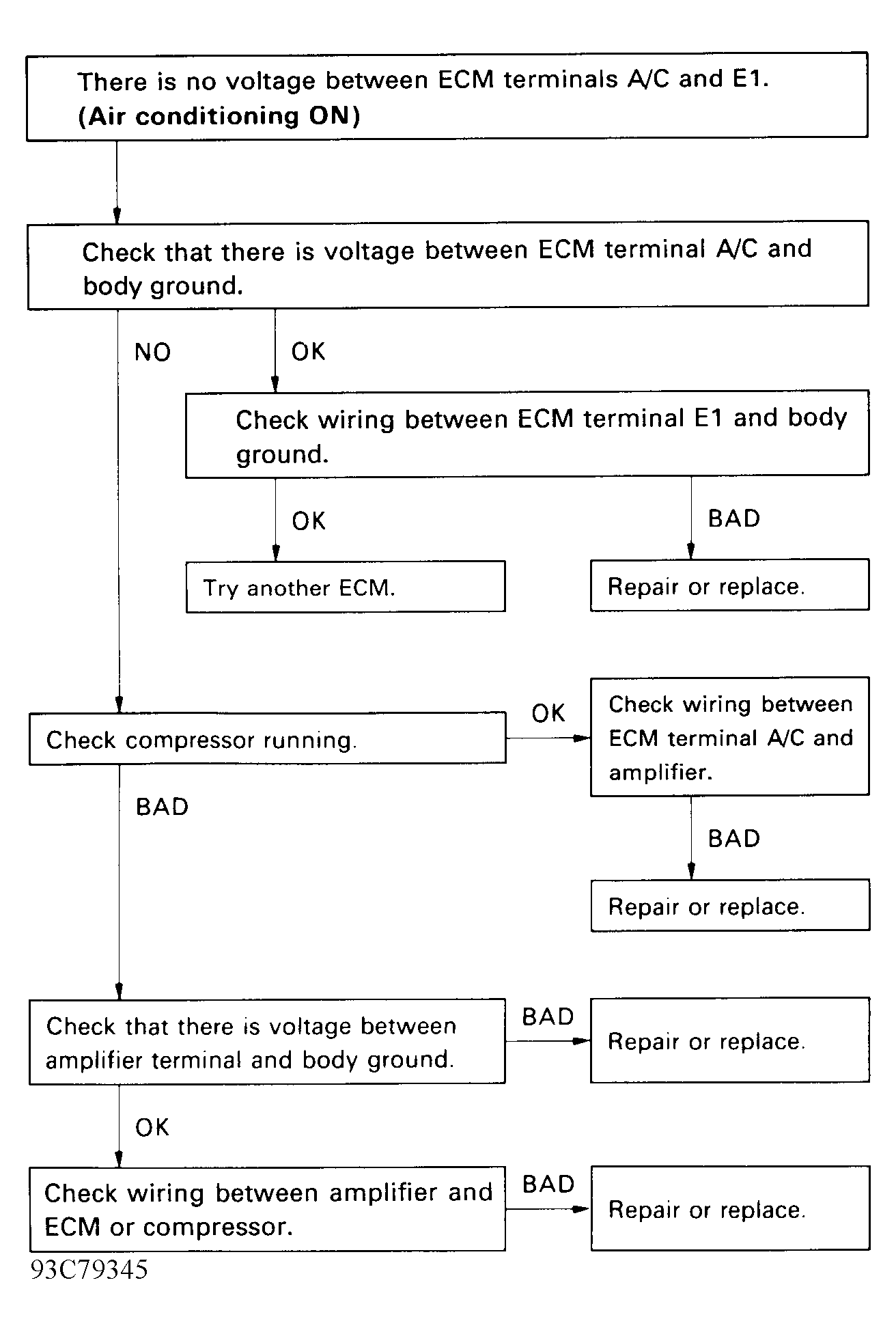

Fig 1: Code 51/Test No. 11 Flow Chart - Switch Signal
G93C79345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Code 51/Test No. 11 Schematic - Switch Signal
G93B79344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
