ECM Terminal Identification

WARNING: This page is about a different car, the 1993 Toyota Celica. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Perform all voltage measurements with ECM harness connector installed. Use a high-impedance DVOM (10,000-ohm minimum). Verify battery voltage is greater than 11 volts.

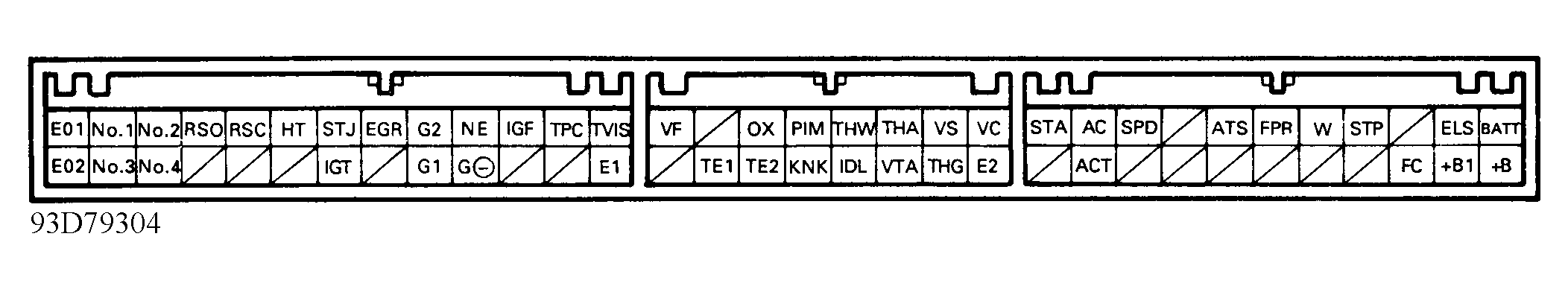

Fig 1: ECM Terminal ID (3S-GTE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

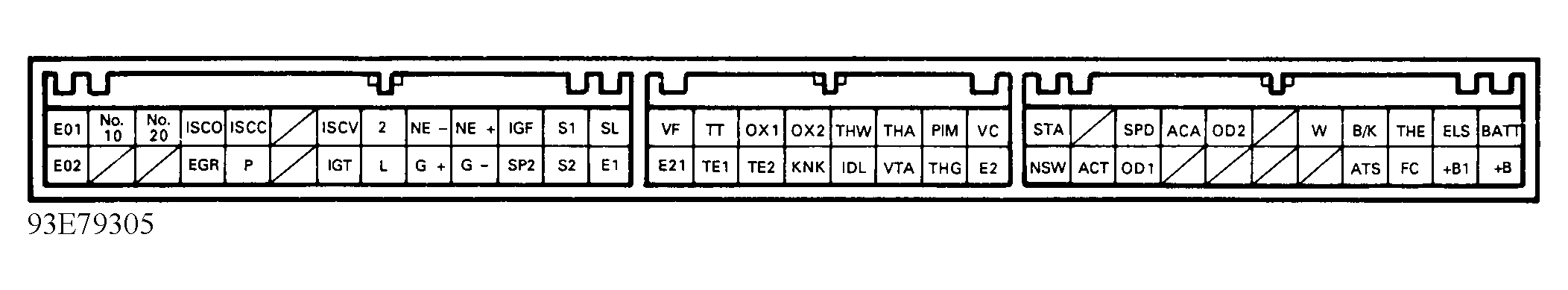

Fig 2: ECM Terminal ID (4A-FE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: ECM Terminal ID (5S-FE W/ECT)

Fig 4: ECM Terminal ID (5S-FE W/O ECT)
