TEST 1-ECM POWER SOURCE TROUBLE

Terminals	Trouble	Condition	STD Voltage
BATT - E1	No Voltage	All	10-14V

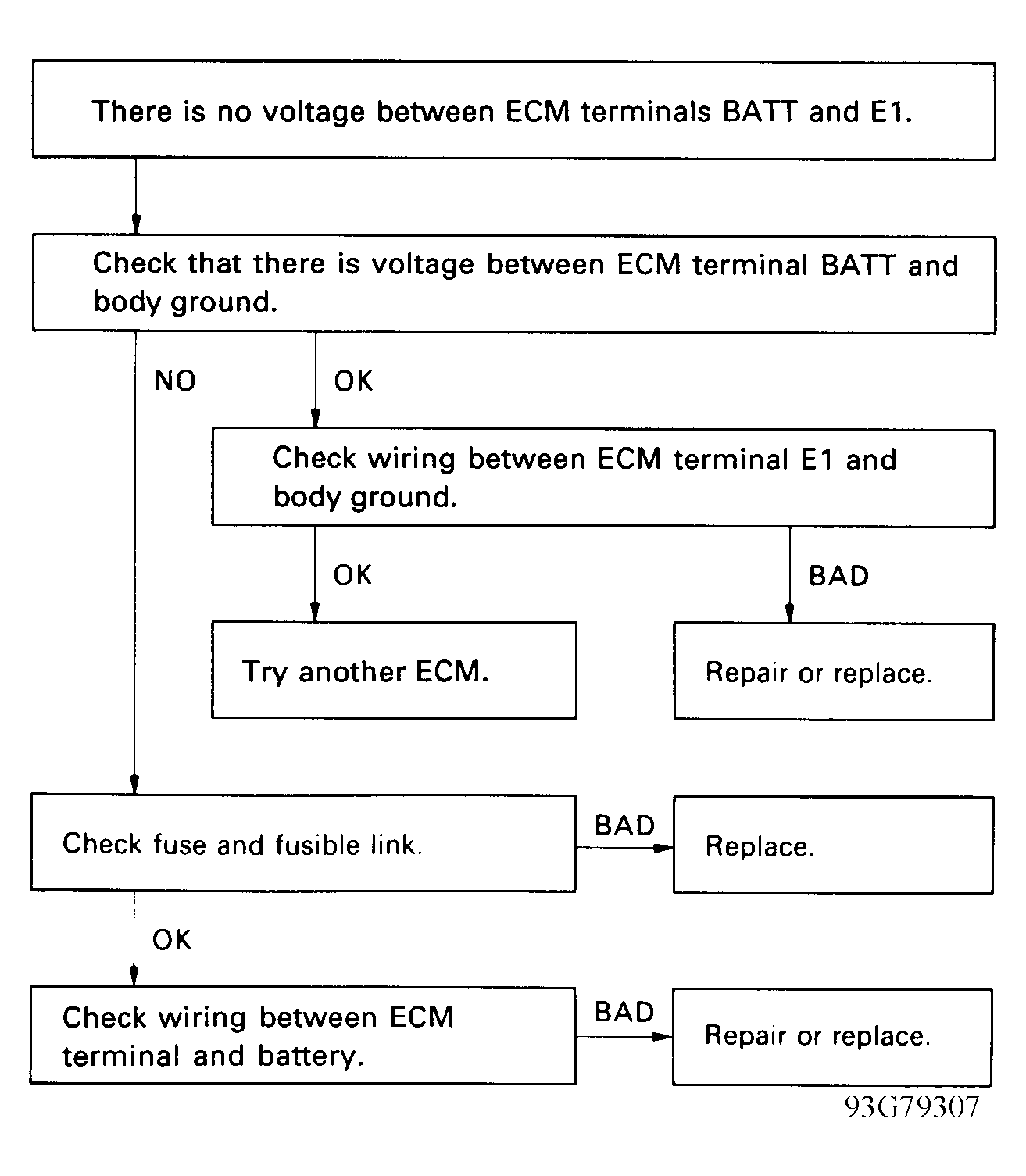

Fig 1: Test No. 1 Flow Chart - ECM Power Source

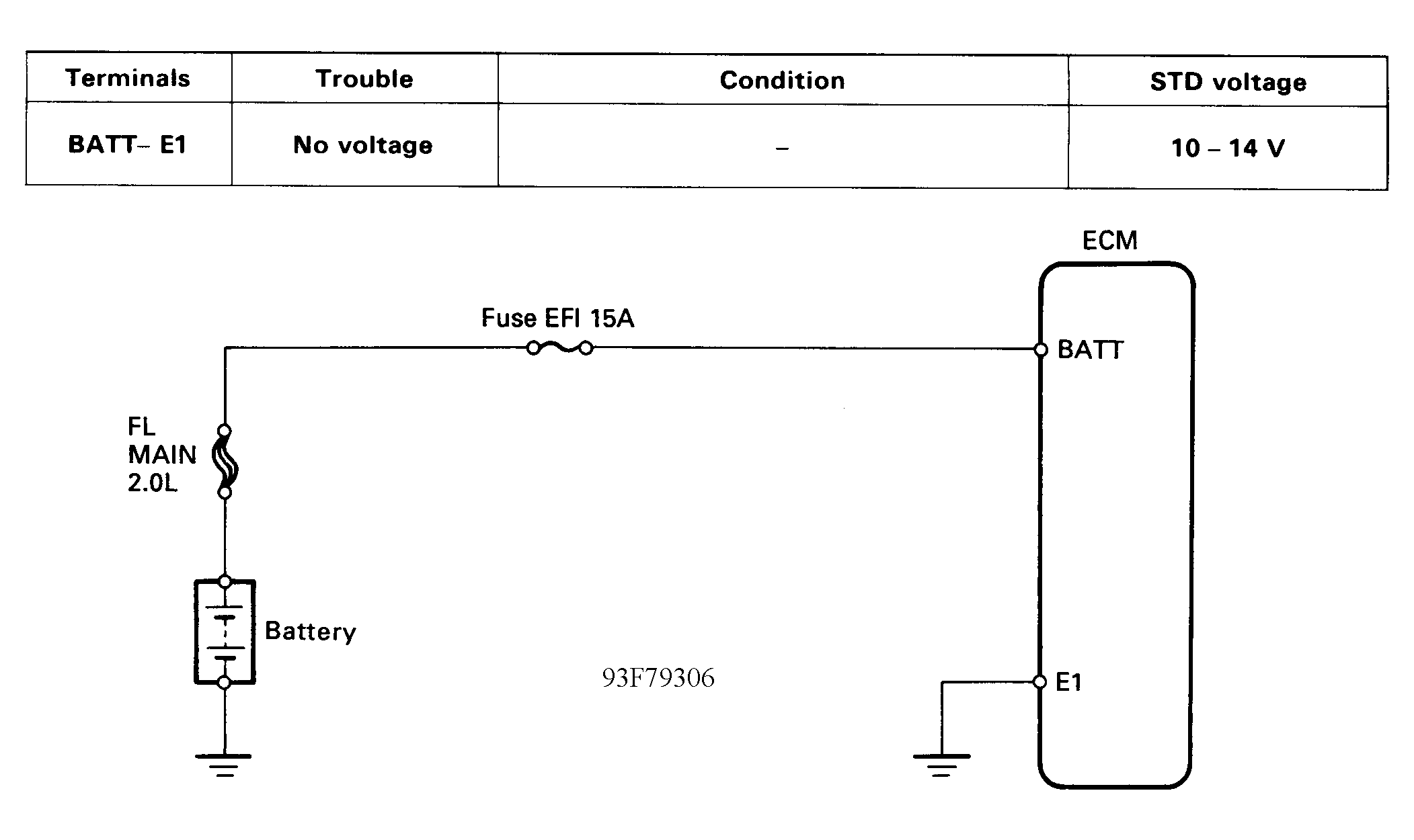

Fig 2: Test No. 1 Schematic - ECM Power Source
