Test 13 - Injector Circuit

WARNING: This page is about a different car, the 1993 Toyota Celica. However, it is still accessible from the selected car via links, so may be relevant.

TEST 13-INJECTOR CIRCUIT TROUBLE

Terminal	Trouble	Condition	STD Voltage
No.1,2,3 & 4 to E01 & E02	No Voltage	Ignition Switch ON	10-14V

TEST 13-INJECTOR CIRCUIT TROUBLE

Terminal	Trouble	Condition	STD Voltage
No.10 & No.20 to E01 & E02	No Voltage	Ignition Switch ON	10-14V

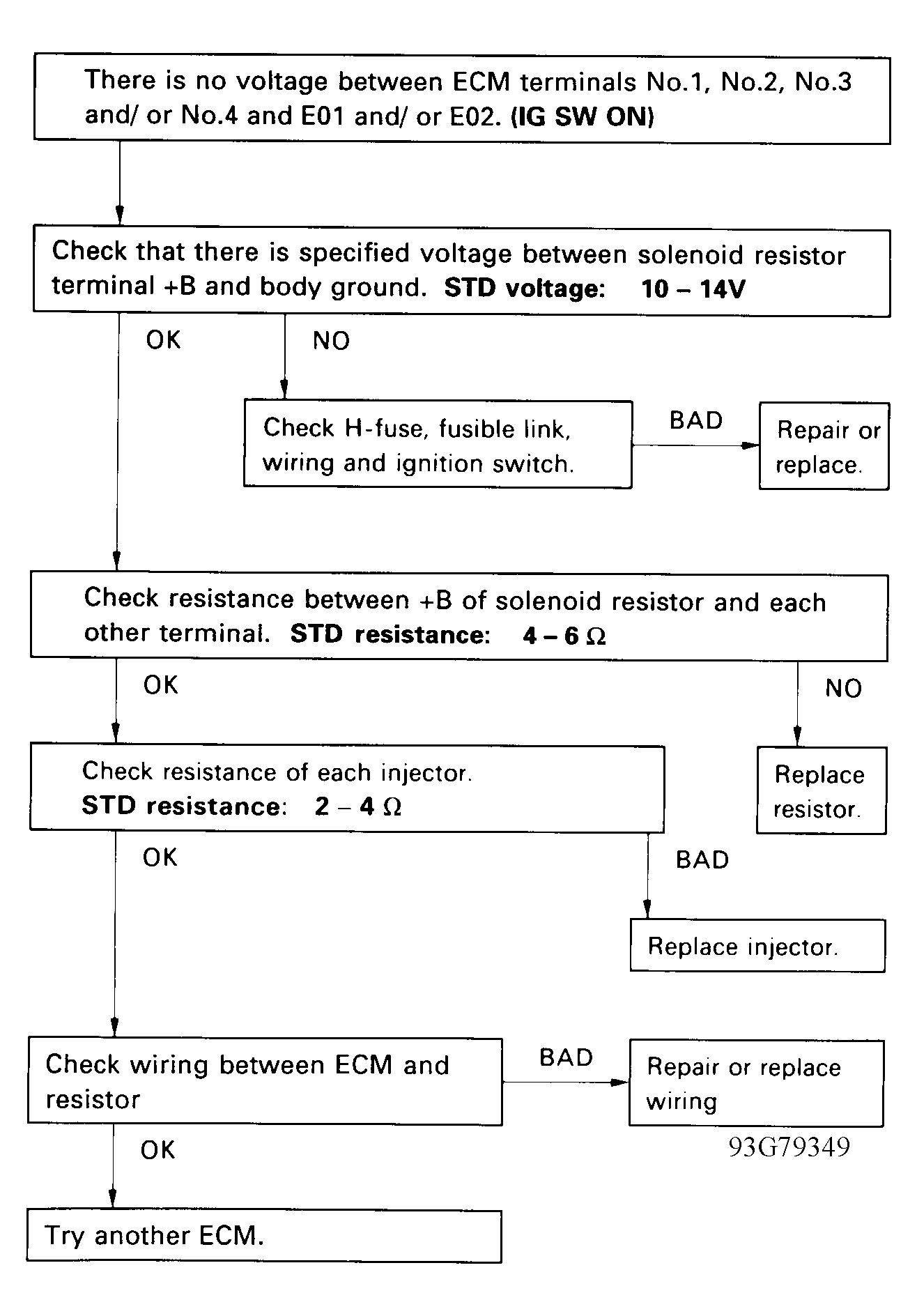

Fig 1: Test No. 13 Flow Chart (3S-GTE) Injector Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

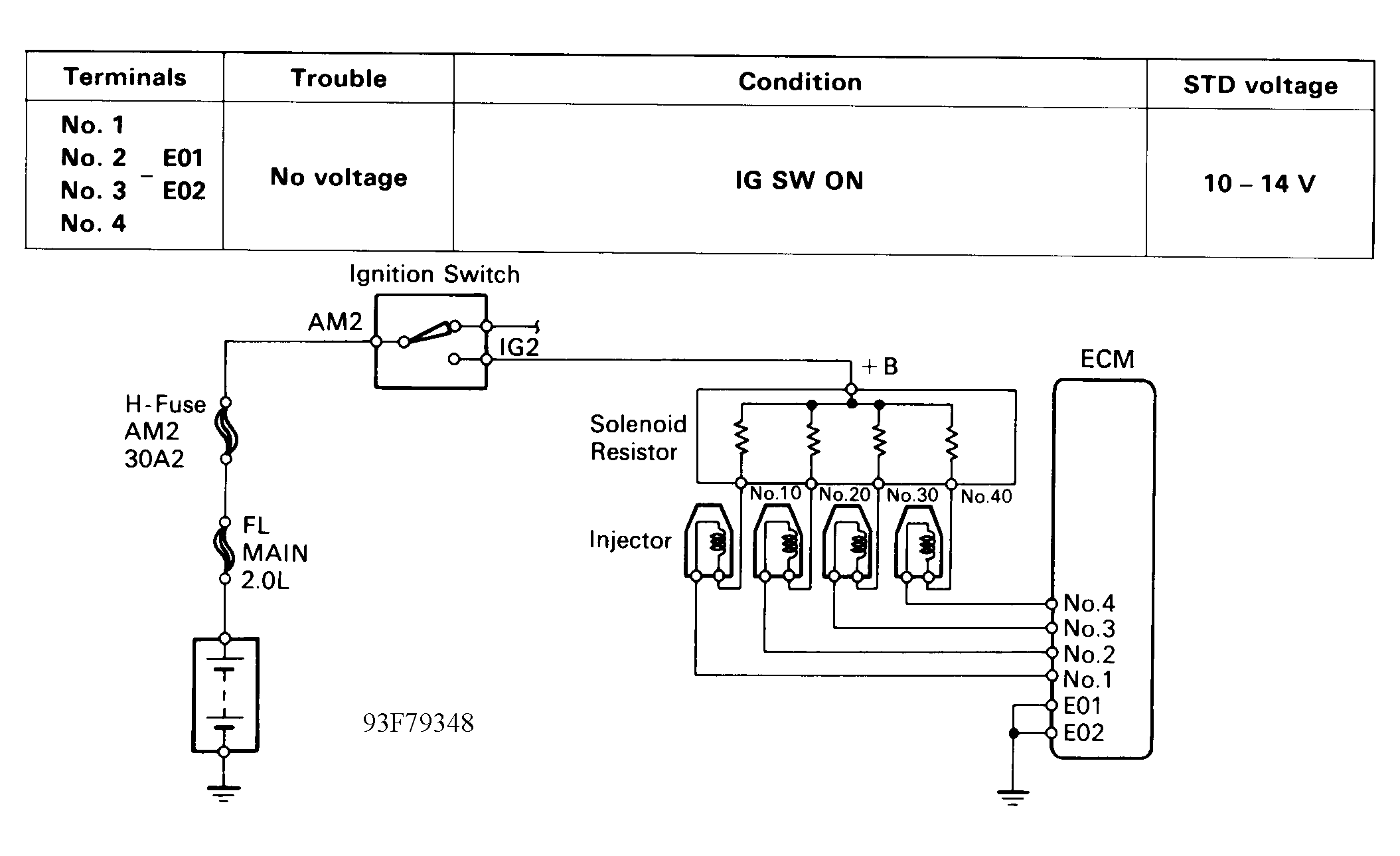

Fig 2: Test No. 13 Schematic (3S-GTE) Injector Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

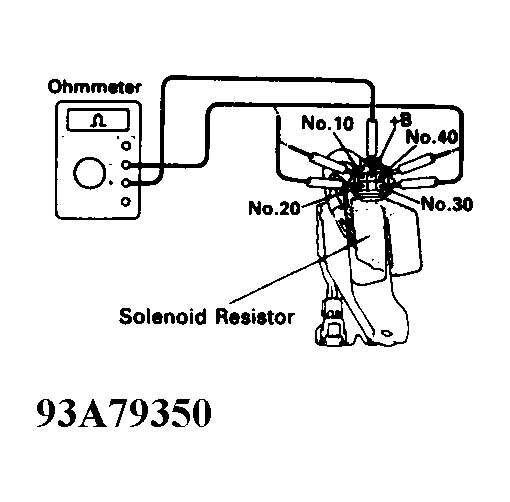

Fig 3: Test No. 13 Component Diagram (3S-GTE) Injector Circuit

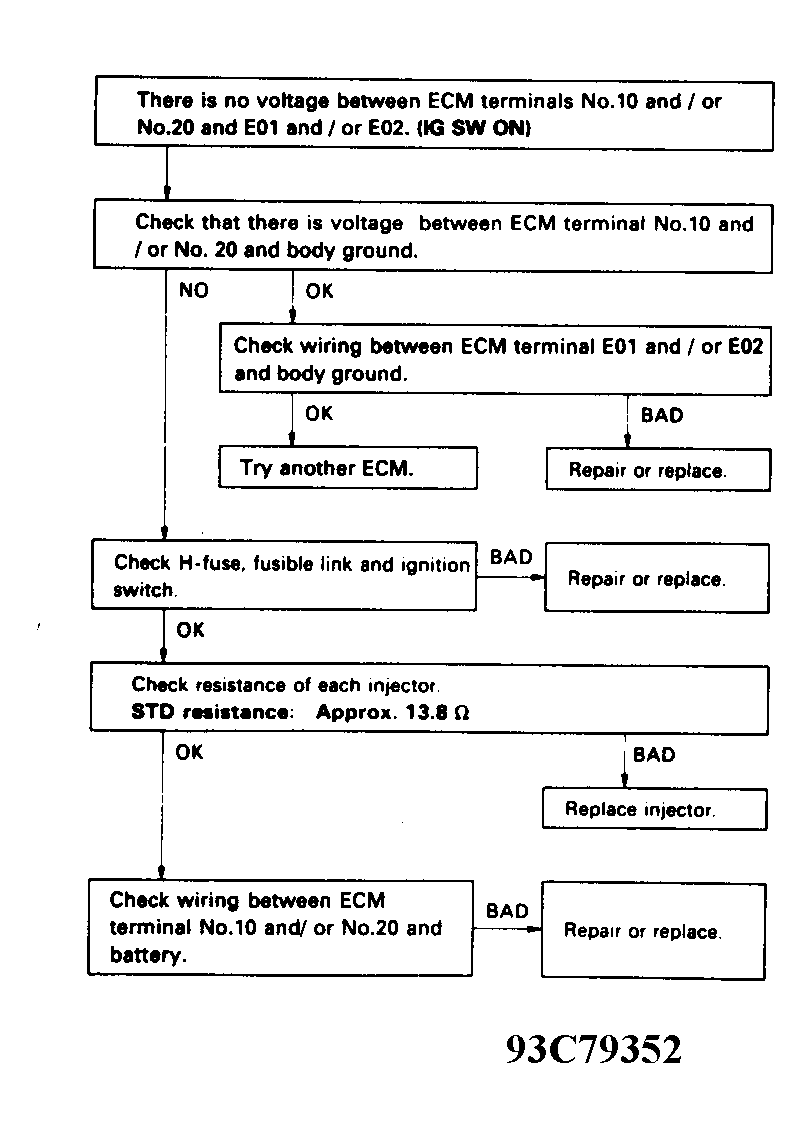

Fig 4: Test No. 13 Flow Chart (4A-FE & 5S-FE) Injector Circuit

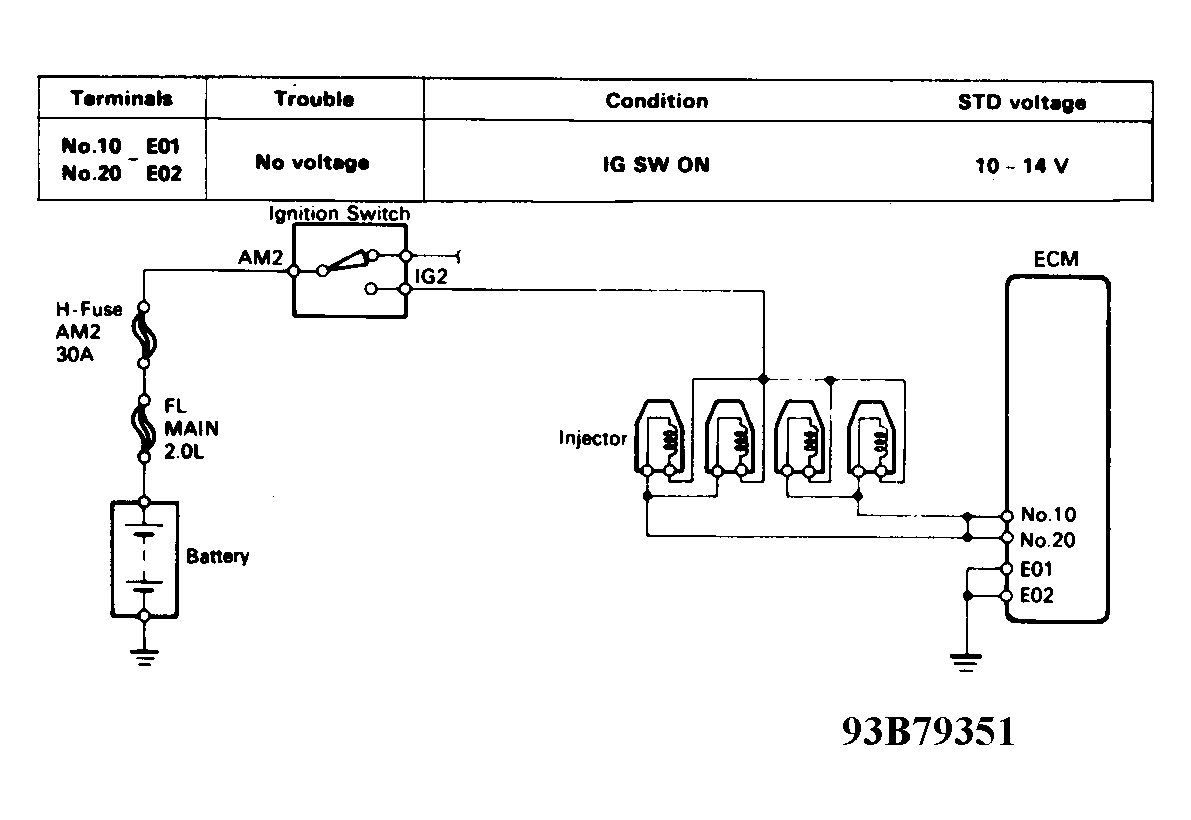

Fig 5: Test No. 13 Schematic (4A-FE & 5S-FE) Injector Circuit
