Test 14 - Idle Speed Control Circuit

WARNING: This page is about a different car, the 1993 Toyota Celica. However, it is still accessible from the selected car via links, so may be relevant.
TEST 14-IDLE SPEED CONTROL CIRCUIT TROUBLE

Terminal Trouble Condition STD Voltage
RSC-E1 No Voltage Ignition Switch ON 8-14V
RSO-E1
TEST 14-IDLE SPEED CONTROL CIRCUIT TROUBLE

Terminal Trouble Condition STD Voltage
ISCC-E1 No Voltage Ignition Switch ON 8-14V
ISCO-E1

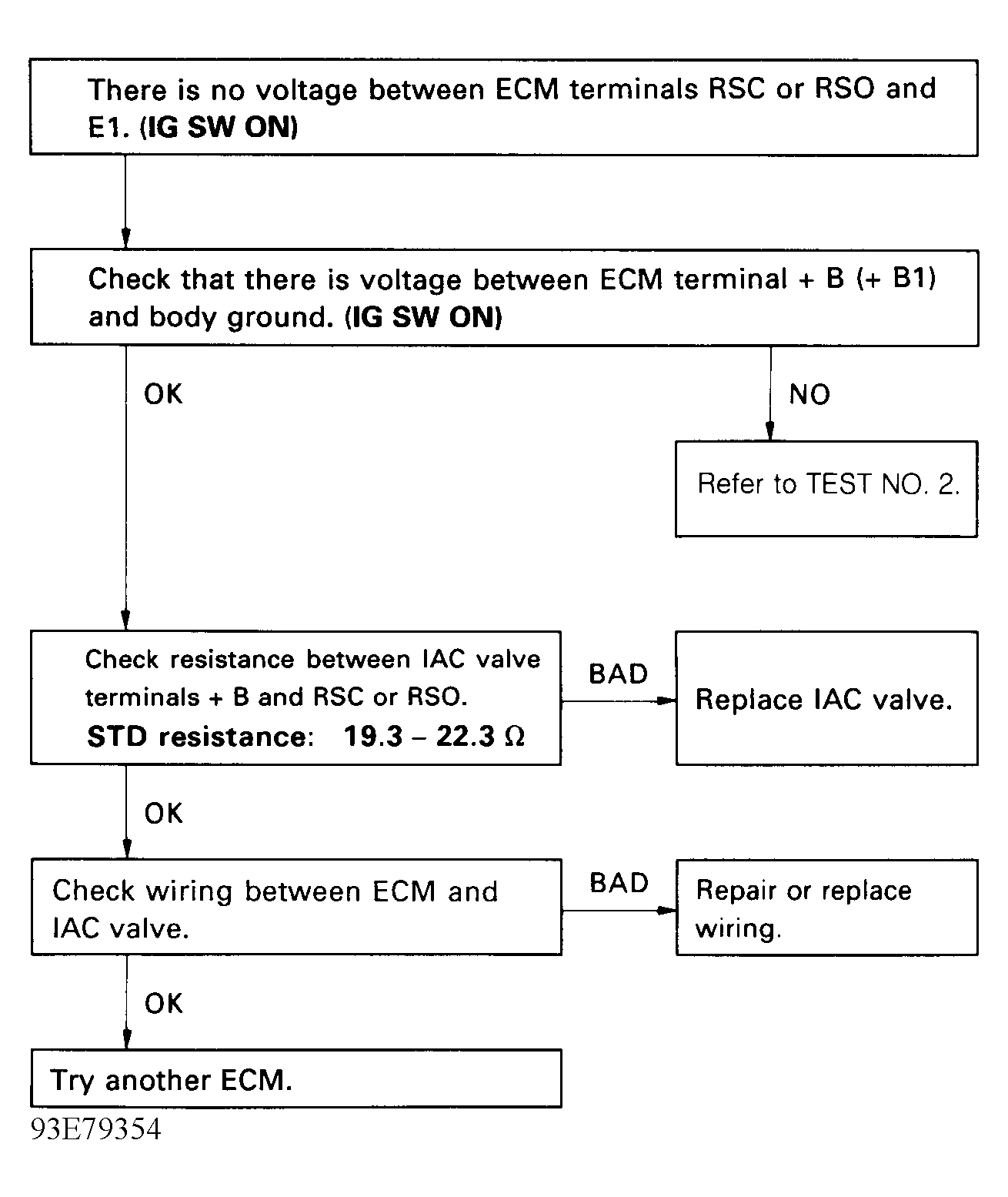

Fig 1: Test No. 14 Flow Chart (3S-GTE) Idle Speed Control Circuit
G93E79354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

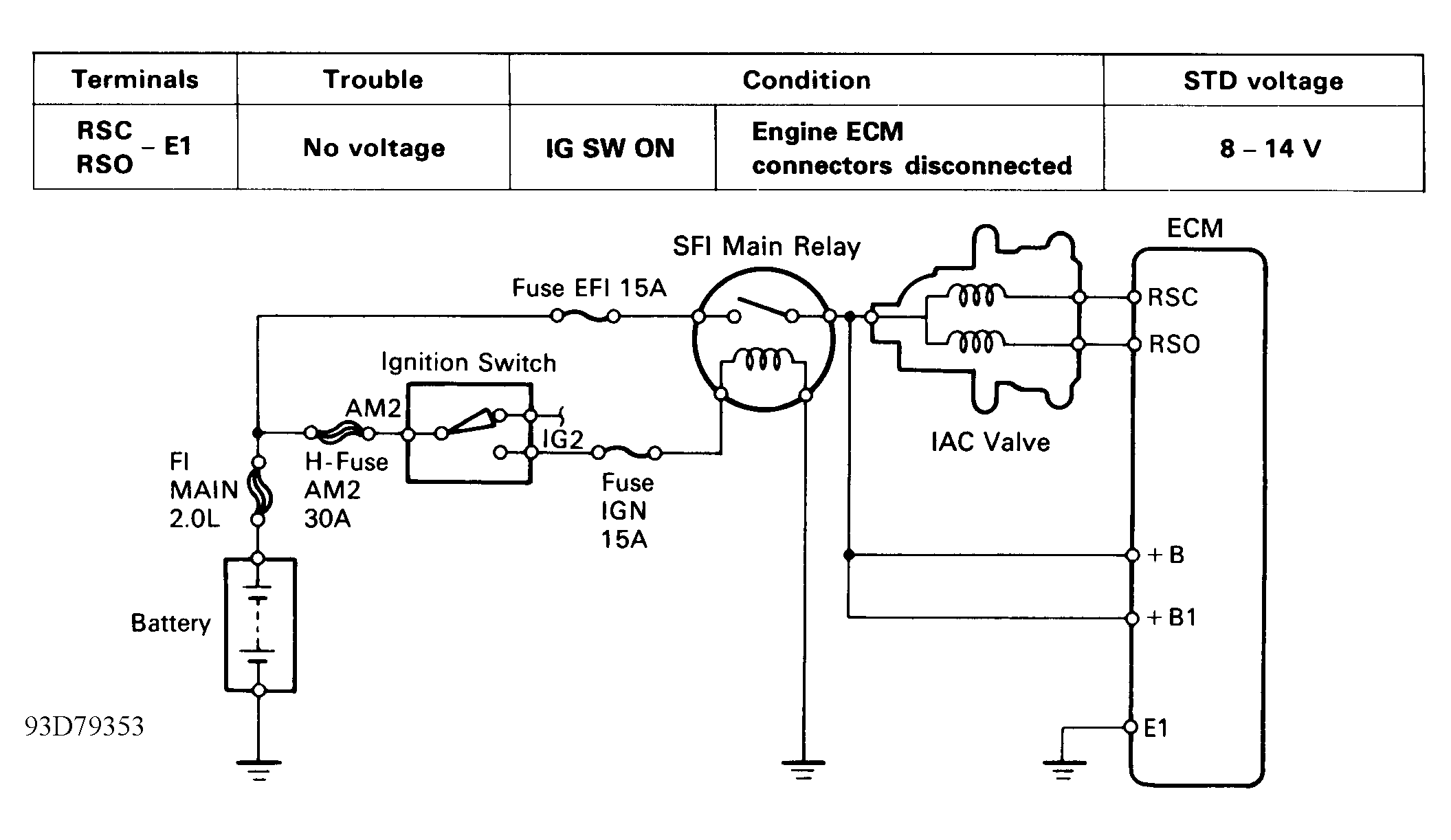

Fig 2: Test No. 14 Schematic (3S-GTE) Idle Speed Control Circuit
G93D79353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

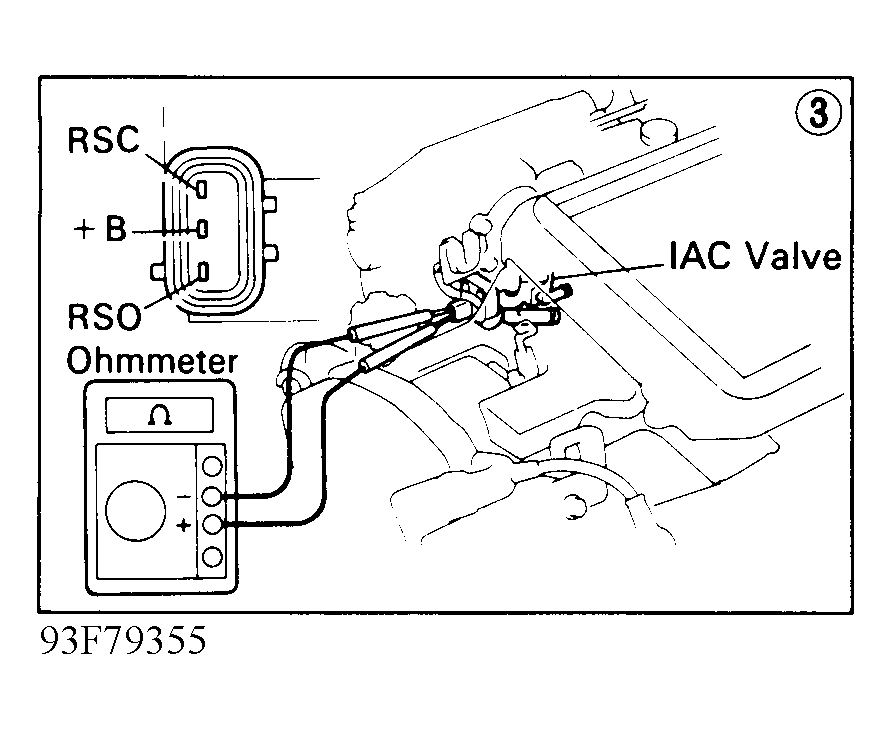

Fig 3: Test No. 14 Component Diagram (3S-GTE) Idle Speed Control Circuit
G93F79355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

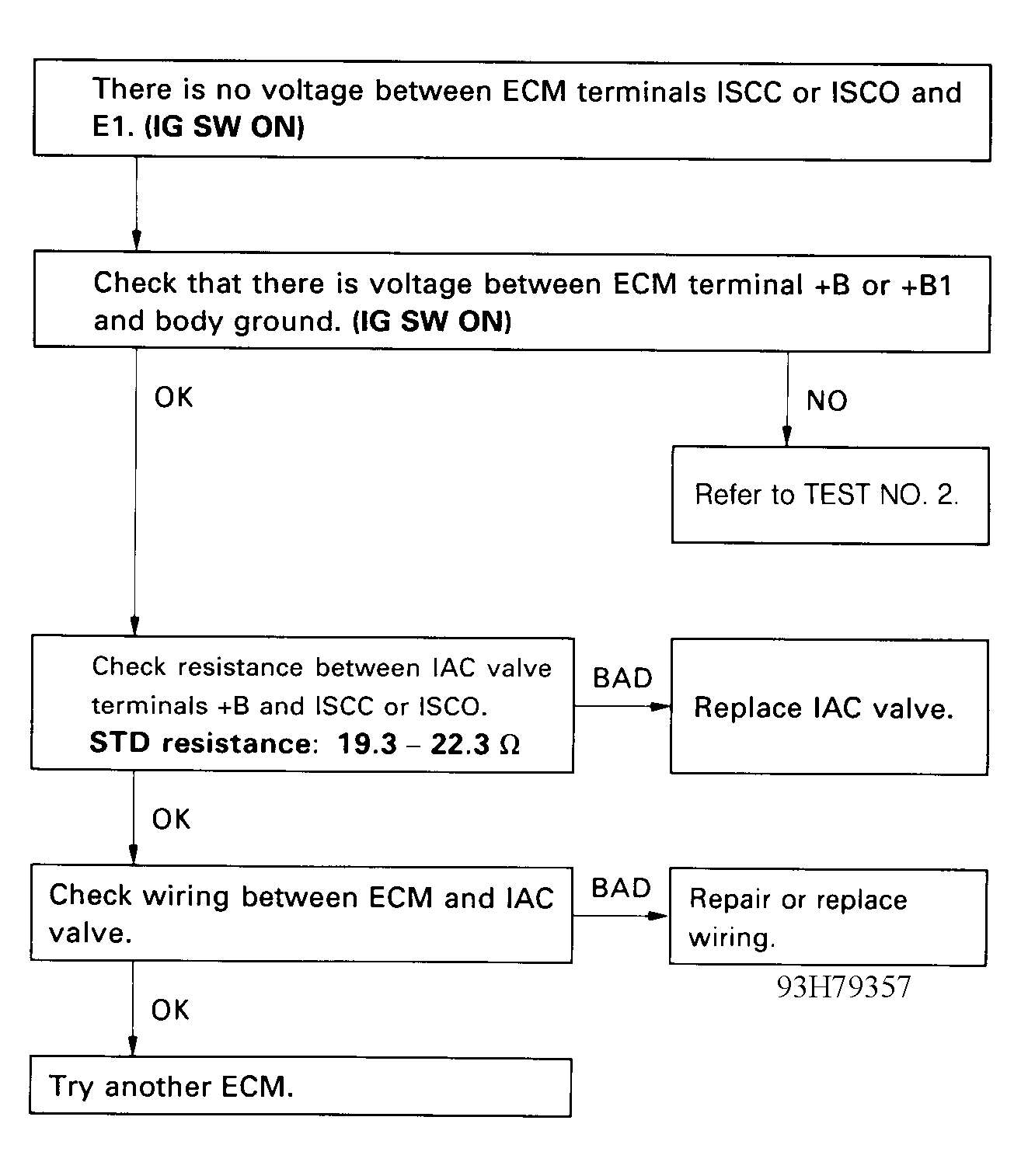

Fig 4: Test No. 14 Flow Chart (5S-FE) Idle Speed Control Circuit
G93H79357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

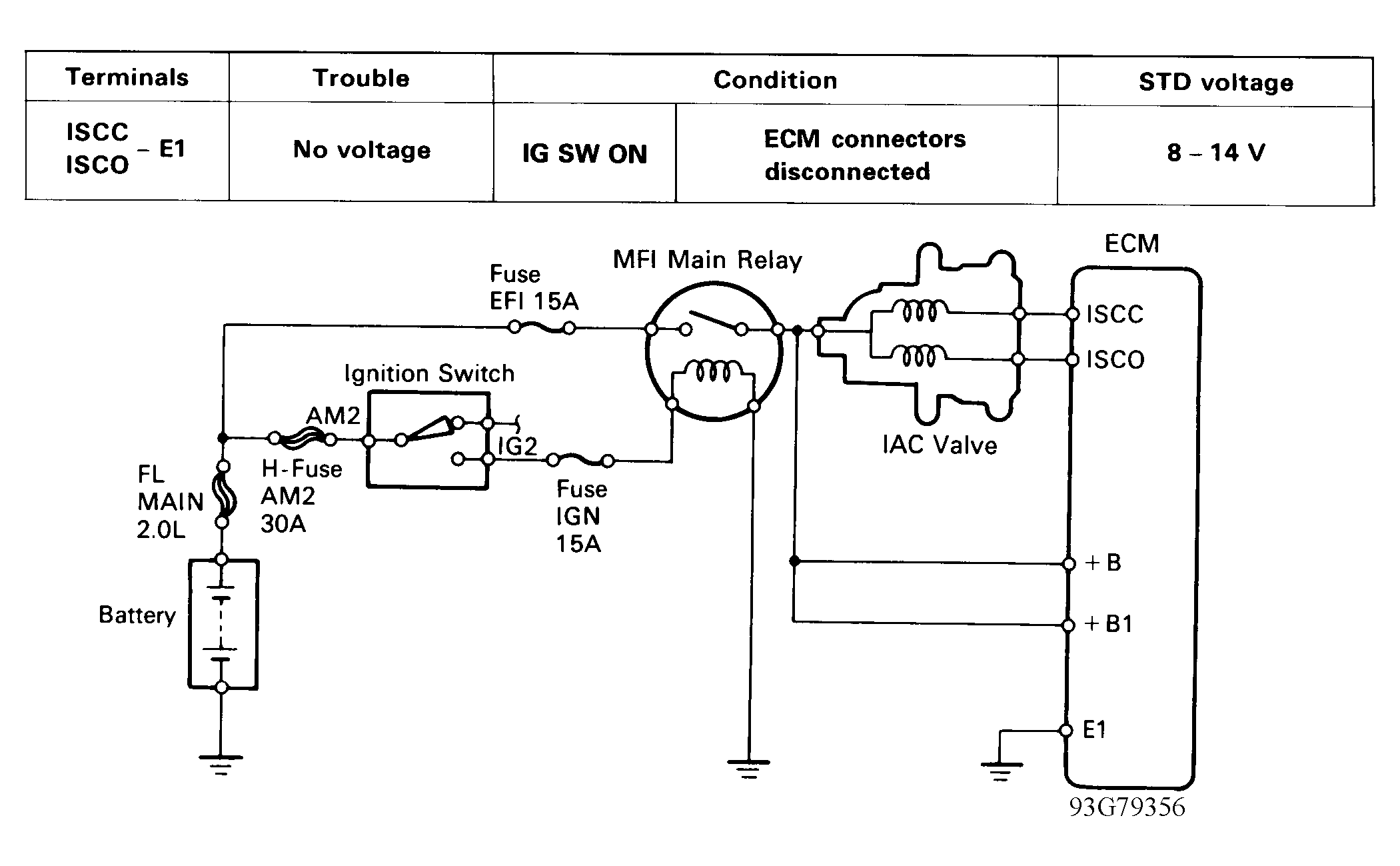

Fig 5: Test No. 14 Schematic (5S-FE) Idle Speed Control Circuit
G93G79356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

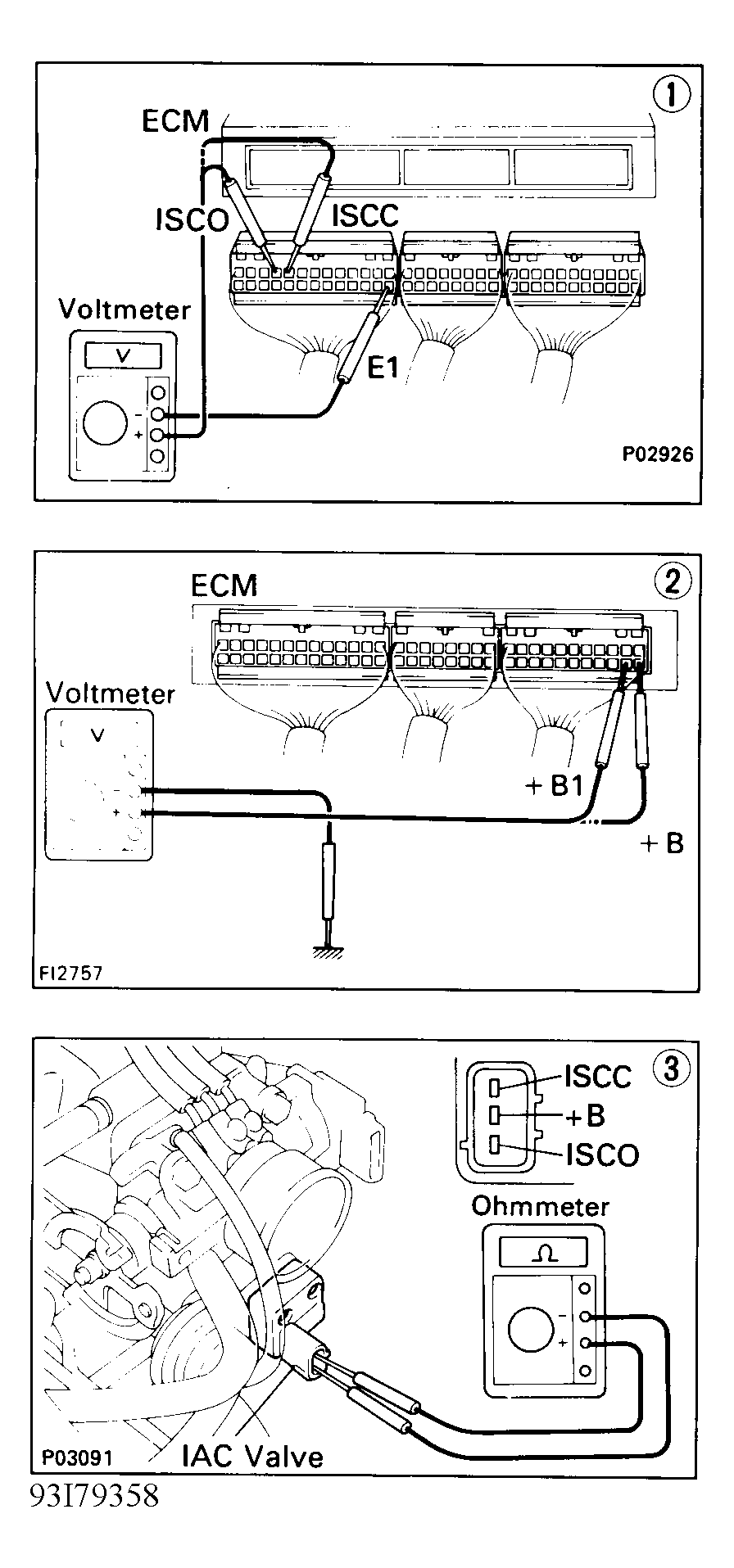

Fig 6: Test No. 14 Component Diagram (5S-FE) Idle Speed Control Circuit
G93I79358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
