Test 15 - Check Engine Light Circuit

WARNING: This page is about a different car, the 1993 Toyota Celica. However, it is still accessible from the selected car via links, so may be relevant.

TEST 14-CHECK ENGINE LIGHT CIRCUIT TROUBLE

Terminal	Trouble	Condition	STD Voltage
W-E1	No Voltage	No Trouble (Check Engine Light OFF) & Engine Running	10-14V

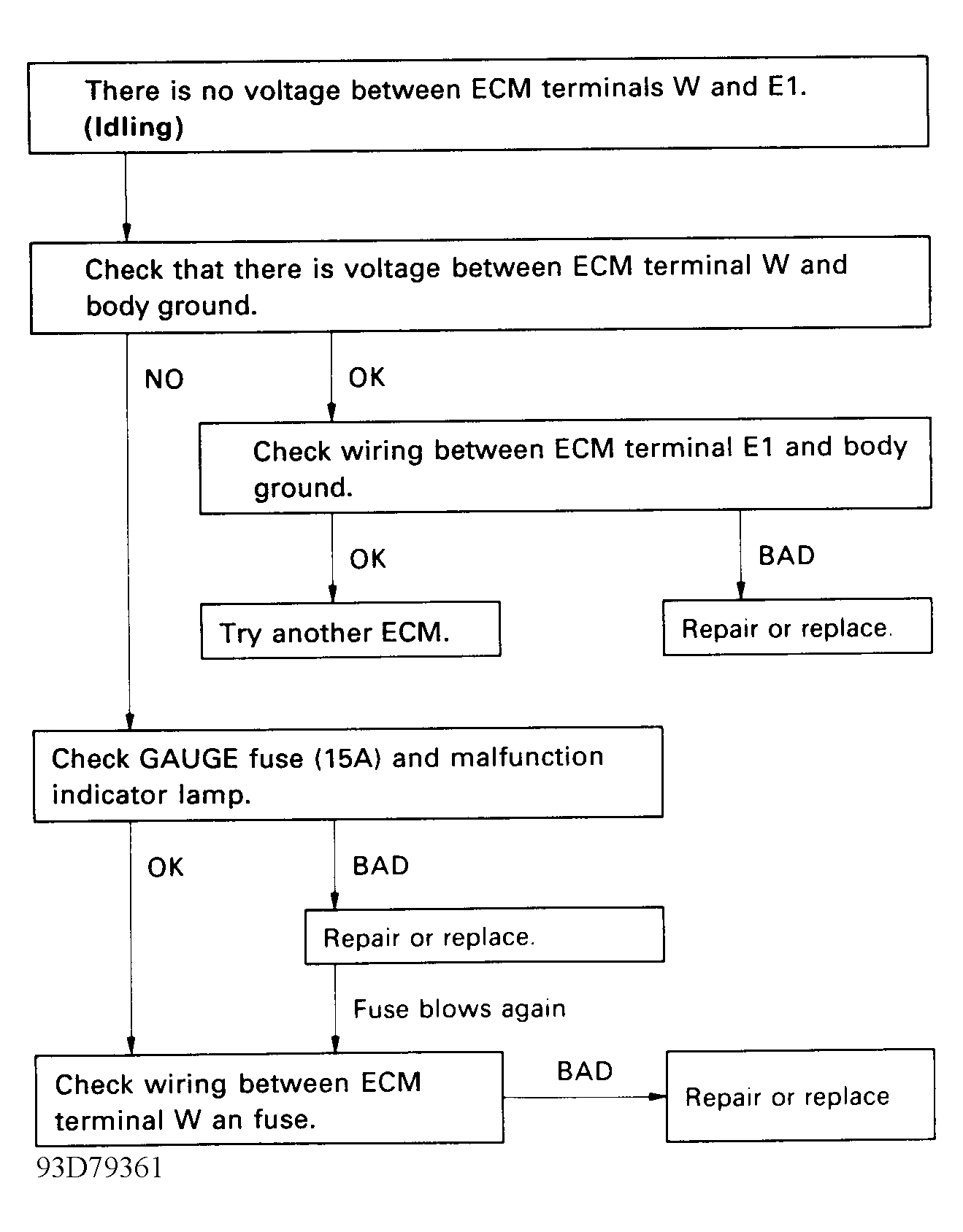

Fig 1: Test No. 15 Flow Chart Check Engine Light Circuit

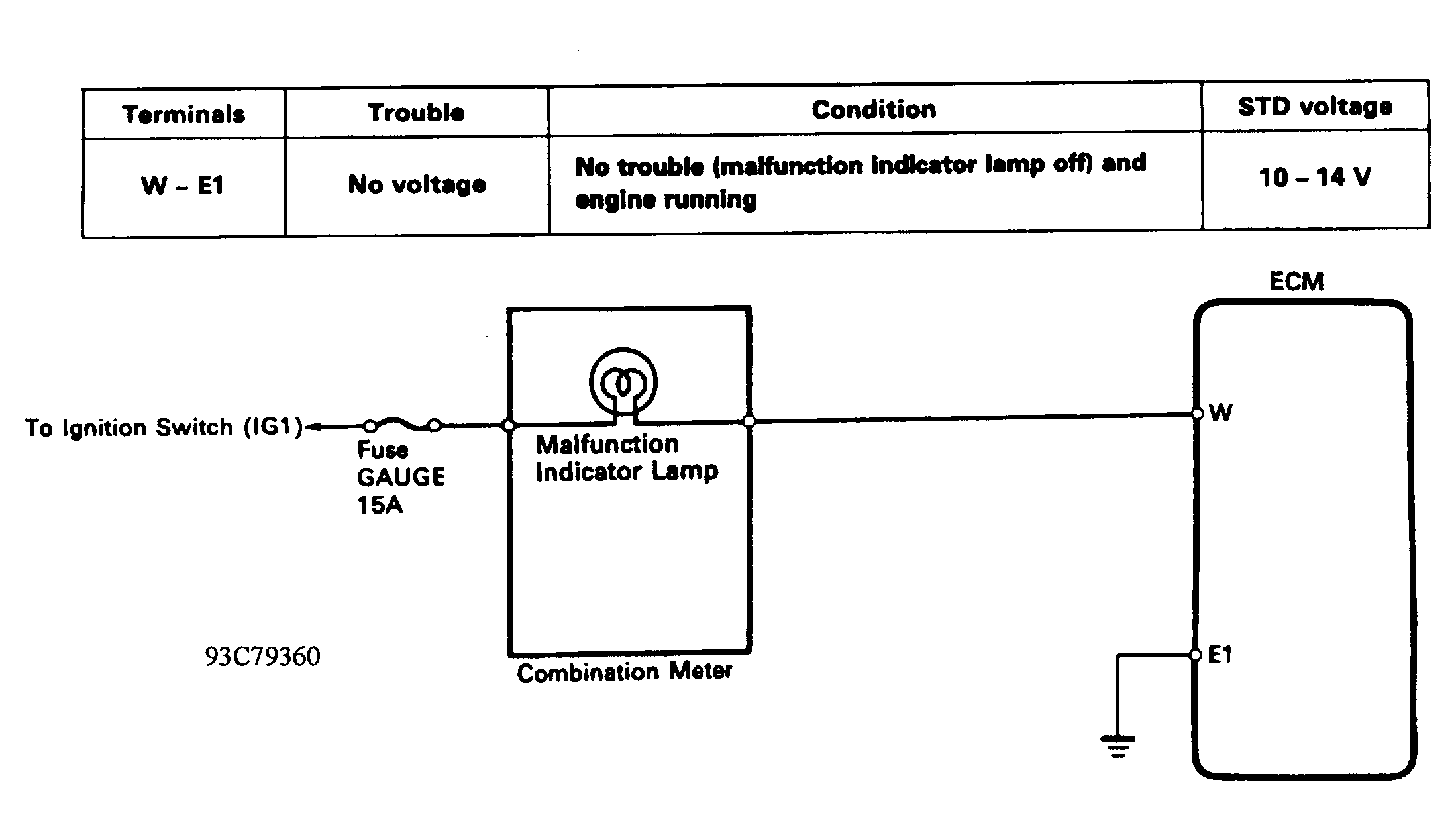

Fig 2: Test No. 15 Schematic Check Engine Light Circuit
