Cold Start Injector Time Switch (Turbo)

WARNING: This page is about a different car, the 1993 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

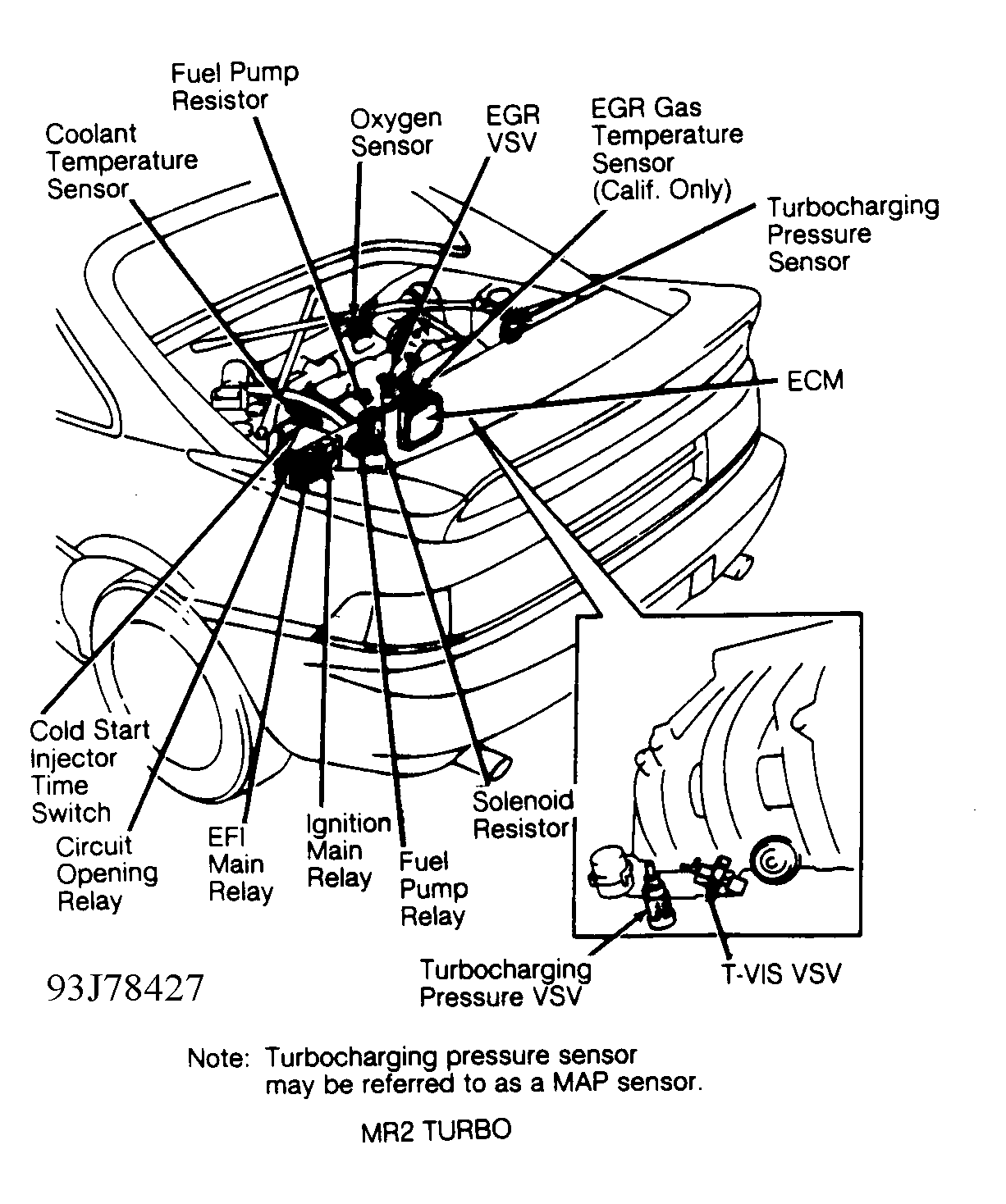

Cold start injector time switch determines cold start injector on time for cold engine starting. Cold start injector ground circuit is controlled by cold start injector time switch, located in an engine coolant passage. See Figure & 2.
